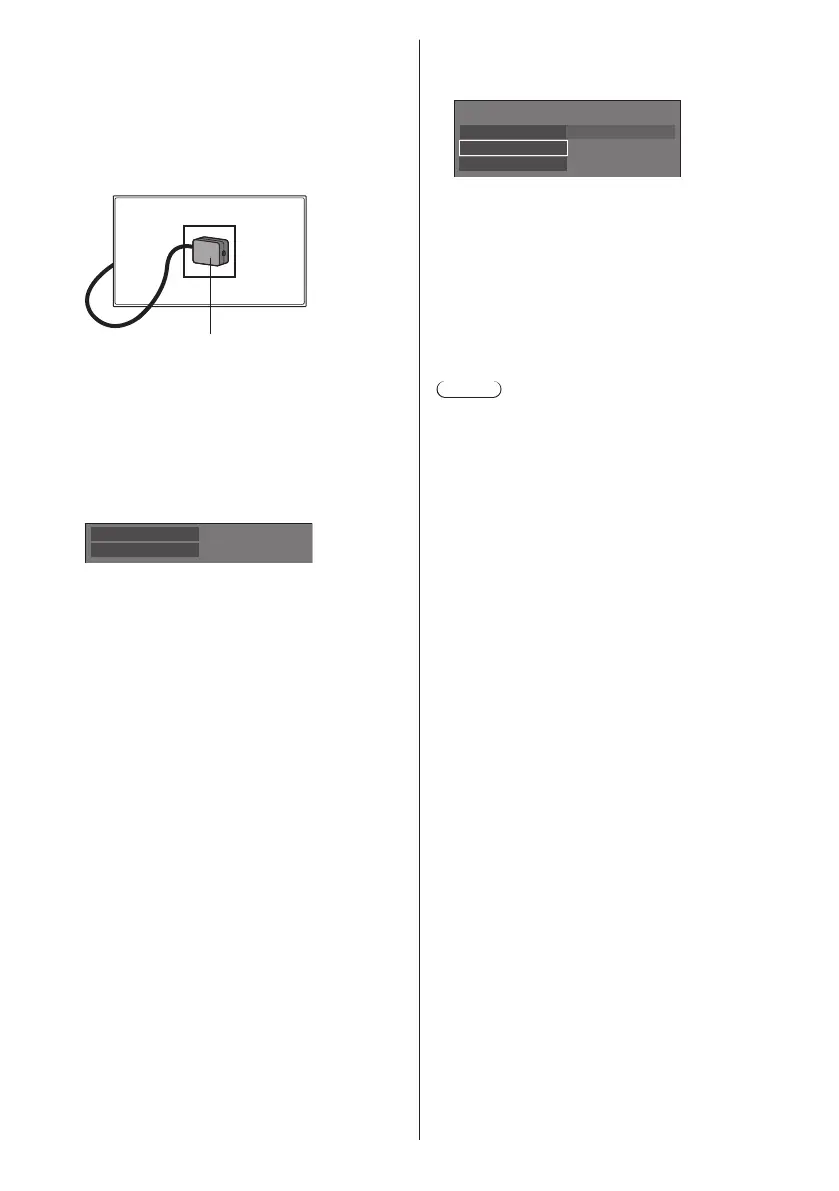

Adjustment procedure
1
Select a colour temperature to be set
in [Colour temperature].
2
Set the front side of the sensor
toward the panel within the square
displayed in the center of the
screen.
Sensor module
3
Select [Start adjustment] and press
<ENTER>.
The adjustment starts.
4
When [Adjust OK] is displayed, the
adjustment is complete.
When [Adjust failed] is displayed, perform
adjustment again.
Adjust OKStart adjustment
Reset
■ [2 screens colour matching adjust]
Matches the colours of 2 displays using the color
sensor.
2 screens colour matching adjust
Colour temperature 10700K
Reference set measurement start
Adjust set adjust start
[Colour temperature]:
Displays the colour temperature setting of the
reference display.
[Reference set measurement start]:
Starts measurement by selecting this item after the
sensor is set on the reference display.
[Adjust set adjust start]:
Starts adjustment by selecting this item after the
sensor is set on the display to be adjusted.
Note
●
Connect between the 2 displays using an RS-232C
cross cable (female-female).
●
Check that [Control settings] is set as shown below
on the 2 displays.
•
[Serial control] is set to [SERIAL IN].
•
[Serial response (Normal)] is set to [On].
●
When setting the sensor module to the panel, do not
push it too strong.
●
When attaching the sensor module to the display
again, use a spare double-sided tape, etc.
●
Before adjustment, energize the unit for at least 1
hour in picture signal displayed state.
●
Use the sensor module of the display to be adjusted.
●
Menu operation is not available when on the
reference display [Picture] - [Colour temperature] is
set to [Native], [User1] or [User2].
●
Operation is not available when [Picture] - [Picture
mode] of the display to be adjusted is set to [DICOM].
