RCA cord
R (Red)
Video (Yellow)
L (White)
If the fuse (rear panel) blows frequently, they may be
something wrong with the product.
Consult your nearest Panasonic Servicenter for service.
Fuse (mini auto fuse type, 5 A)
≥
CQ-VA707W
Control unit
(option)
CQ-VA707W
Display unit (option)
VTR-IN
CY-VM5800U
Display unit (option)
Video input lead
RCA cord
(option)
(Yellow)
(Yellow)
VTR-IN
VIDEO-OUT

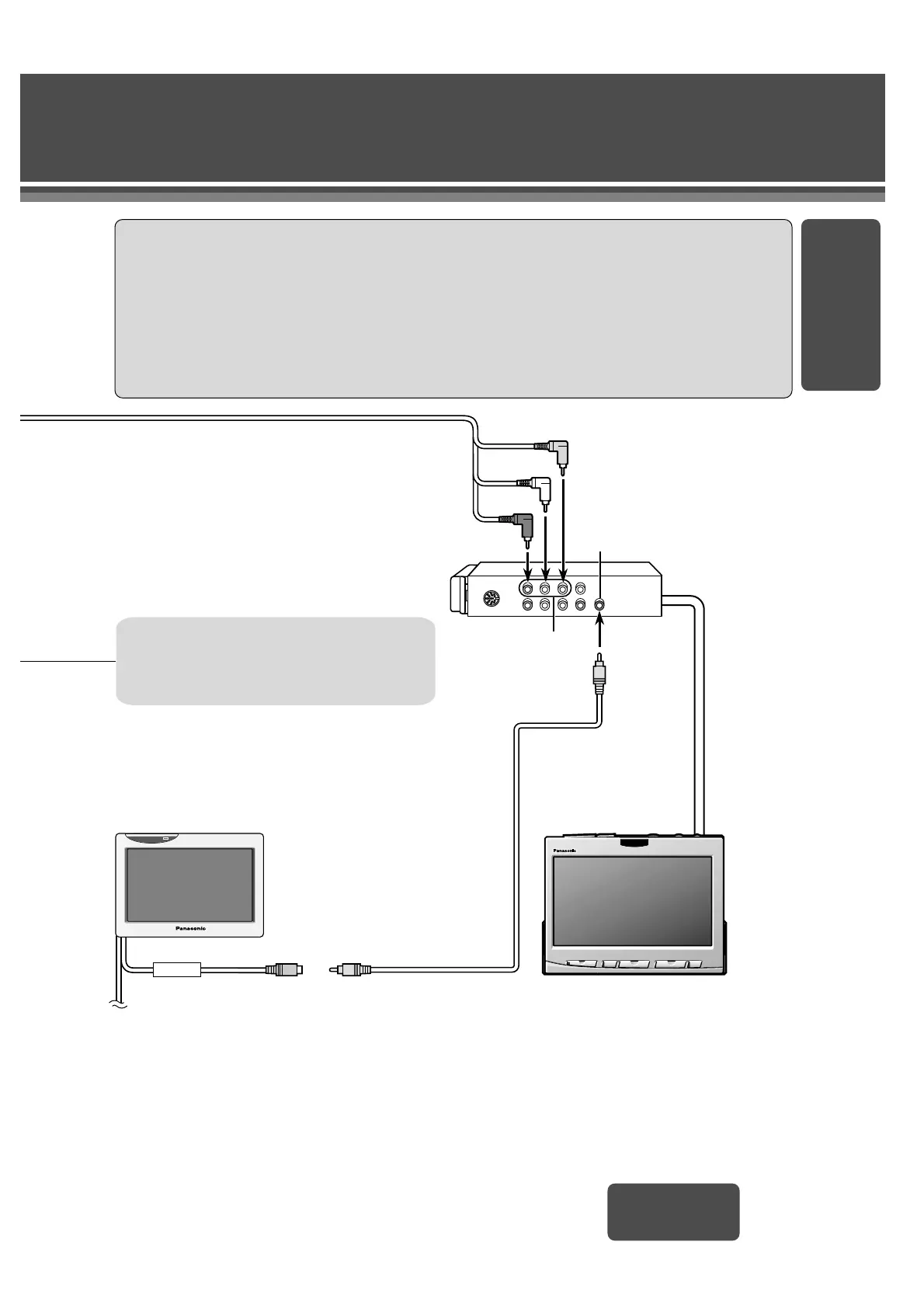

Caution:
≥ This product is designed to operate with a 12 V DC, negative ground battery system.
≥ To prevent damage to the unit, be sure to follow the connection diagram below.
≥ Remove approximately
1
/4z (5 mm) of protective covering from the ends of the leads before connecting.
≥ Do not insert the power connector into the unit until the wiring is completed.
≥ Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all
cables and keep cable terminals free from touching any metal parts.
≥ Remember, if your car has a drive computer or a navigation computer, the data of its memory may be
erased when the battery terminals are disconnected.
Note:
≥ For wiring, carefully read the operating instructions
for the devices connected.
≥ In the future, new monitor models may be released
which can also be connected.
