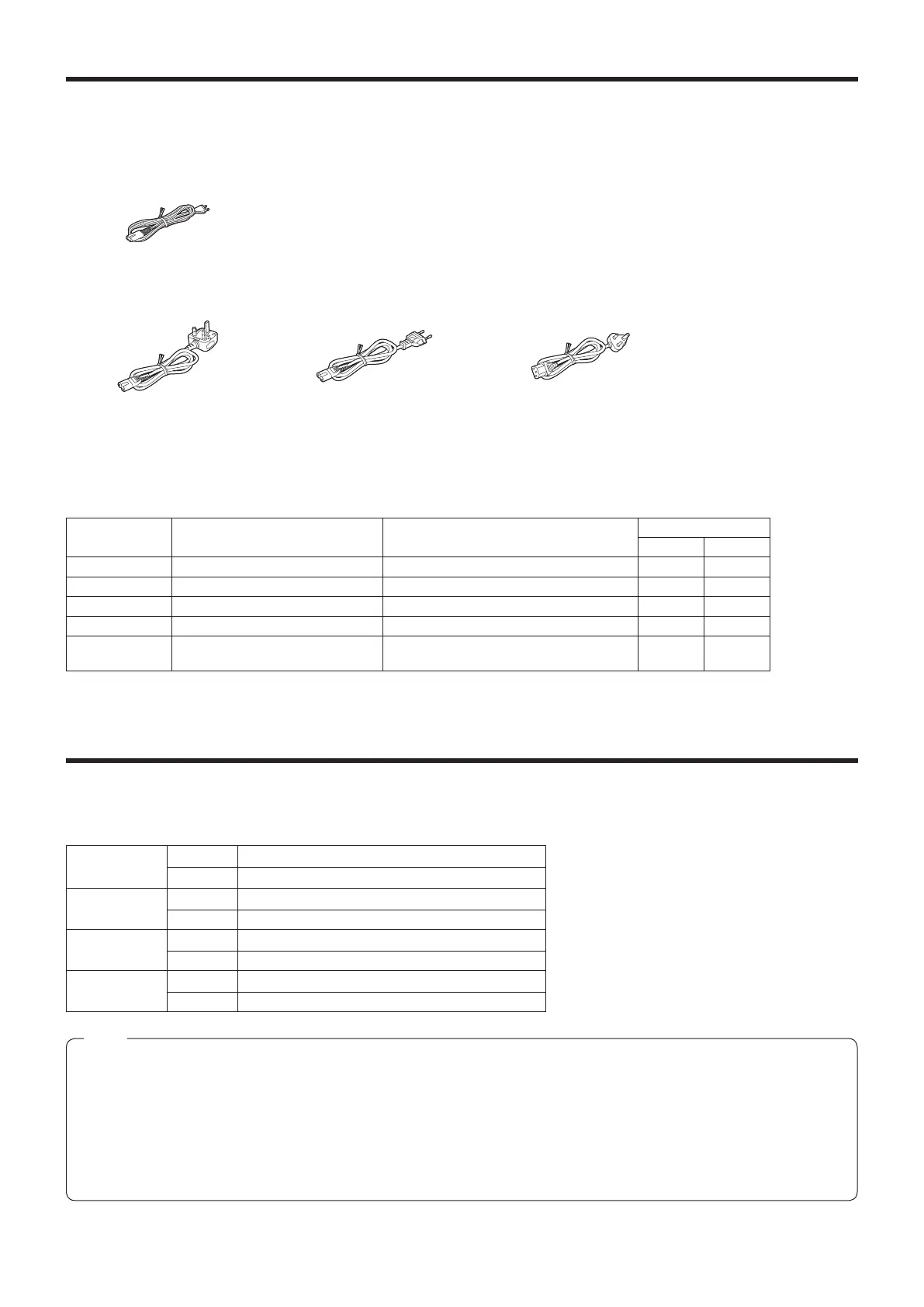

Accessories
Check that the following accessories are present and accounted for.
After removing the product from its container, dispose of the power cable cap (if supplied) and packing materials in an
appropriate manner.
Power cable for AV-UHS500P ............................................... 1
Power cable for AV-UHS500E ............................................... 3
For U.K. and Saudi Arabia For Continental Europe, etc. For India only
This product is equipped with 3 types of AC mains cable.
Appropriate mains cable must be used in each local area, since the other type of mains cable is not suitable.
Sold separately
Optional units
Model number Unit Function
Supported slots
SLOT A SLOT B
AV-UHS5M1 SDI Input Unit 3G/12G-SDI input × 4 lines
AV-UHS5M2 SDI Output Unit 3G/12G-SDI output × 4 lines
AV-UHS5M3 HDMI Input Unit HDMI input × 3 lines
AV-UHS5M4 HDMI Output Unit HDMI output × 3 lines
AV-UHS5M5 4K DVE Unit BKGD output × 1 line,
Keyer output × 1 line,
: Supported
Installation and connections
(Be sure to ask your dealer.)
How to install the optional units
For details, refer to the operating instructions of the optional unit concerned.
AV-UHS5M1
SLOT A IN-A1, IN-A2, IN-A3, IN-A4
SLOT B IN-B1, IN-B2, IN-B3, IN-B4
AV-UHS5M2
SLOT A
OUT-A1, OUT-A2, OUT-A3, OUT-A4
SLOT B OUT-B1, OUT-B2, OUT-B3, OUT-B4
AV-UHS5M3
SLOT A
IN-A1, IN-A2, IN-A3
SLOT B IN-B1, IN-B2, IN-B3
AV-UHS5M4
SLOT A
OUT-A1, OUT-A2, OUT-A3
SLOT B OUT-B1, OUT-B2, OUT-B3
Before installing or removing optional units, turn off the power, and disconnect the power plug.
Before coming into physical contact with optional units, touch your hand to metal that has been grounded to discharge the
static electricity in your body.
A safe way to proceed is to wear an anti-static wrist strap.
Optional units may be damaged if you touch them with static still in your body.
Avoid damage to optional units by not dropping or subjecting to strong shocks or vibrations.
After removing optional units, be absolutely sure to attach the blank panel.
When installing or removing optional units, take care not to hurt yourself on the edges or metal parts.
Notes
