SRK-RAM13HX
Radio Replacement Kit
for 2013-2018 RAM Trucks
and 2019-2024 RAM Classic
Stinger HEIGH10
© 2025 Stinger. All rights reserved. PAC is a Power Brand of Stinger Solutions.
PAC-Audio.com / StingerSolutions.com
Pacific Accessory Corporation
Page 16
Rev: V1
Date: 020725
®

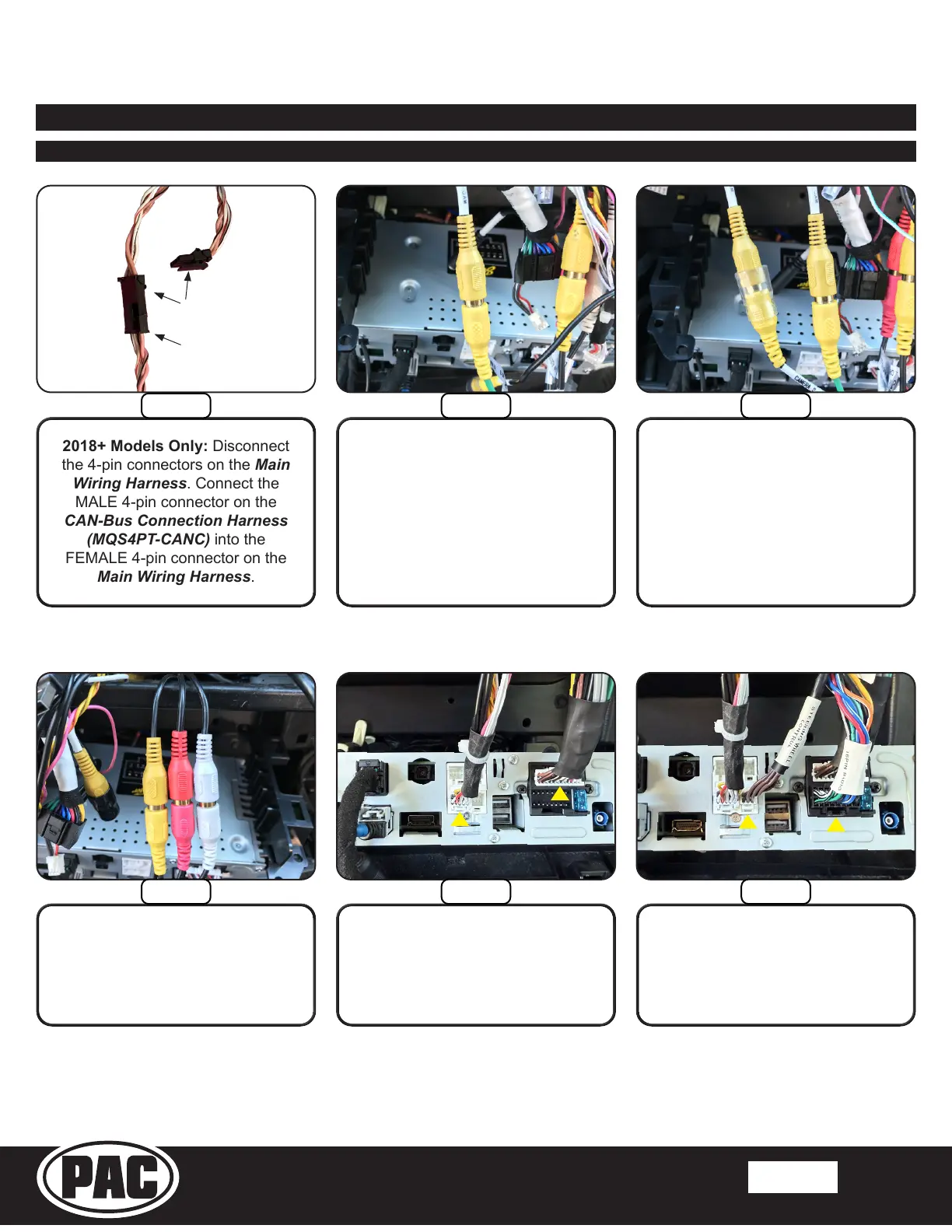

Section 5: Radio Unit Installation (continued)
Part One: Harness and Cabling Connections (continued)
2018+ Models Only: Disconnect
the 4-pin connectors on the Main
Wiring Harness. Connect the
MALE 4-pin connector on the
CAN-Bus Connection Harness
(MQS4PT-CANC) into the
FEMALE 4-pin connector on the
Main Wiring Harness.
Connect the Red,White and
Yellow RCA’s from the Media
Hub to the “AUX IN” inputs on
the HEIGH10’s 24 Pin AV / Rear
Camera Harness.
If equipped with an OEM rear
camera, connect the “REVERSE
CAM” RCA on the Main Wiring
Harness to the “REVERSE
CAMERA IN” RCA on the
HEIGH10’s 24 Pin AV / Rear
Camera Harness (SE-1103).
Or alternatively, connect an
aftermarket camera to “REVERSE
CAMERA IN.”
Connect the “16 PIN RADIO”
(3) and “STEERING WHEEL
CONTROL” (4) connectors from
the Radio Harness Adapter to
the HEIGH10 Radio Module.
If equipped with an OEM cargo
camera, connect the “CARGO
CAM” RCA on the Main Wiring
Harness to the “CAMERA 2”
input on the HEIGH10’s 10 Pin
Multi Camera Harness.
Step 5 Step 6Step 4
Connect the 24 Pin AV / Rear
Camera Harness (1) and 10 Pin
Multi Camera Harness (2) to the
HEIGH10 Radio Module.
Main Wiring Harness
MQS4PT-CANC
1
2
Step 8
Step 9Step 7
4
3
