5
8
LOCK
Lock all buttons and knobs;
Way to remove: press and hold the LOCK key to remove
the setting.
9
VOLT
Voltage setting key: press it to enter the voltage setting
mode, at the same time, user can input voltage value by
numeric box or knob.
10
SHIFT
Reuse function keys.
11
DISP
Switch output digital display and waveform display.
12
CONF
Switch the page into configure page, to set up various
functions.
13
Display area
TFT color screen display, output Settings and
measurement results.
14
USB
USB data interface.
15
Power button
Turn on/off instrument.
3.1.2 Rear Panel

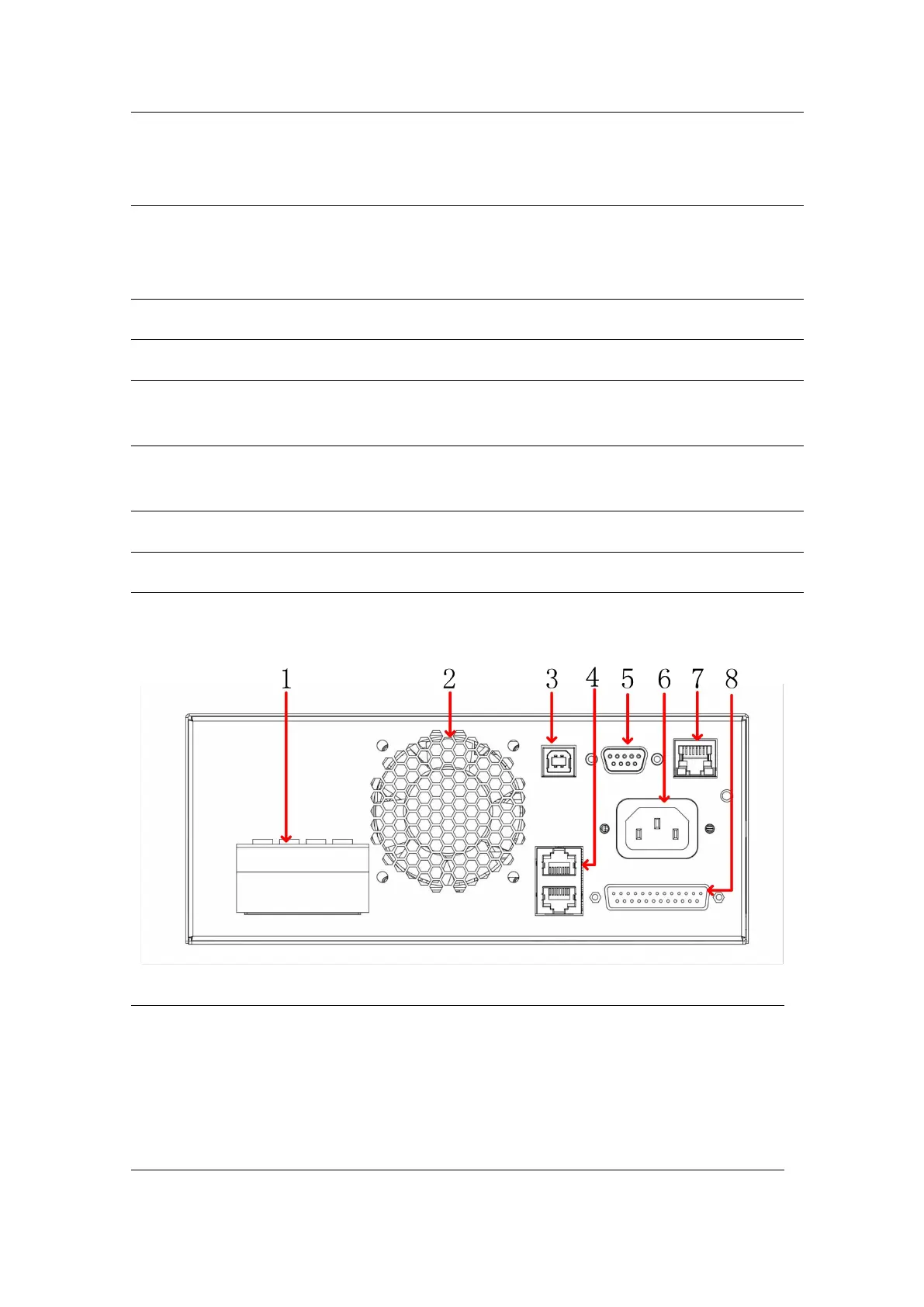

Figure 3- 2 Rear panel overview
1
DC output
terminal +
Remote
compensation
The DC power output terminal is equipped with a
remote compensating sampling terminal, which is
connected to the load terminal to compensate for the
voltage drop on the line. Please make sure that
Vsen+ is connected to output +, Vsen- is connected
