30
second delay, and then close switch NFB2 to begin the battery discharge
test.
Stopping the Discharge Test: First, press the [On/Off] button on the
front panel of the load to turn off the load input. Then, open switch NFB2,
and finally, open switch NFB1 to stop the battery discharge test.
4.13.2 OCP test function (Only available for T suffix
version)
This series of electronic loads has an overcurrent protection (OCP) test
function. In the OCP test mode, when the input voltage reaches the Von value,
a delay period is set, and the electronic load works. The current increases by
the step value at regular intervals, and the load input voltage is detected at
the same time to determine whether it is higher than the OCP voltage value. If
it is higher, it indicates that OCP has not occurred, and the current step
operation is repeated until it reaches the cut-off current; if it is lower, it
indicates that OCP has occurred, and then check whether the current value is
within the target range. If it is within the range, it is Pass, otherwise it is Fault.
OCP test steps:

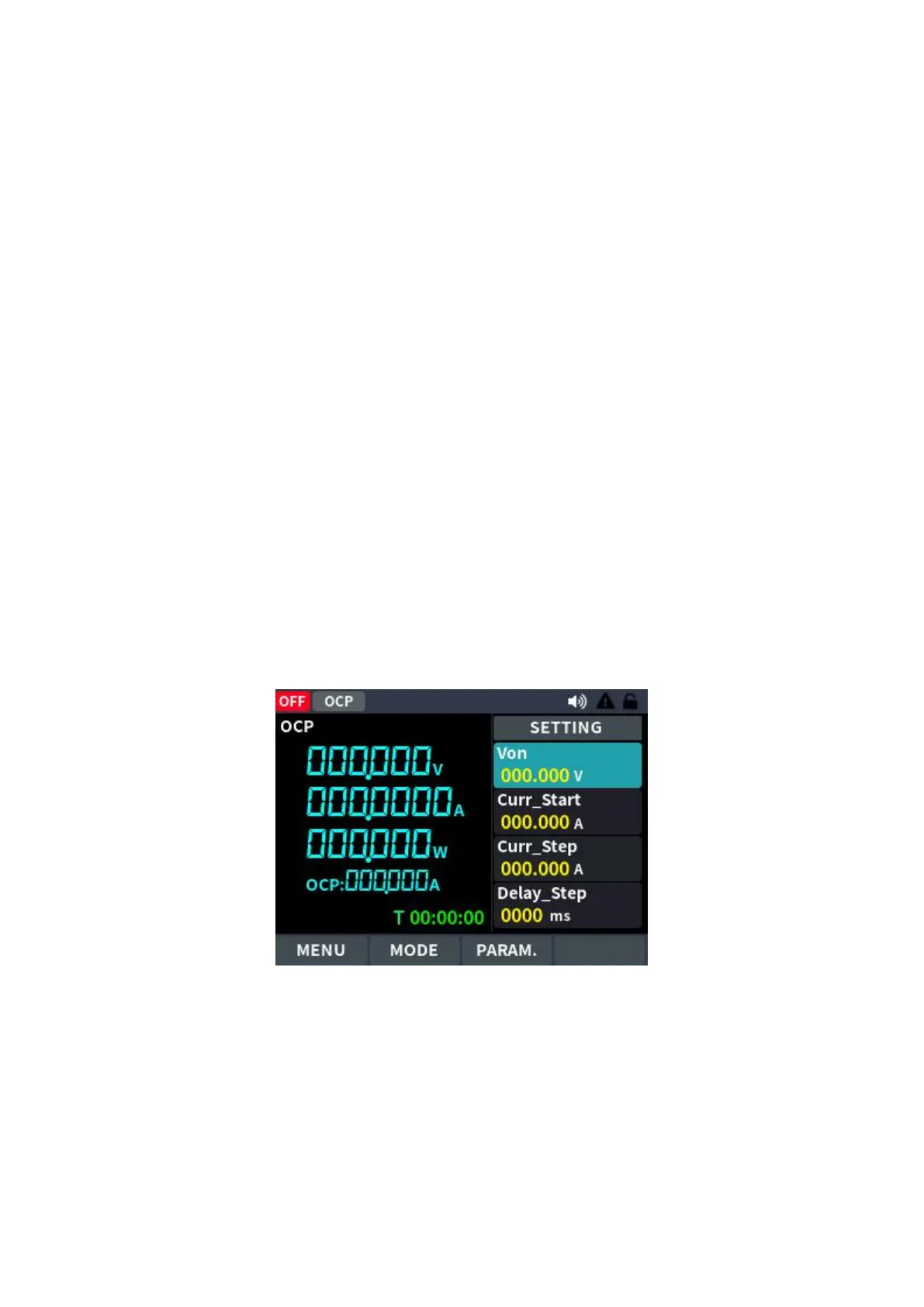

1. Select OCP mode in programming mode, enter the OCP test function
setting interface, and edit the OCP setting parameters.
2. Press the On/Off button to start the OCP test. If it is within the range,
the test is PASS and the panel displays the corresponding display. If it is out
of the range, the test fails and the panel displays the corresponding display.
3. After the test is completed, the user needs to return to the settings
interface and reset it.
