Panel Layout and Device Features

14

4.1.2.2 Signal Sources

Press a signal source button to switch PGM or PVW source.

In this area, the signal sources are divided into two areas including the background

sources of program bus and preview bus. The buttons in the first row are program bus,

and the second row are preview bus.

Each bus is composed of 8 background source select buttons: four channels of

HDMI/SDI inputs, two channels of still image, one channel of auxiliary signal from SD

card or USB connector(usually labeled as AUX in this text), and one internal black

signal (also could be set as Super Source- a splicing display), the buttons are as

shown in Figure 4.1-3:

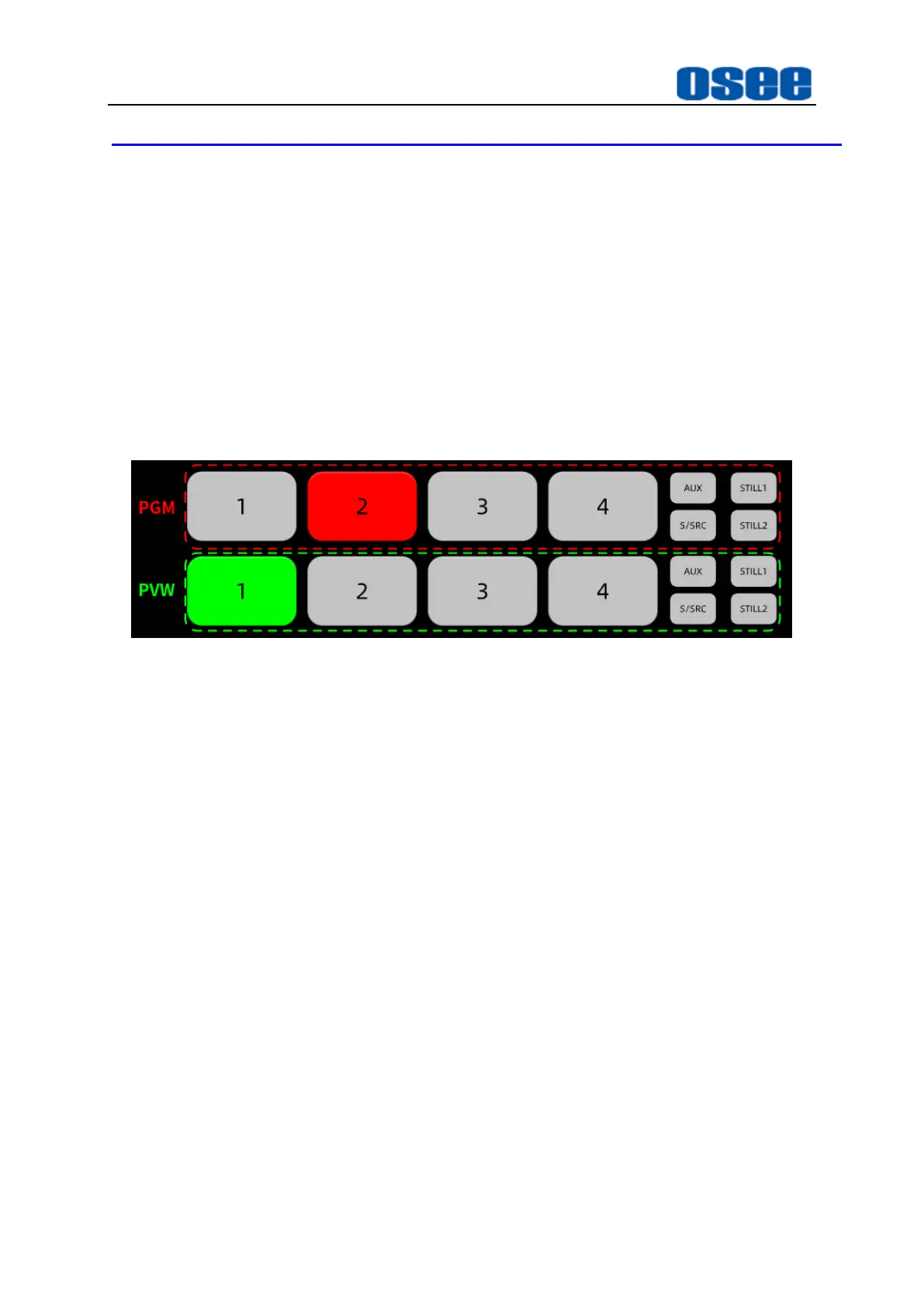

Figure 4.1-3 Source Select Buttons

To switch among these sources, press any one of the buttons in PGM bus or PVW

bus.

◼

Program Bus Source Select Buttons (Program output, labeled as PGM)

Press a program bus source select button, and GoStream will switch the program

output immediately. You can see the

PGM

window changing immediately and no

effect on the

PVW

window.

The program bus source select buttons are used to switch background sources

directly to the program output. The source currently on air is indicated by a button

that is illuminated red.

As shown in Figure 4.1-3, the source buttons labeled in the dotted red rectangle

are all background sources on program bus.

And you can monitor the current program video in the

PGM

window of multiview

display, as shown in Figure 4.1-4, the window labeled in red rectangle in Row2 is

the program source currently on air.

◼

Preview Bus Source Select Buttons (Preview output, labeled as PVW)

Press a preview bus source select button, and GoStream will switch the preview

output immediately. You can see the

PVW

window changing immediately and no
