Startup and Software Interface
13

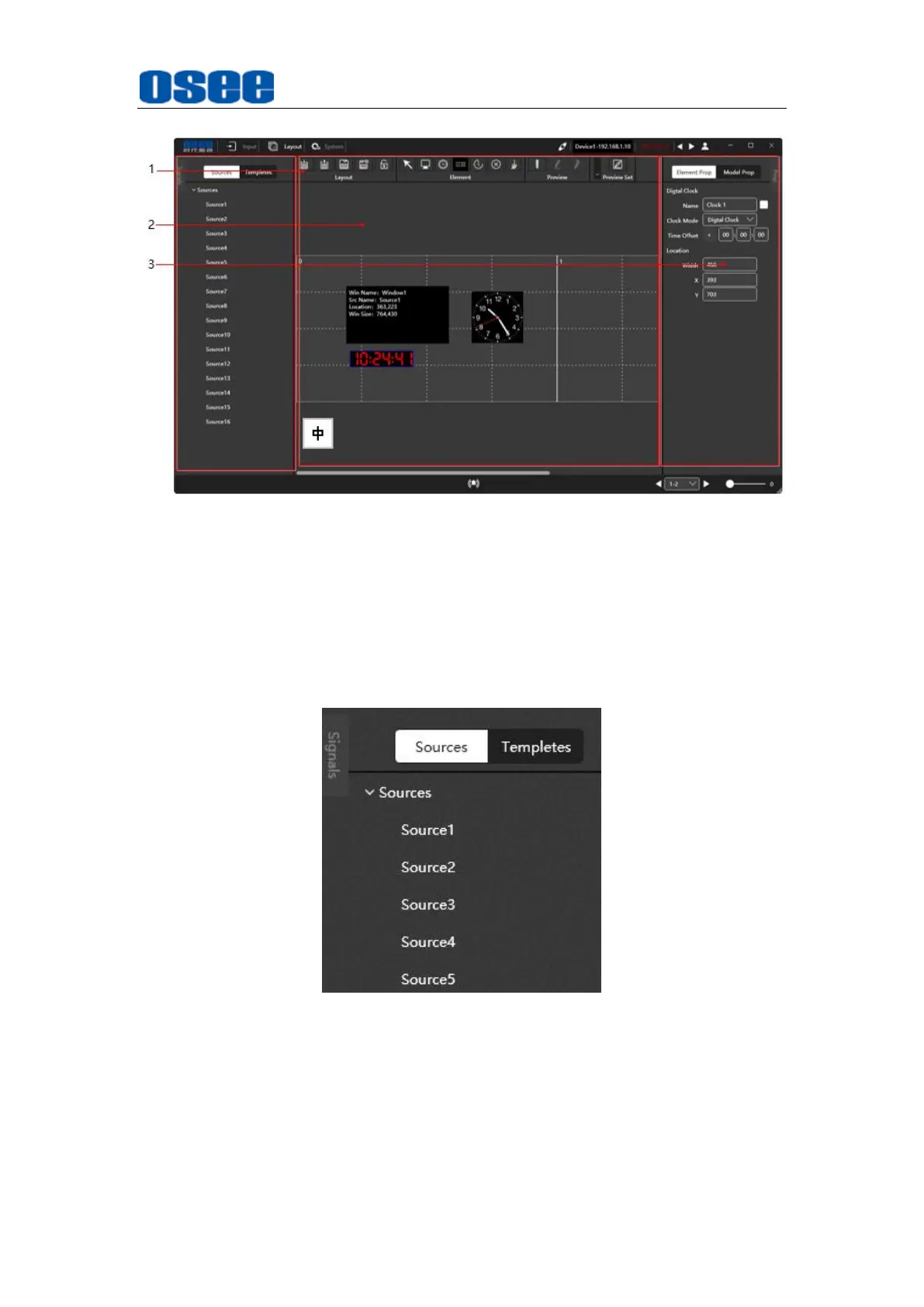

Figure 2.3.7 Layout Configuration Window
Configure the template in the layout configuration window, the details are
as follows:
1. System pane for template configuration
It provides the Sources and Templates list for layout configuration, as
shown in Figure 2.3.8:
Figure 2.3.8 System Pane for Layout Configuration
Sources
: It provides the signal sources available for the monitor
elements. Click and drag a signal source from the sources list in
system pane to a target monitor element in working area, thus to
establish the mapping relationship, as shown in Figure 2.3.9:
