Installation
Important: Please keep the installation procedure below. Improper or no
operation may result if the start-up sequence is not correctly followed.
Step 1
Carefully unpack the contents of the shipping group.
Step 2
Plug and fasten the 5V power adapters to the +5V DC jack on the rear side of
converter. Ensure the Power LED is ON (Blue).
Step 3
Connect the Component video source to CNDF-200 over 3 RCA cable.
Please make sure the firm connections between Y to Y IN, Pb to Pb IN and
Pr to Pr IN. If the Component video source is active, status LED (Blue) will be
turned on.
Step 4
Connect the OPTICAL OUT to 1-fibe DVI receiver, DVFX-100-R over multi-
mode SC-SC optical fiber.
Step 5
Plug DVFX-100-R to DVI input port of display.
Step 6
If you need on-site monitoring, connect Y OUT, Pb OUT and Pr OUT on the
front side of converter to Component video input port of local display over 3
RCA cable.
1-3 Installation
Note1: The maximum extension length by multi-mode fiber is 500 meters.
Note2: It is recommended NOT to use any intermediate cable or adapter in
between to avoid undesirable performance degradation.
Local
Component video Display
One (1) Optical Fiber
DVFX-100
Rx
Remote
DVI Display
Up to 1080p
CNDF-200
Component
video Source

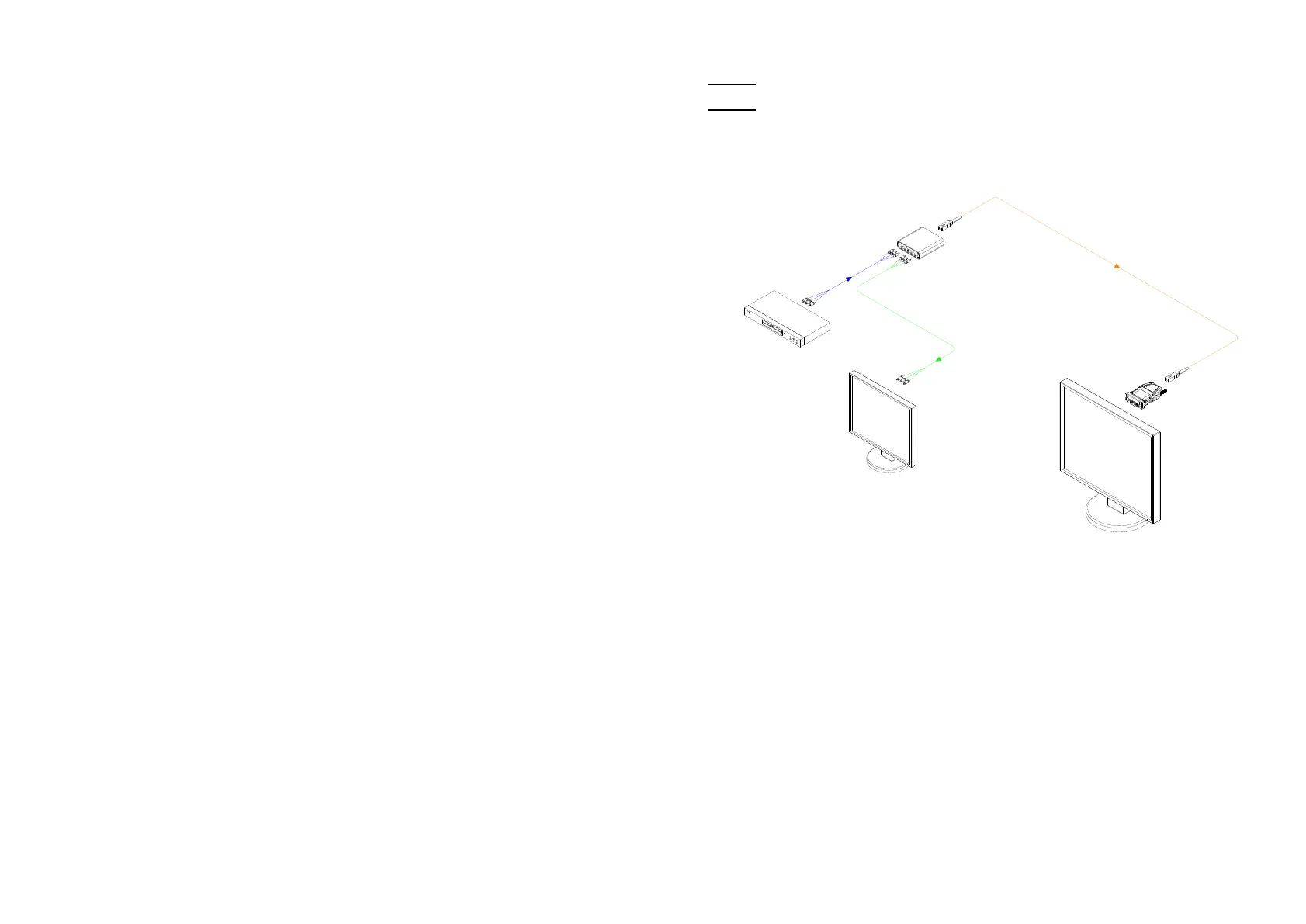

Figure 1 – Connection Diagram of CNDF-200
1-4 Installation
