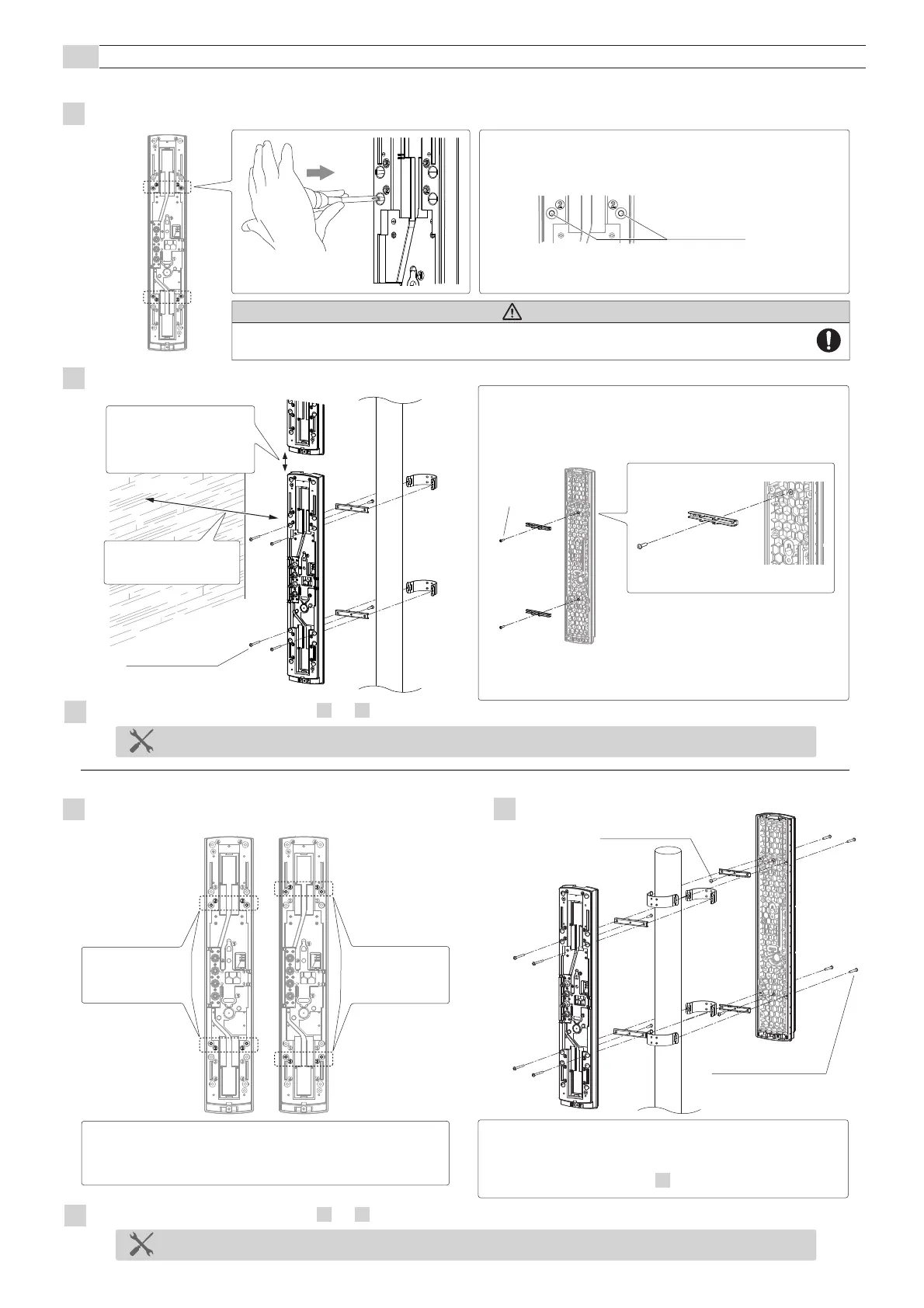

POLE MOUNTING
< Installing one detector >
< Installing two detectors in opposing directions >
1
Note>>
Caution
Using a screwdriver or similar tool, break the knockout position (x4) in the chassis as shown.
1
Using a screwdriver or similar tool, break the knockout position
(x4) in the chassis as shown.
• When mounting the single set of detectors to the pole, use
a pair of the inside knockouts.
The knockout positions are marked "②" as shown.
• Break the knockout from the direction shown (inside the
chassis). Breaking from the opposite direction (outside of the
chassis), makes a risk of generating burrs scratch the wire.
If you accidentally open an unnecessary knockout, be sure to fill the knockout with rain tight composite
like silicone rubber. Not doing so may result in waterproof failure and malfunction of the product.
Knockout position
2
Fix the chassis on the pole.
Note>>
Side wall
M4×30 screw
(with rubber washer)
Distance from the side wall:
at least 1m
• Before fixing the chassis on the pole, temporarily fix one
point at the center of the pole mounting bracket to the
back of the chassis.
• Install the unit vertically at a height where an object can be
detected without fail. In case to be stacked, be careful to
cover the detection area totally.
3×6 self tapping
3
Perform the wall mounting procedure of 4 to 5 on page 7.
3
2
Fix the chassis on the pole.
Note>>
Note>>
M4×30 screw
(with rubber washer)
• Before fixing the chassis on the pole, temporarily fix one point
at the center of the pole mounting bracket to the back of the
chassis. Refer to procedure 2 of “Installing one detector”.
• Choose a different pair of knockouts.
Pairs of the knockout positions are marked "②" and "③".
3×6 self tapping
Inside pair of
knockouts
marked
"②"
Outside pair of
knockouts
marked
"③"
Perform the wall mounting procedure of 4 to 5 on page 7.
If two detectors are installed,
the distance between the
upper and lower detector
should be at least 20mm.
Make function settings and optical alignment before mounting the cover.
