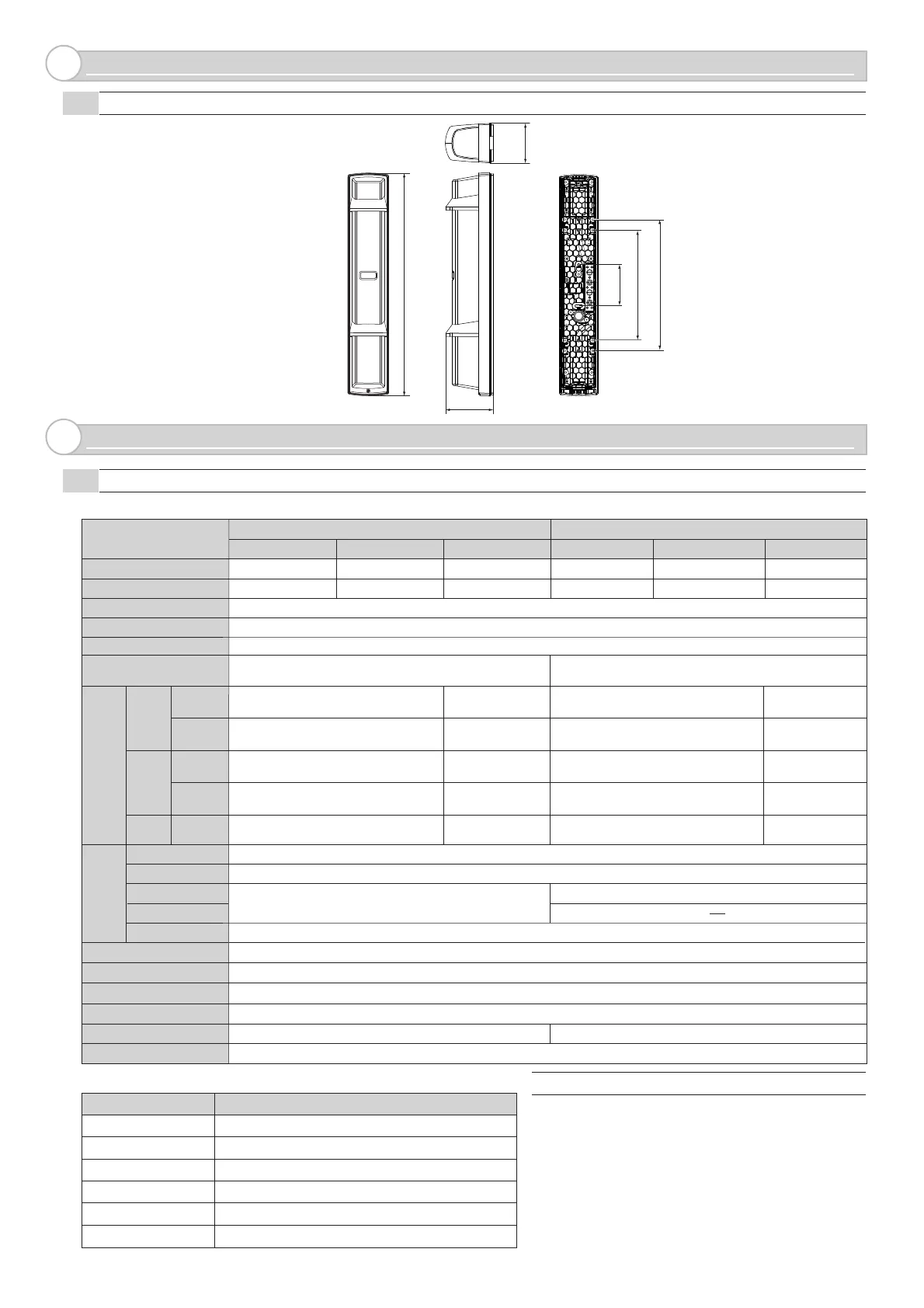

Je bekijkt pagina 19 van 20
-19-
DIMENSIONS
7
SPECIFICATIONS
8
8-1
SPECIFICATIONS
Model HU-3
Power input
24 VAC/DC
Current draw
210 mA max. per 1 piece / 420 mA max. per 1 unit
Thermo switch
60°C (
140
°F)
20 g (0.7oz) (Heater (x2))
Heater (x2), Connector (x4), Waterproof agent
Packages
Operating temperature
Weight
-35°C - +60°C (-31°F - +140°F)
< SL-200QDM, SL-350QDM, SL-650QDM, SL-200QDP, SL-350QDP, SL-650QDP >
< HU-3 (Option) >
*
1
7-1
DIMENSIONS
Unit: mm (inch)
448 (17.6)
96 (3.8)
79 (3.1)
83.5 (3.28)
(WALL)
222 (8.7) (POLE1)
265 (10.4) (POLE2)
These units are designed to detect an intruder and activate
an alarm control panel. Being only a part of a complete
system, we cannot accept responsibility for any damages or
other consequences resulting from an intrusion. These
products conform to the EMC Directive 2004/108/EC.
NOTE
*1 not evaluated by UL
*2 “Maximum Arrival Distance” shows the optical margin for the
detection range.
*3 UL listed power-limited burglar alarm power supply.
*4 All relays are Dry-Contact and all outputs are power-limited.
*5 All interconnecting devices must be UL/c-UL listed.
*6
All inputs and outputs must be connected to power limited circuit only.
Model
Maximum detection range
Maximum arrival distance*
1
*
2
Detection method
Selectable beam frequency
Interruption time
Power source*
3
Current
draw
Output
*
4
Alarm output
Normal
Peak
10.5-30VDC
SBU-4*
1
10.5-30VDC
10.5-30VDC
(UL evaluated)
SBU-4*
1
Optical
alignment
Alarm period
D.Q. output
*1
Low battery output
Tamper output
Operating temperature
Operating humidity
Alignment angle
Dimension
Weight
International protection
2500 g (Total weight of the transmitter + receiver, excluding accessories)
N.C. (contact output): 30 VDC, 0.1 A Opens when the cover removed.
-35°C - +60°C (-30°F - 140°F)
95 % (max.)
±90° Horizontal, ±10° Vertical
+ɯ:ɯ'PPLQFK[[
2400 g (Total weight of the transmitter + receiver, excluding accessories)
IP65
*1
Form C relay: 30 VDC, 0.2 A
Form C relay: 30 VDC, 0.2 A
(D.Q. and Low battery can be switched.)
ADVANCED
SL-200QDM SL-350QDM SL-650QDM SL-200QDP SL-350QDP SL-650QDP
STANDARD
60 m / 200ft 100 m / 350 ft 200 m / 650 ft 60 m / 200ft 100 m / 350 ft 200 m / 650 ft
600 m / 2,000ft 1,000 m / 3,500 ft 2,000 m / 6,500 ft 600 m / 2,000ft 1,000 m / 3,500 ft
2,000 m / 6,500 ft
Quad infrared beam interruption detection
4 channels
Variable between 50/100/250/500 ms (4 steps)
Normal: 10.5 - 30 VDC
Solar Battery Unit SBU-4*
1
(OPTION): 3.6 VDC
26 mA
(T: 11 mA, R: 15 mA)
26 mA
(T: 9 mA, R: 17 mA)
36 mA
(T: 16 mA, R: 20 mA)
45 mA
(T: 17 mA, R: 28 mA)
30 mA
(T: 15 mA, R: 15 mA)
35 mA
(T: 18 mA, R: 17 mA)
43 mA
(T: 20 mA, R: 23 mA)
60 mA
(T: 26 mA, R: 34 mA)
40 mA
(T: 16 mA, R: 24 mA)
43 mA
(T: 20 mA, R: 23 mA)
17 mA
(T: 6 mA, R: 11 mA)
—
—
—
—
21 mA
(T: 7 mA, R: 14 mA)
22 mA
(T: 11 mA, R: 11 mA)
24 mA
(T: 10 mA, R: 14 mA)
24 mA
(T: 7 mA, R: 17 mA)
33 mA
(T: 10 mA, R: 23 mA)
10.5 - 30 VDC
Form C relay: 30 VDC, 0.2 A
2 sec (±1) (Nominal)
