SL-QDM

SL-QDP

-18-

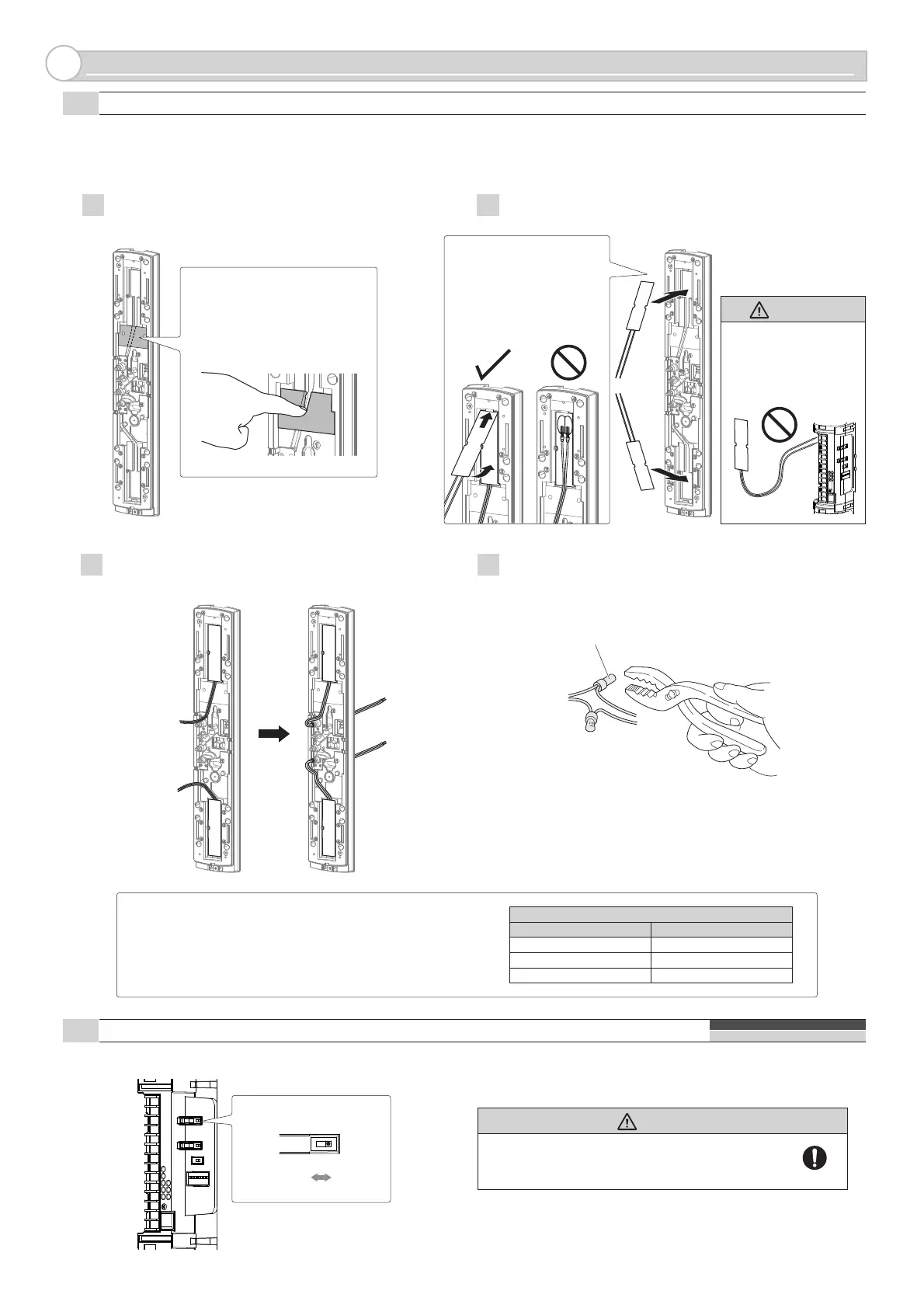

OPTION SETTING

6

6-1

HEATER UNIT HU-3 (OPTION)

6-2

SOLAR BATTERY UNIT SBU-4 (OPTION)

When using the Solar Battery Unit SBU-4 together with SL-QDM, set Power Supply Selector from Normal to SBU-4 position.

The heat release effect makes the unit less prone to frost. HU-3 can be mounted to either upper or lower part of the unit.

Use a 24 V power supply to use HU-3.

< Mounting method >

1

Caution

When using SBU-4 (option), be sure to read the

SBU-4 manual.

Tear the wiring groove section of the label that is pasted on

the chassis as shown below.

4

2

3

When connecting the lead wires to the wiring, make the

connection using the included connector or soldering. Insert

the wires into the connector and tighten the connections with

pliers.

Insert HU-3 into the chassis.

Route the cable along the wiring groove and draw the cable

through the cutbush.

NOTE>>

Ensure that the wiring distance from the power supply is within

the range shown in the table on the right. When using 2 or

more units on 1 wire, the maximum wiring distance is obtained

by dividing the wire distance by the number of unit used.

Connector

Power Supply Selector

[Normal/SBU-4]

NOTE>>

NOTE>>

The label can be torn with a

finger.

 Insert the tip of HU-3

into the hook of the

chassis to mount HU-3.

 Do not mount HU-3 with

the face down.

0.83 mm

2

(AWG18)

300 m (1000 ft.)

800 m (2600 ft.)

500 m (1700 ft.)

1.31 mm

2

(AWG16)

2.09 mm

2

(AWG14)

Caution

Do not wire HU-3 to

the main unit. Doing

so may result in

malfunction.

NORMAL

10.5 - 30 V

SOLAR

SBU-4

3.6 V

Wiring distance from power supply

Wire size

Power supply: 24 VAC/DC

* not evaluated by UL

* not evaluated by UL
