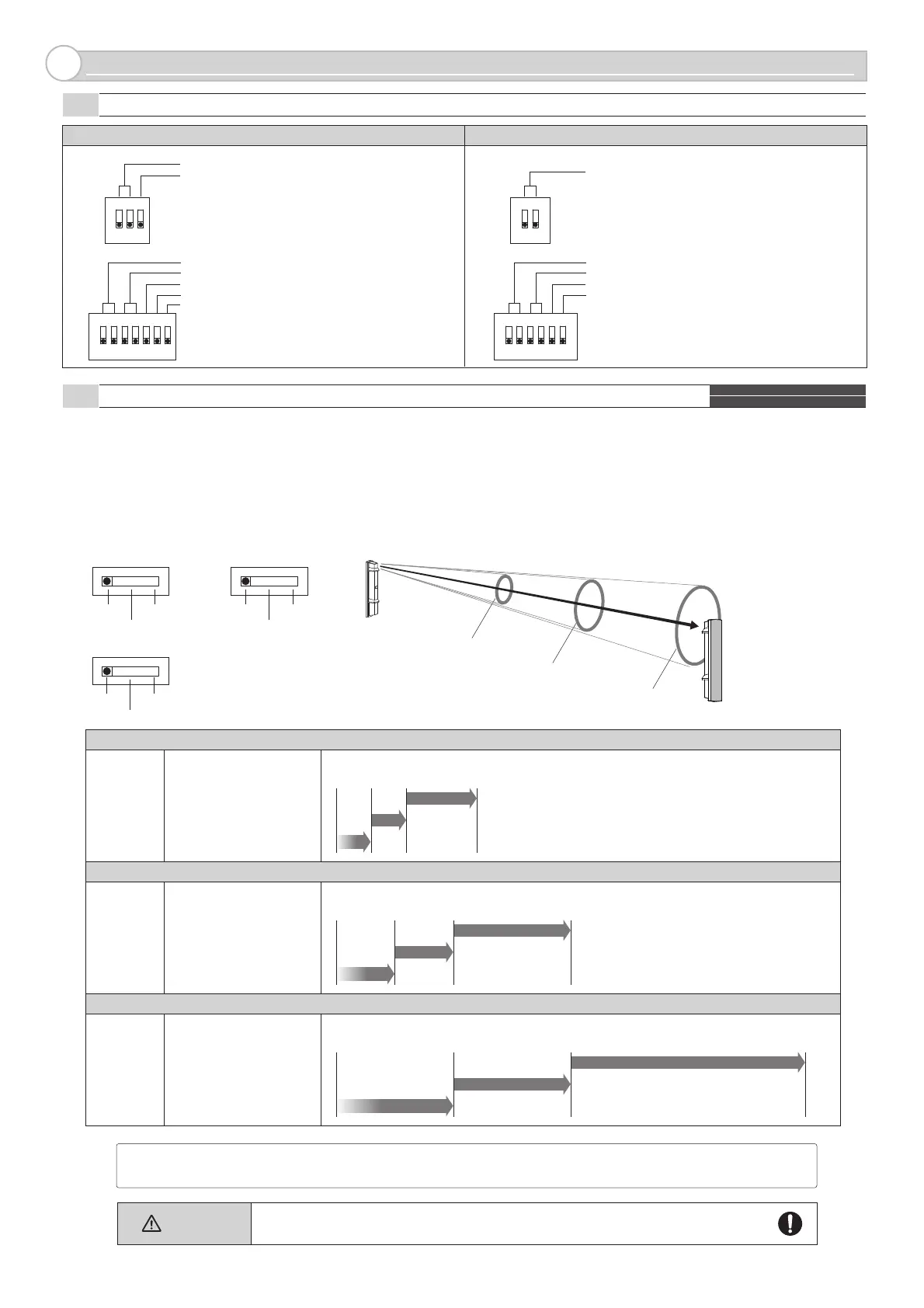

-10-
3-1
DIP SWITCH
3-2
BEAM POWER CONTROL SELECTOR
FUNCTION SETTING
3
SL-QDM SL-QDP
4 Channel beam frequency selector switch
Alarm memory switch [Auto/Manual]
Alarm memory switch [Positive/Negative]
D.Q. (environmental disqualification)/Low battery
output switch [D.Q./Low battery]
Interruption time switch [50/100/250/500ms]
ON
1234567
<Receiver>
4 Channel beam frequency selector switch
Alarm input switch [Positive/Negative]
ON
123
<Transmitter>
SL-QDM
SL-QDP
The beam power control selector can be used to avoid unwanted crosstalk that can occur when using multiple photo beams for long
distance or beam stacking applications.
The selector allows you to manually adjust beam power from NORMAL to LOW or VERY LOW.
Make sure the selector select to reduce beam power when using the detector for a distance shorter than the rated distance.
This function is also effective for the following purpose.
For countermeasure against crosstalk due to reflection of walls or ground.
For making optical alignment to support peak adjustment when the monitor jack output beams saturated.
< SL-QDM> < SL-QDP>
< Illustration >
Transmitter
Receiver
Transmitter
NORMAL
LOW
VERY LOWNORMAL
LOW
VERY LOW
VERY LOW
LOW
NORMAL
NORMAL
LOW
VERY LOW
SL-200 QDM/QDP
NORMAL
LOW
VERY LOW
SL-350 QDM/QDP
NORMAL
LOW
VERY LOW
60 - 30 m (200 - 100 ft)
30 - 15 m (100 - 50 ft)
Within 15 m (Within 50 ft)
100 - 50 m (350 - 175 ft)
50 - 25 m (175 - 88 ft)
Within 25 m (Within 88 ft)
200 - 100 m (650 - 350 ft)
100 - 50 m (350 - 175 ft)
Within 50 m (Within 175 ft)
SL-650 QDM/QDP
0 m 15 m
(50 ft)
30 m
(100 ft)
60 m
(200 ft)
0 m 25 m
(88 ft)
50 m
(175 ft)
100 m
(350 ft)
0 m 200 m
(650 ft)
50 m
(175 ft)
100 m
(350 ft)
Be sure to set the beam power control selector according to the installation distance.
Not doing so may result in interference with other sets of detectors.
Caution
Make sure the receiver and transmitter that are facing each other are set to the same position (SL-QDM only).
Note>>
NORMAL
LOW
VERY LOW
4 Channel beam frequency selector switch
Alarm memory switch [Auto/Manual]
Alarm memory switch [Positive/Negative]
Interruption time switch [50/100/250/500ms]
ON
123456
<Receiver>
4 Channel beam frequency selector switch
ON
12
<Transmitter>
