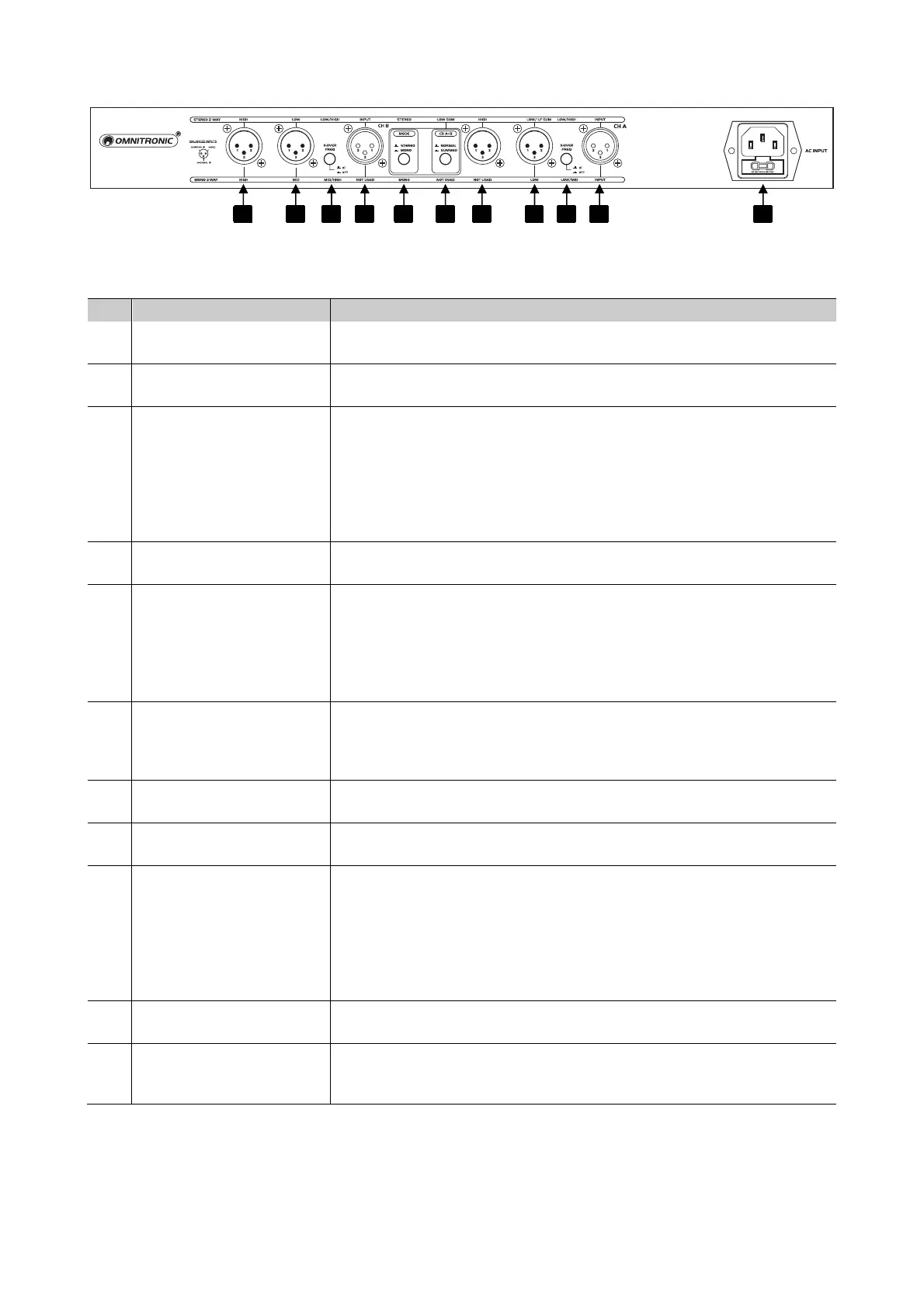

Rear panel
The labels of the functions differ in stereo and mono mode. The upper labels refer to the stereo mode, the
lower labels refer to the mono mode.
No. Element Function
15 HIGH output Balanced XLR jack in channel B for high frequency output in stereo
and mono mode.
16 LOW/MID output Balanced XLR jack in channel B for low frequency output in stereo
mode and mid frequency output in mono mode.
17 x10 switch Switches over the control range of the front X-OVER FREQ control in
channel B from 45 Hz to 960 Hz (switch not pressed) to 450 Hz to 9.6
kHz (switch pressed, front LED lights).
Note: Before using this switch, always ensure that the amplifiers
feeding all speaker systems are turned off or that the input gain
controls on the amplifiers are turned down, as this button produces
heavy interference noise that could damage your speaker systems.
18 INPUT jack Balanced XLR jack in channel B for the input signal in stereo mode. In
mono mode, this input is not used.
19 MODE switch Selects 2-way stereo mode (switch not pressed) or 3-way mono mode
(switch pressed).
Note: Before using this switch, always ensure that the amplifiers
feeding all speaker systems are turned off or that the input gain
controls on the amplifiers are turned down, as this button produces
heavy interference noise that could damage your speaker systems.
20 LOW SUM switch Activating this switch sums the low frequencies of channel A and B in
stereo mode. The sum is routed to the LOW/LF SUM output of channel
A, while the output of channel B is not used. In mono mode, this switch
is not used.
21 HIGH output Balanced XLR jack in channel A for high frequency output in stereo
and mono mode. In mono mode, this output is not used.
22 LOW/LF SUM output Balanced XLR jack in channel A for low frequency output in stereo and
mono mode.
23
x10 switch Switches over the control range of the front X-OVER FREQ control in
channel A from 45 Hz to 960 Hz (switch not pressed) to 450 Hz to 9.6
kHz (switch pressed, front LED lights).
Note: Before using this switch, always ensure that the amplifiers
feeding all speaker systems are turned off or that the input gain
controls on the amplifiers are turned down, as this button produces
heavy interference noise that could damage your speaker systems.
24 INPUT jack Balanced XLR jack in channel A for the input signal in stereo and mono
mode.
25
Power input with
fuse holder
Plug in the supplied power cable here. Only replace the fuse when the
device is disconnected from mains. Only use fuses of the same rating
and power. The correct fuse value is specified on the rear panel.
