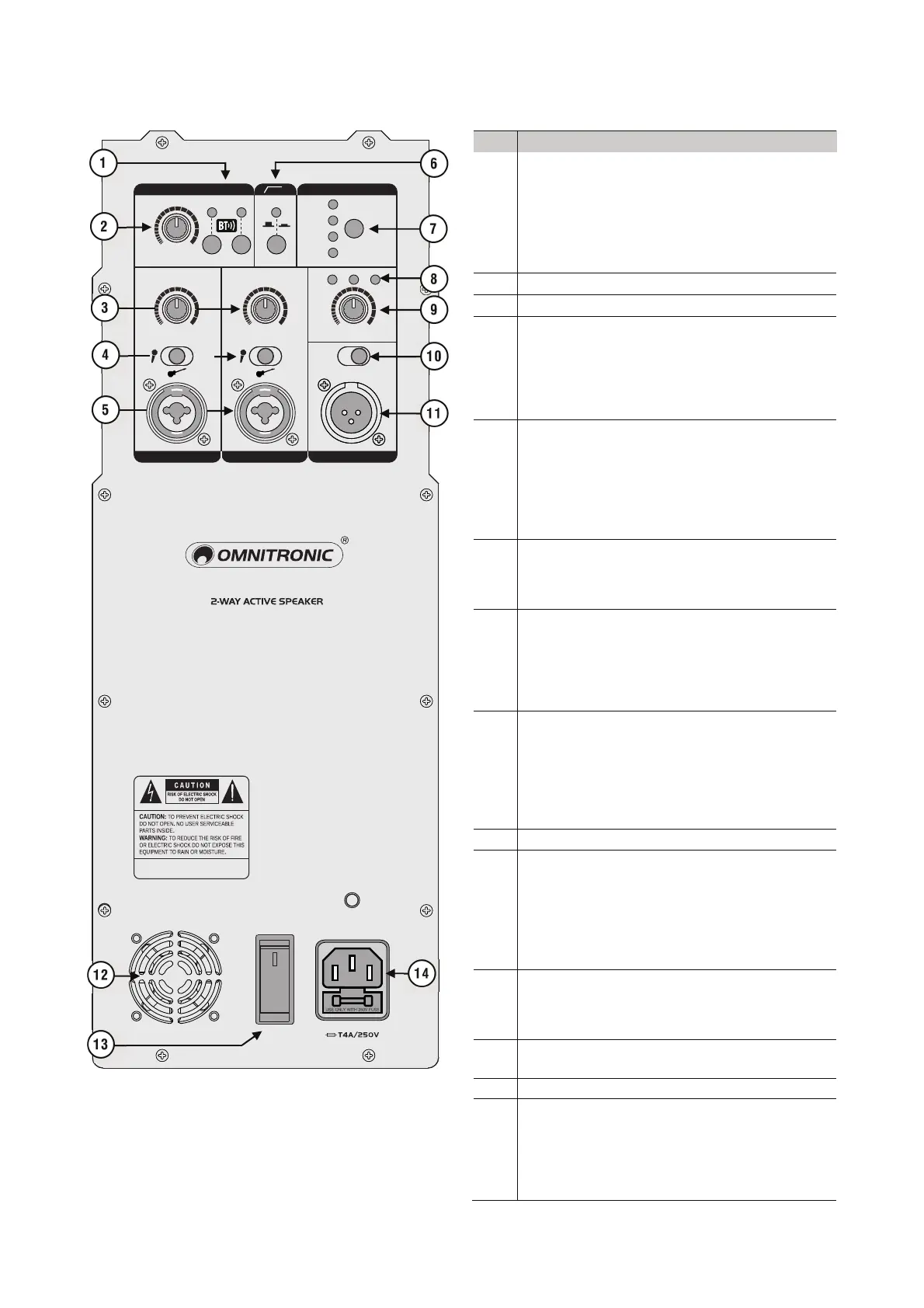

Operating Elements and Connections
Models PAS 208A | 210A | 212A | 215A
No. Function
1
PAIR und TWS
Press PAIR to turn on the Bluetooth receiver
(status indicator starts flashing); press this button
again to reset the Bluetooth connection.
For wireless stereo operation of two PAS, pair
the Bluetooth source, then press TWS on both
speaker systems.
2
Level control channel 3
3
Level control channel 1 and 2
4
Input level switch channel 1 and 2
The 3-position switch is used to adjust the input
level: left position = microphones, middle
position = for high-impedance instruments, lower
position = for audio devices with line output (e.g.
CD players).
5
Mono input channel 1 and 2
Channels 1-2 provide balanced mono inputs with
combo connectors. Use standard XLR or 6.3 mm
cables to connect microphones, high-impedance
music instruments or line-level devices to these
inputs. Then adjust the input level with the
corresponding selector switch.
6 LOW CUT switch
To enable a high pass filter. This allows low-
frequency signal components below 100 Hz (e.g.
impact sound) to be suppressed.
7 DSP switch
To select various equalizer presets: LIVE =
neutral frequency response; MUSIC = low and
high frequency boost; CLUB = increased
presence and bass; VOCAL = optimizes speech
intelligibility
8 Status indicators
PWR = speaker is powered on. PEAK = the
signal level is too high; the limiter will reduce the
signal level to protect the speakers. Reduce the
volume with the master control until the LED
does not light anymore, or only at signal peaks.
SIG = input signal is present.
9
Overall level control
10
Output selector switch LINK/MIX
Determines the signal at the link output.
Left position (pre-fader) = output of the input
signals before the volume controls; right position
(post-fader) = output of the input signals after the
volume controls, but without processing by the
DSP
11 Feed-through output
Balanced XLR jack to pass the input signals to
another device, e.g. a further active speaker
system.
12 Fan
Do not cover to avoid overheating.
13 Power switch
14 Power input with fuse holder
Used to plug in the supplied power cord. Only
replace the fuse when the device is
disconnected from mains. Only use fuses of the
same rating and power. The correct fuse value is
specified on the rear panel.
