13User ManualDesigned to Enhance Refrigerator
WARNING: The refrigerator must be installed and secured
according to these instructions to prevent instability and
potential hazards.
Securing the Refrigerator to the Cabinet
• Inserting Guide Pieces
Open the refrigerator door and insert the 4 Limit Guide Pieces
into the two holes of the upper and lower hinges (these guide
pieces should be placed outside the refrigerator, not inside).
Once inserted, close the door. (Refer to Fig. 1).
• Connecting the Power Cable
Insert the power cable into the lower jack socket located at the
back of the refrigerator. Feed the plug through the hole in the
cabinet and plug it into the designated power socket.
• Positioning the Refrigerator in the Cabinet
Push the refrigerator into the cabinet, while gently pulling the
power cable to prevent tangling or damage. Stop pushing when
the Limit Guide Pieces on the lower left and right hinges align
with the cabinet surface. (Refer to Fig. 2).
• Adjusting the Refrigerator’s Height
Use a hexagon nut wrench to adjust the nuts on the pins:
• Rotate clockwise to raise the front of the refrigerator.
• Rotate counter-clockwise to lower it.
• Adjust until both the upper and lower guide pieces are flush
with the cabinet surface. (Refer to Fig. 3).
• Securing the Refrigerator
Open the door and remove the Limit Guide Piece from one of
the hinges. Install the Door Fixing Frame using two fixing screws.
Repeat this step for each hinge, removing the Limit Guide
Pieces one by one. (Refer to Fig. 4).

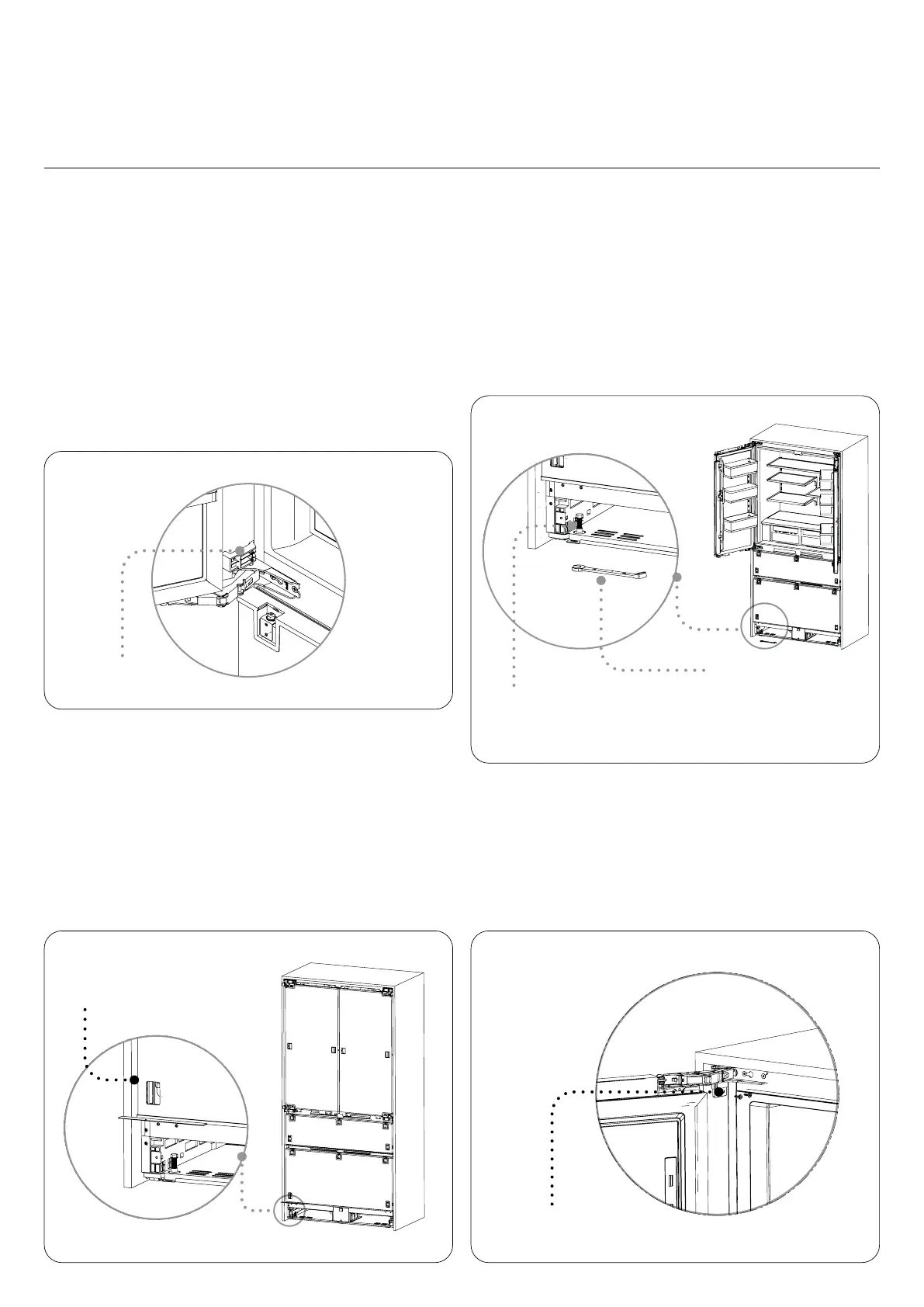

Figure 3
Hexagon nut wrench
Pin Adjustment Nut
Installing Your Refrigerator
Figure 1
Limit Guide Piece
Figure 2 Figure 4
Limit Guide Piece
Door Fixing Frame
