Fig. 5.e

5.a Prepare the surface where the unit is to be mounted. Make sure that the surface is ﬂat, leveled and that it supports the weight

of the unit. Perform the installation in accordance with local rules and regulations.

5.b Useappropriateplugsandrodsorscrews(notsupplied)toxtheunittotheceiling.Itisrecommendedtottheunitwith

anti-vibration mounts (not supplied).

5.c Assure that the unit is completely ﬂat once mounted to the ceiling, for the condensation drainage to function properly.

5.dConnectthecondensationelbow(s)tothedrainagehole(s)ontheaccesspanel:incasecloseandsealthenon-usedhole

with the supplied plugs (2 plugs each hole). Make sure of water and air tightness of all connections. The condensation pipe

connection must be done in a way that makes easy to remove the access panel for the service operation. It is recommended

touseaU-bend(orsimilar)inthecondensationdrainagepipe.

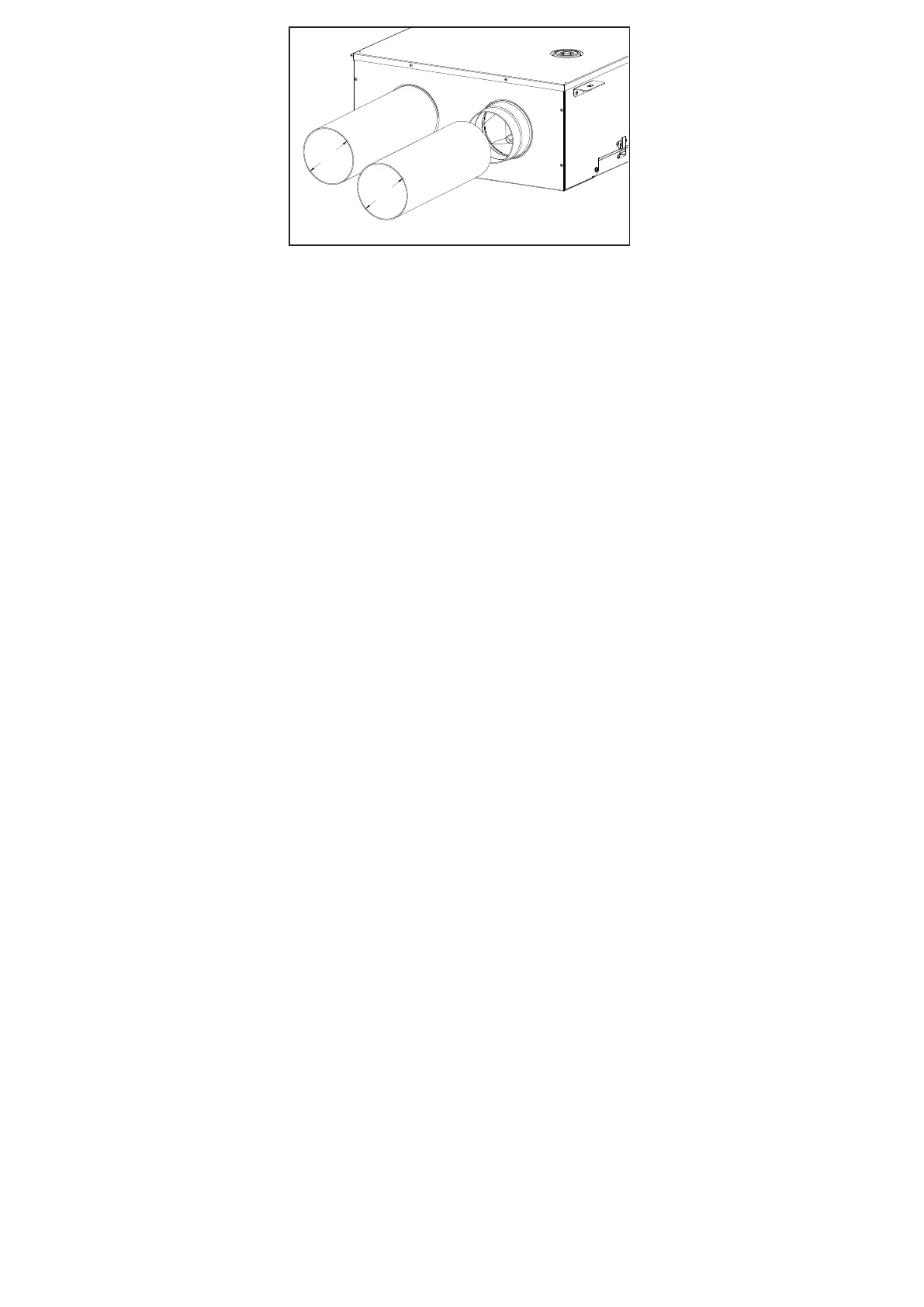

5.e Connect the unit to the duct system. Make sure that all necessary accessories are used to create a functional ventilation

solution. Connecttheunitelectricallyaccordingto§5.4.Checkthatitstartsupcorrectly.

Ø125
