4 TRANSPORT AND STORAGE

The appliance is delivered in one carton box.

The appliance should be stored and transported in such a way that it is protected against physical damage that can harm spigots,

casing, display etc...

It should be covered so that dust, rain and snow cannot enter and damage the unit and its components.

WARNING

Make sure that speciﬁc warnings and cautions in Chapter 2 “Precautions” are carefully read, understood and applied!

5 INSTALLATION

This section describes how to install the unit correctly.

The unit must be installed according to these instructions.

5.1 Unpacking

Verify that the unit (and eventual accessories) delivered is according to order before starting the installation. Any discrepancies

from the ordered equipment must be reported to the supplier.

5.2 Where/how to install

•All SITALI units are meant for indoor installation in a heated space.

•The unit must always be mounted horizontally.

•Mount the unit on flat surface (ceiling).

•It’s important that the unit is completely leveled before it is put into operation.

•Place the unit preferably in a separate room (e.g. storage, laundry room or similar).

•When choosing the location it should be kept in mind that the unit requires maintenance regularly and that the inspection door

should be easily accessible.

•Leavefreespaceforopeningtheremovablepanelandforremovalofthemaincomponents(§3.4).

•The outdoor air intake of the building should if possible be put in the northern or eastern side of the building and away from

other exhaust outlets like kitchen fan exhausts or laundry room outlets.

•The unit casing is provided with 2 drainage holes to be used for condensation drainage. Make sure that the not-used hole is

tightly closed with the supplied plugs to provide water and air tightness.

5.3 Ceiling installation

The unit must be installed in the following position.

It is important that the unit is completely ﬂat in order for the condensation drainage to work properly.

WARNING

Make sure that speciﬁc warnings and cautions in Chapter 2 “Precautions” are carefully read, understood and applied!

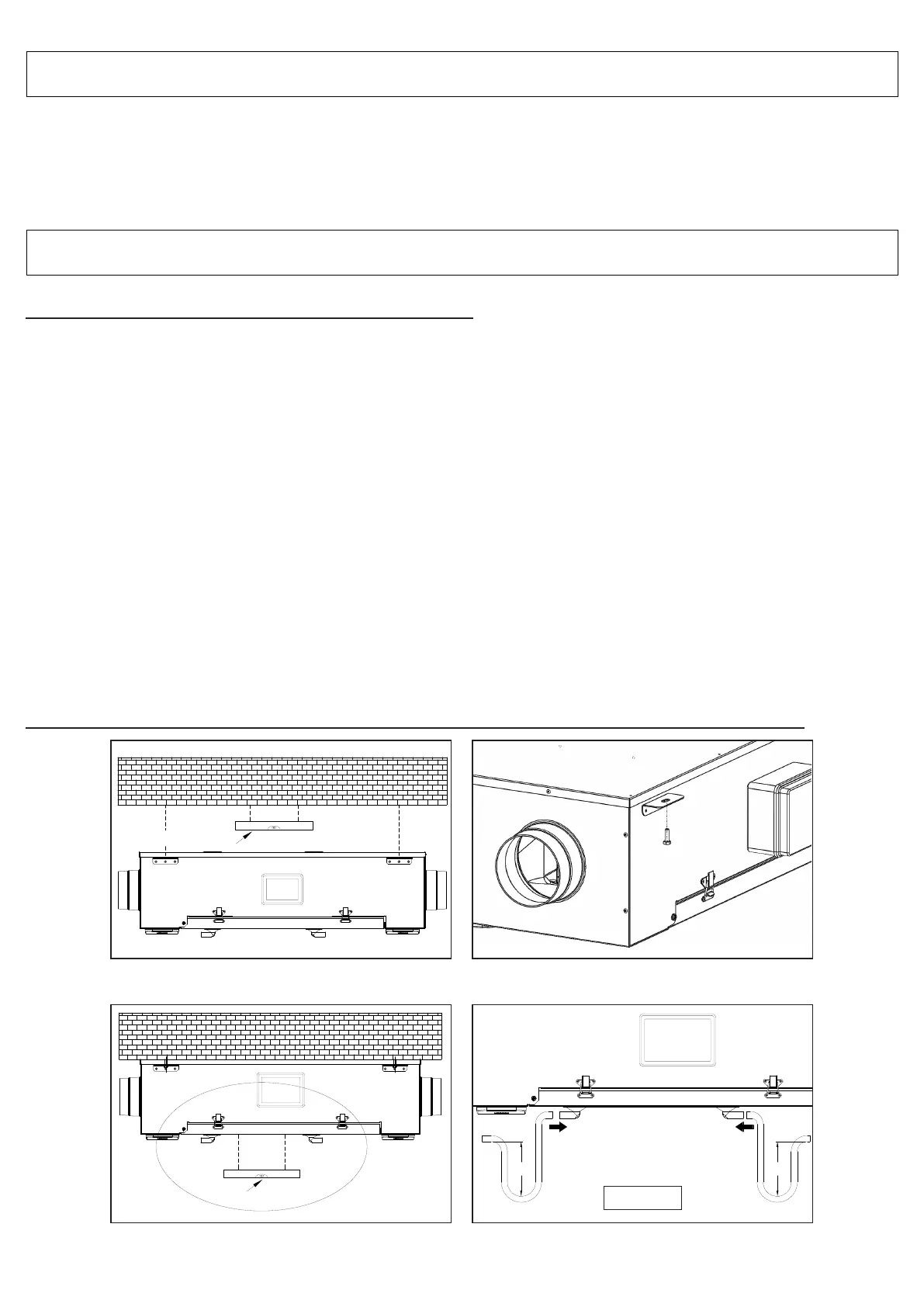

Fig 5.a Fig. 5.b

Fig. 5.c Fig. 5.d

H=min. 60mm

Spirit level

H H

Spirit level
