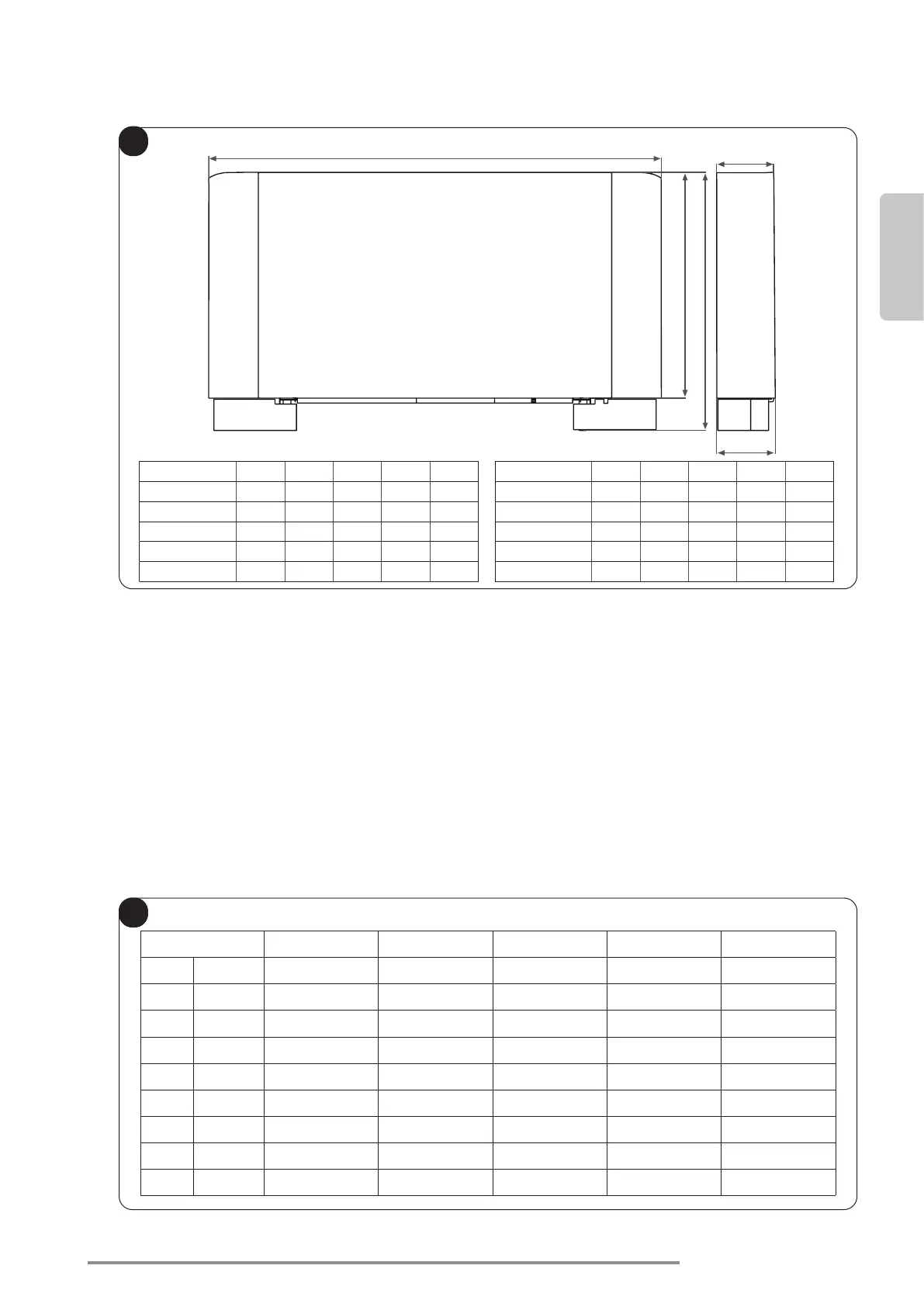

1.7 - OVERALL DIMENSIONS Bi2 (Fig.3)

 Seegure3andrefertothemodelinquestion.

1.8 - NOMINAL TECHNICAL FEATURES

 Refertothedatafortherespectivemodelinthetableingure4.

A Battery water contents

B Heating plate water content

C Maximum working pressure

D Maximum water inlet temperature

E Minimum inlet water temperature

F Hydraulic xtures

G Power supply

H Weight SL

I Weight SLR

For information on electrical consumption see the technical features plate on the unit.

SLR SMART 200 400 600 800 1000

A (mm) 759 959 1159 1359 1559

B (mm) 579 579 579 579 579

C (mm) 659 659 659 659 659

D (mm) 129 129 129 129 129

E (mm) 150 150 150 150 150

SL SMART 200 400 600 800 1000

A (mm) 759 959 1159 1359 1559

B (mm) 579 579 579 579 579

C (mm) 659 659 659 659 659

D (mm) 129 129 129 129 129

E (mm) 150 150 150 150 150

AD

E

B

C

200 400 600 800 1000

A l

0,47 0,8 1,13 1,46 1,8

B l 0,6

0,8 1,1 1,4 1,6

C bar 10

10 10 10 10

D °C 80 80 80 80 80

E °C 4 4 4 4 4

F “

Eurokonus 3/4 Eurokonus 3/4 Eurokonus 3/4 Eurokonus 3/4 Eurokonus 3/4

G V/ph/Hz

230/1/50 230/1/50 230/1/50 230/1/50 230/1/50

H kg

11,5

13 15,5 18,5 21,5

I kg

13,5 15,5 19,5 22,5 25,5
