MENU: HOME SCREEN

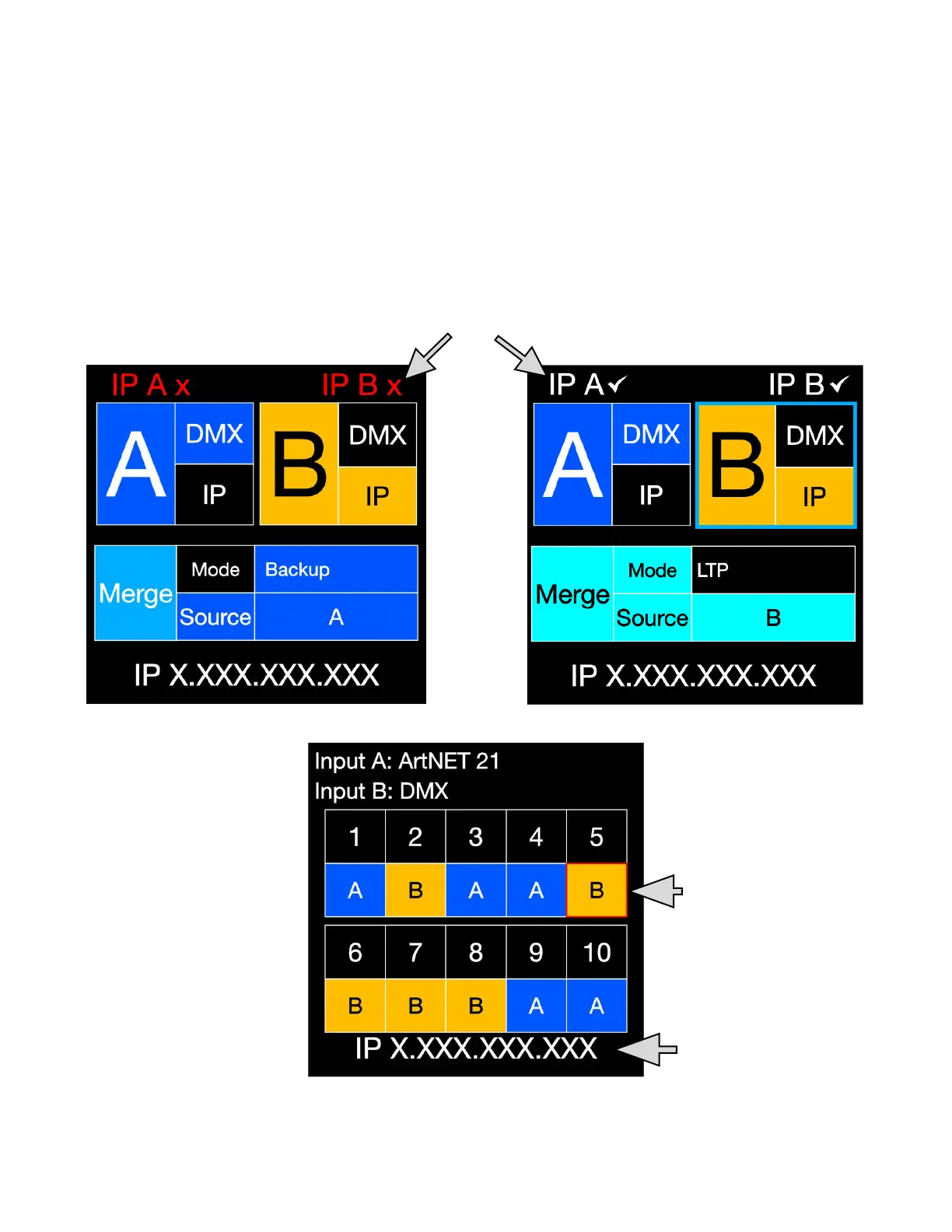

This is the default screen, which provides quick status feedback and indicates IP and DMX traffic. Turn the encoder
wheel to the right to show Page 2 (clockwise), or turn it left to show Page 1 (counterclockwise). The page defaults
to Page 1 after a timeout (the same timeout duration as with the menu).
Page 1
The home page shows the A and B input status. Valid traffic and the source are indicated with a full colored box.
The current merge mode and active source are displayed in the bottom half for immediate overview of the merge
activity. Certain Merge statuses like an active Backup will yield a red background, indicating that the unit triggered
its backup source.
Page 2
Ports: The port numbers show the assigned input source. A and B source assignments are displayed on top.
IP Address: shows the
current IP address of the
device. Use this address
inside a web browser for
remote access.
IP A / B: White text with a check mark indicates if a network port is
connected. Red indicated the port is not connected.
v
v
Universe Box:
Red Outline = Signal Lost
