4. ORGAN | 19
enabling various layered Organ sounds or a B3 manual combined with
the B3 Bass drawbars as a split or with one Layer played over MIDI.
ORGAN PRESETS
The Nord Stage 4 comes with a large selection of complete and ready-
to-use Organ Presets, including effects. These are browsed and loaded
using the ORGAN button in the PRESET LIBRARY area, of the central
Program section. User-created sounds can be stored to the Preset
Library as well, for quick and easy recall from within any Program.
Read more about the Preset Library on page 40.
DRAWBARS AND LED GRAPHS
The mechanical drawbars are accompanied by LED graphs. When a
program is loaded the LED graphs show the stored settings for the
drawbars, referred to as the Preset.
If the Preset is turned Off, the Organ is in Drawbar Live mode for that
Layer, meaning that the physical positions of the drawbars are used, in
which case the LEDs are unlit. Read more about Preset and Drawbar
Live further down.
l The drawbars can be Morph controlled, in Preset mode, if you
want to make dramatic changes with for example the Wheel or a
control pedal.
THE B3 MODEL
The B3 model is based on a digital model of the classic electro-
mechanical tonewheel organ. This simulation utilizes innovative and
advanced methods to capture every nuance of the original sound. Here
are some examples:
• An extremely accurate digital model of the original chorus and vibrato
scanner.
• Modeling of the individual contact bounces for each harmonic.
• Modeling of the unique frequency characteristics of the built-in pre-
amplifier, which forms the “body” of the sound.
• Simulation of the energy robbing on the tone wheels that results in the
typical “compressed” sound.
• Authentic tuning of the tonewheels according to the original design.
• Extremely fast keyboard response.
• Full polyphony.

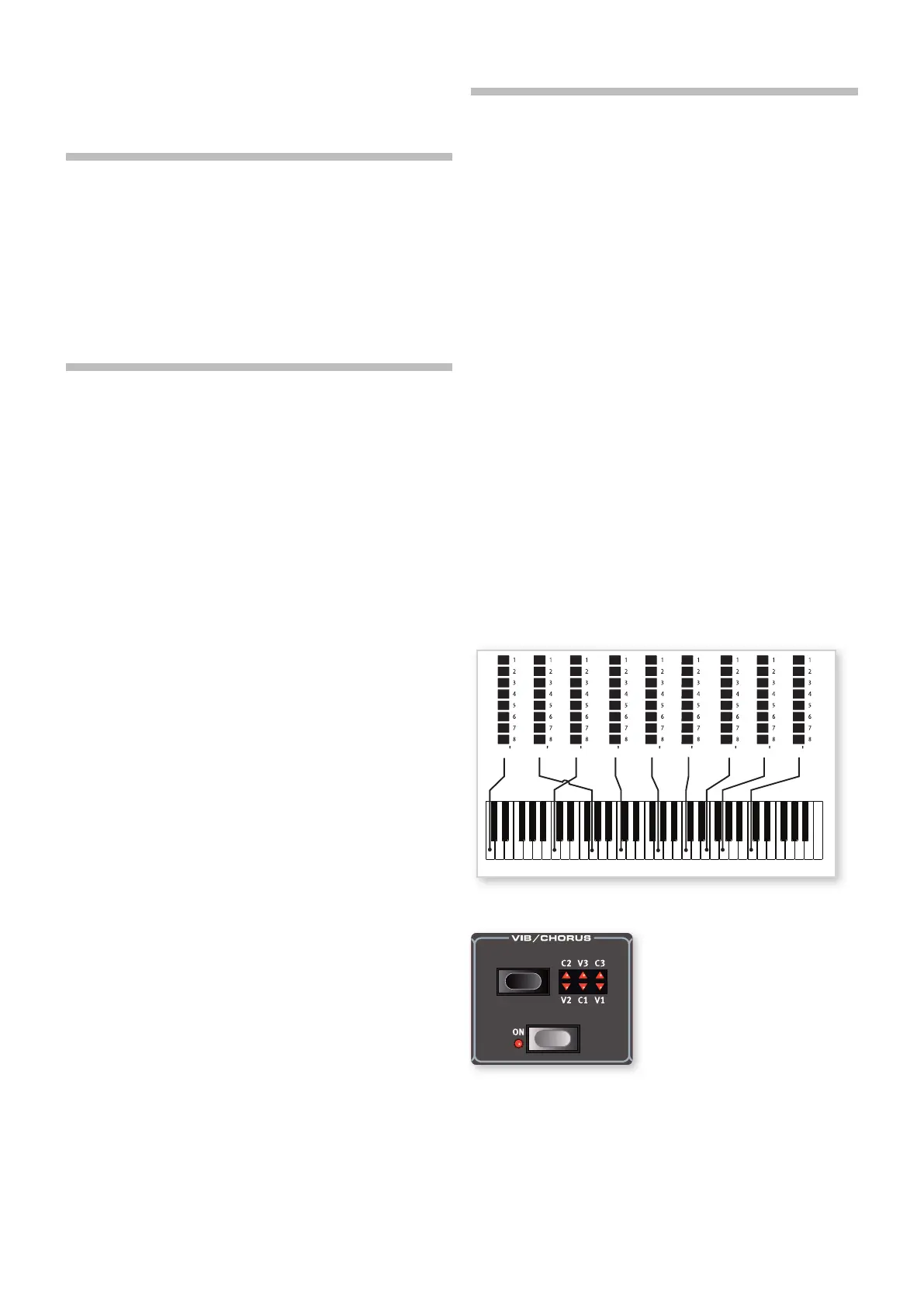

B3 DRAWBARS
The harmonic intervals for the tonewheel organ are printed on the panel
below the drawbars. Each drawbar represents a partial with a fixed
harmonic interval in relationship with the played note.The illustration
below shows the pitch interval among the nine drawbars when the key
of C3 is played. Note that the 5 ⅓′ drawbar actually is a 5th above the
fundamental harmonic (8′) but in most situations is perceived as
sounding below it.
VIBRATO & CHORUS
The original vibrato and chorus scanner in a tonewheel organ consists
of a modulated delay line in combination with a rotating scanner. For the
Vibrato effect, phase shift is applied to the signal. For the Chorus effect,
the phase-modulated signal is added to the original signal.
Three different types of choruses (C1-C3) and three different types of
vibratos (V1-V3) are available. Select one of these types by pressing the
Vibrato/Chorus selector button. The effect can be activated/deactivated
for each Layer individually by pressing the Vibrato/Chorus button for the
Layer A and Layer B “manuals”.
C3
16 5
⅓ ⅔ ⅗
8 4 2 1
⅓
1 1
2
