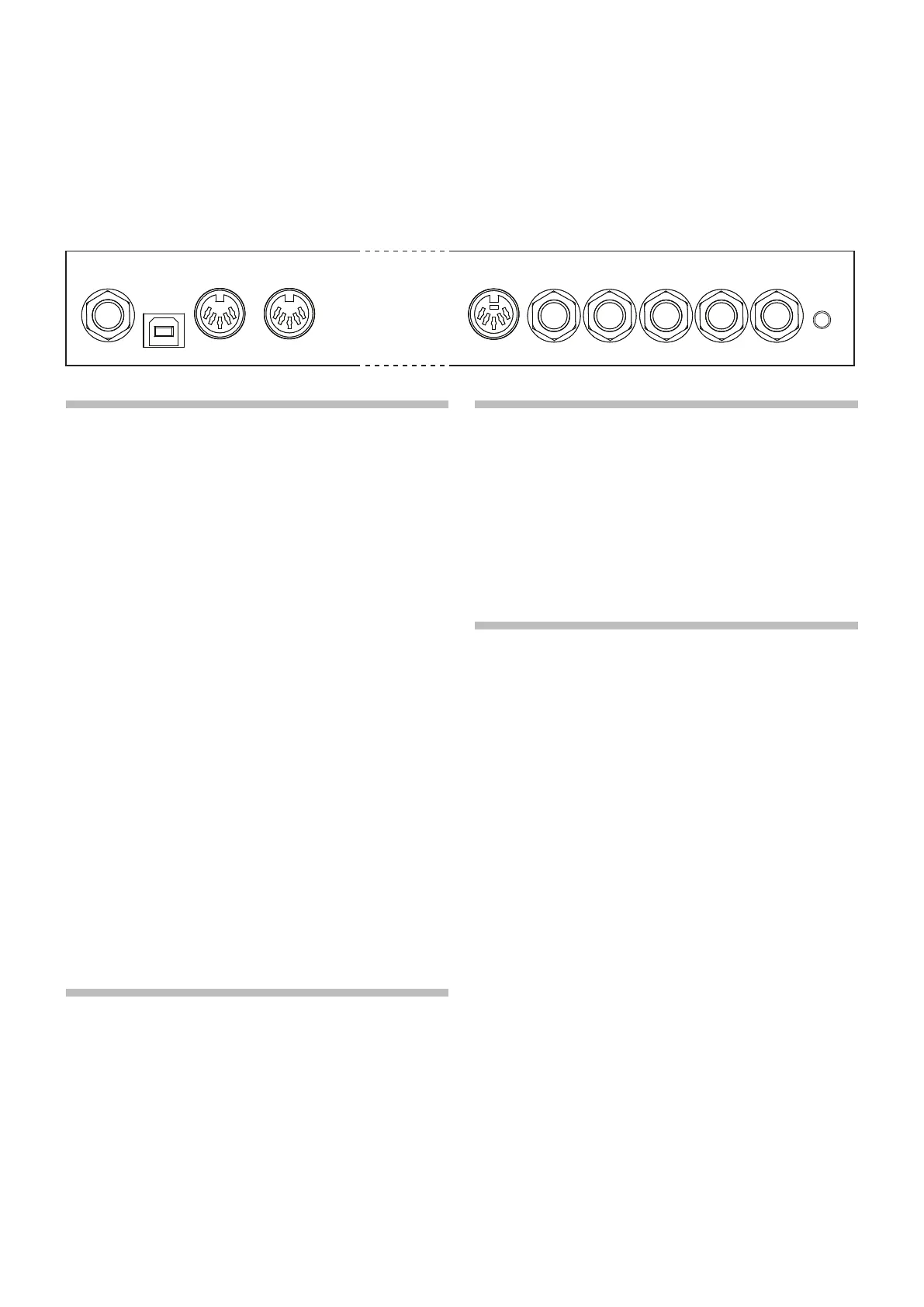

32 | NORD PIANO 6 USER MANUAL OS V1.1X
I
CONNECTIONS
AUDIO CONNECTIONS
General guide on audio connections: Before turning on your amplifier,
make all audio connections. Always turn on the amplifier last, and when
shutting down, always turn off your amplifier or active speakers first.
! Using your Nord Piano 6 at high volumes can damage your
hearing.
HEADPHONES
1/4 inch stereo headphone jack. Audio is always output through the
Headphones output, regardless of Output Routing settings.
LEFT & RIGHT OUT
1/4 inch unbalanced line level outputs for amplifier or recording
equipment. The Nord Piano 6 is a stereo instrument with separate
signal paths for left and right audio channels.
MONITOR IN
1/8 inch jack for connecting devices such as smartphones, tablets or
computers to the Nord Piano 6. This is useful for playing and rehearsing
to pre-recorded music or a metronome, or to use an additional sound
source on stage. The Monitor In signal is routed to the Headphones
and Left & Right outputs.
! The Nord Piano 6 Master Level control does not affect the level of
the Monitor In signal.
MIDI CONNECTIONS
MIDI IN
The 5 pin MIDI In connection is used for receiving MIDI data sent
from external devices such as controller keyboards, sequencers and
computers.
MIDI OUT
The 5 pin MIDI Out connection will send MIDI data to devices such as
external sound modules and computers.
USB CONNECTION
The USB port is used for connecting the Nord Piano 6 to a computer.
The connection can be used for transferring MIDI, for OS updates and
for connecting to applications such as the Nord Sound Manager or
Nord Sample Editor. These applications, and the latest OS version can
always be found for download at www.nordkeyboards.com.
i MIDI over USB and standard 5 pin MIDI connectors are both
always active at the same time.
PEDAL CONNECTIONS
TRIPLE PEDAL
The TRIPLE PEDAL input jack is only compatible with the Nord Triple
Pedal 2 (TP-2) unit. The three pedals can be used exclusively for Piano
related functionality and Sustain, or for controlling a number of other
functions. See the Pedal menu on page 30 for further details.
SUSTAIN PEDAL
1/4 inch connector for all common types of sustain pedals, as well as
for the Nord Triple Pedal 1. Sustain pedal type and polarity is set in the
Pedal menu, see page 30.
VOL/CTRL PEDAL
1/4 inch connector for an expression pedal of continuous type, used
for controlling Piano and/or Sample Synth volume, and/or Effect 1
amount. Most of the common expression pedal makes and models are
supported, and can be selected in the Pedal menu, see page 30.
FOOT SWITCH
1/4 inch connector for a one or two button, momentary pedal. The Foot
Switch can be assigned to a variety of functions, such as changing
Programs and controlling Sample Synth Vibrato. See the Pedal menu
on page 30 for details on how to set this up.
FOOT SWITCH MIDI OUT MIDI IN
LEFT OUT HEADPHONES MONITOR
IN
RIGHT OUT
VOL/CTRL
PEDAL
SUSTAIN
PEDAL
TRIPLE
PEDAL
USB
FOOT SWITCH MIDI OUT MIDI IN
LEFT OUT HEADPHONES MONITOR
IN
RIGHT OUT
VOL/CTRL
PEDAL
SUSTAIN
PEDAL
TRIPLE
PEDAL
USB
