12 | NORD PIANO 6 USER MANUAL OS V1.1X

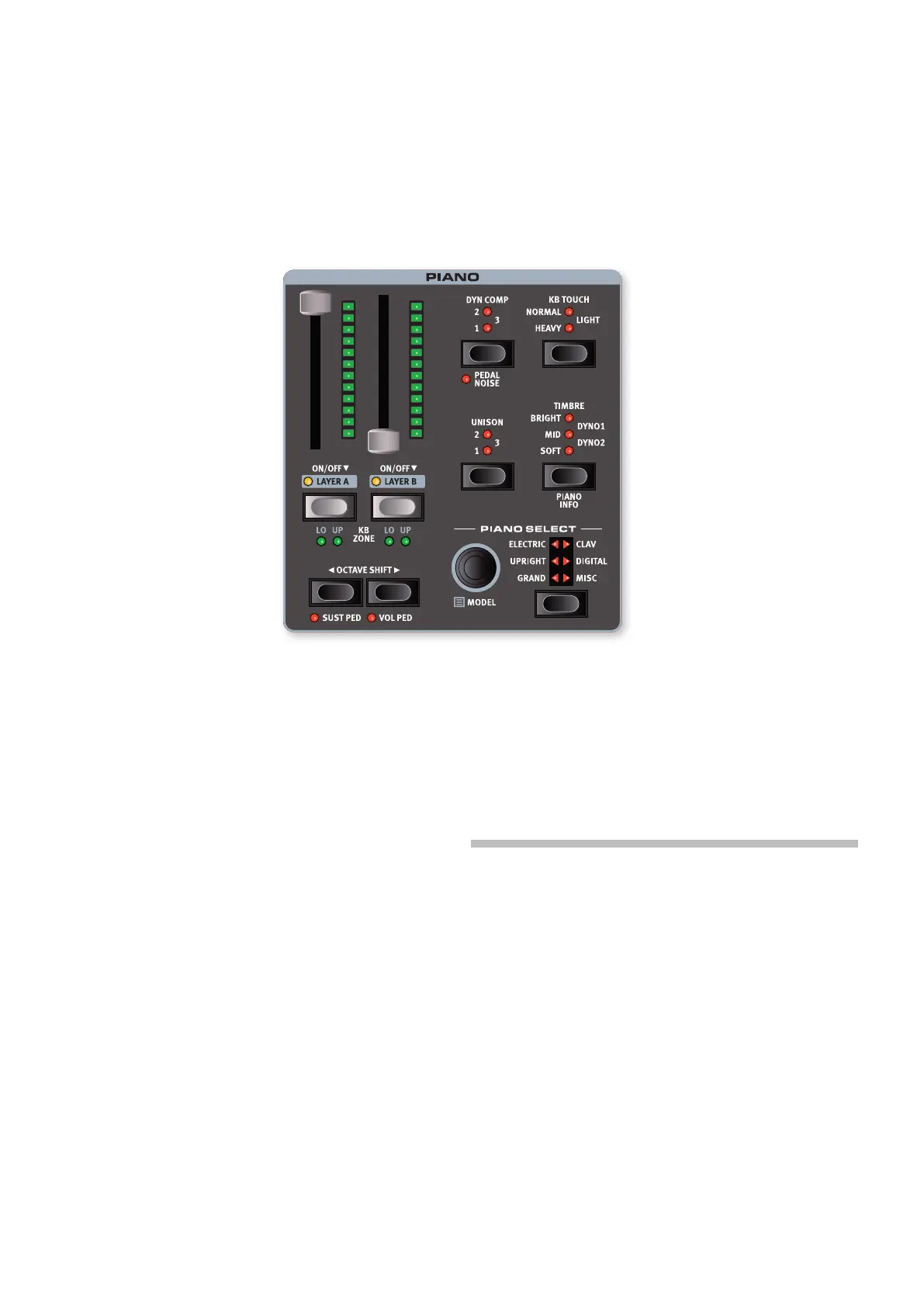

ON/OFF AND LEVEL
The Piano section is turned on by pressing either LAYER button. The
LED equipped faders control the output level of each Piano Layer.
LAYER BUTTONS AND FX FOCUS
There are two Piano Layers; A and B. Turning a second Layer On is
done by pressing both Layer buttons simultaneously. Turning a Layer Off
is done by holding its button down for a short period of time.
To toggle from one Layer to the other, press the non-active Layer button.
With both Layers active, the focused Layer is indicated by a blinking
LED above the Layer button.
Pressing a Layer button also focuses that Layer’s effects for editing,
indicated by the FX FOCUS LED at in the effects section and the Layer
LED being lit with a red light.
KB ZONE
Press KB ZONE (Shift+Layer A/B), to assign the focused Piano Layer to
any of the active keyboard zones. The green LEDs indicate whether the
Layer is assigned to the LO (lower), UP (upper) or both keyboard zones.
Read more about Split set-ups and keyboard zones on page 18.
OCTAVE SHIFT
Use OCTAVE SHIFT 3/4 to transpose the selected Piano Layer up
or down by octaves (+/- 12 semitones). When assigned to the entire
keyboard it can be transposed one octave up or down. When assigned
to a smaller zone the available transpose values will vary, but always
provide access to the entire range of the Piano.
SUST PED AND VOL PED
SUST PED (Shift+Octave Shift Down) activates any attached sustain
pedal for the selected Piano Layer. Read more on how to configure
attached pedals in the Menus chapter, on page 29
VOL PED (Shift+Octave Shift Up) activates an attached control/volume
pedal as volume control for the selected Piano Layer. The LED fader can
still be used to set the maximum volume level of the selected Layer.
ABOUT THE PIANO SOUNDS
The Pianos in the Nord Piano 6 are organized into six types. Each type
can contain several instrument models. New piano sounds can be
downloaded from the www.nordkeyboards.com website and added to
the Nord Piano 6 by using the Nord Sound Manager.
The Nord Piano 6 has 2 GB of memory for Piano sounds and provides
an extensive collection of carefully selected pianos of all types, right out
of the box. Much effort was made to ensure a nuanced response and
sound, matching the original models as closely as possible. Each piano
has been sampled with a vast amount of velocity levels, which is one
reason why they all sound and feel so authentic.
i When you download piano sounds with the Nord Sound Manager,
these are automatically placed into their corresponding Type.
If a Program references a piano that is currently not downloaded onto
the Nord Piano 6, the type LED will flash, and the display will read
“Piano not found”. If this happens, you can either navigate to another
instrument Model of the selected (or any other) type and select to use
this piano instead, or use the Nord Sound Manager application to
download the missing instrument.
4
PIANO SECTION
