13. Module reference: FX group NORD MODULAR G2 V1.4x
Page 252
B
RIGHTNESS
Set the high frequency content of the reverberated signal with the knob. Basically this setting simulates
distance, softness of the walls, atmospheric damping, etc., depending on the other reverb settings. The
most natural range is between 25 and 50.
D
RY
/W
ET
Set the mix of dry and reverberated signal to be sent to the stereo outputs. See also "Common FX group
parameters”.
T
YPE
Select reverb type between Small, Medium, Large and Hall with the drop-down selector.
Note that changing reverb type will force the Sound Engine to recalculate and thus cause a brief moment
of silence.

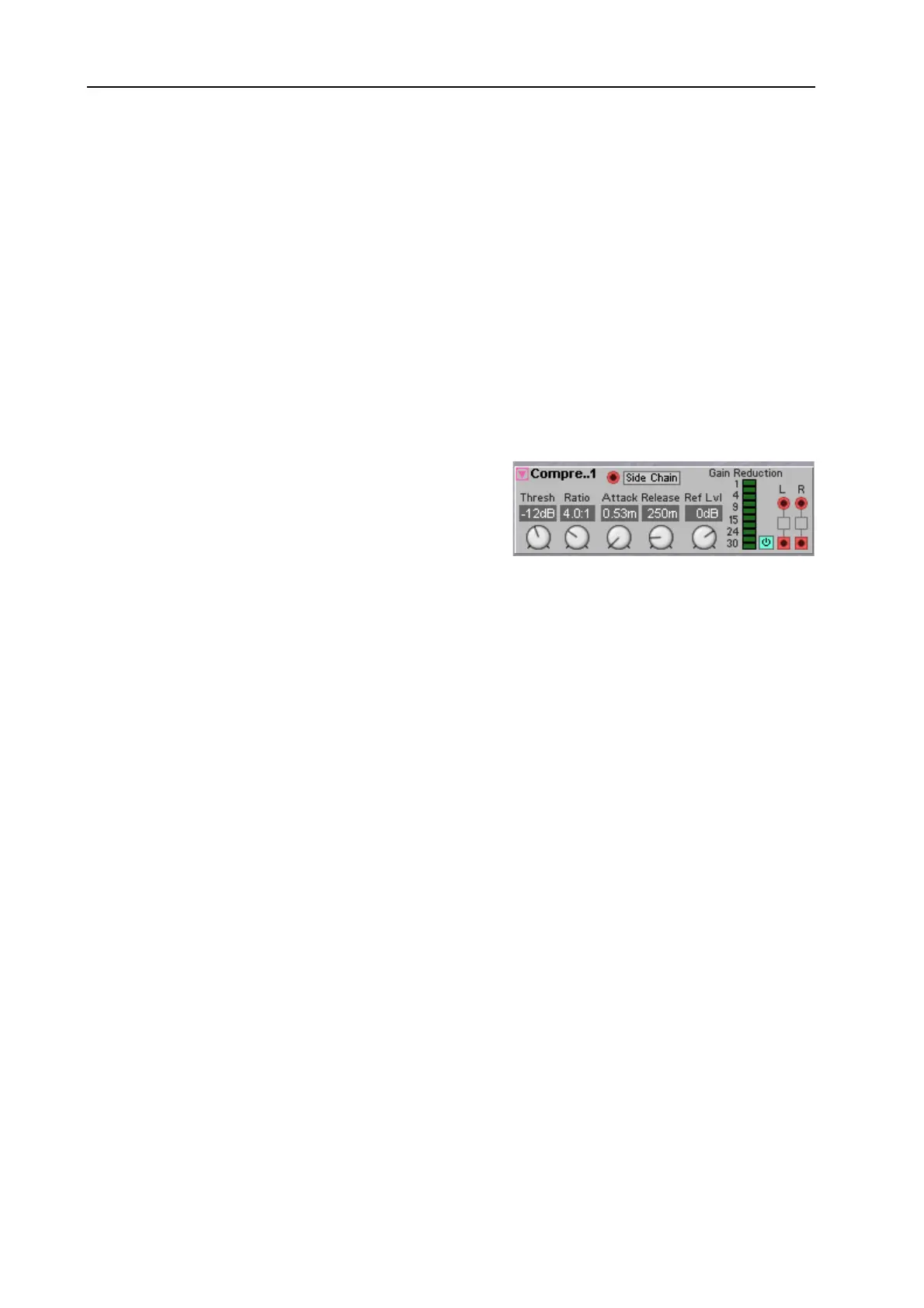

C
OMPRESS
The stereo Compressor module compresses an input
signal by amplifying weak signals attenuating strong
signals and thus reducing the dynamic range. The
practical result of a compressed signal is that the volume
is more even over time. A compressor can be very useful
on a drum mix or basses to make the sound sit “right in
your face”. It can also be very useful on a final mix to add more presence and “punch” to the mix.
S
IDE
C
HAIN
The Side Chain input is used for an external audio signal to control the compressor. The Side Chain signal
will not be mixed with the other input signals, it will just be used to control the compressor. Activate the
Side Chain function by pressing the Side Chain button.
T
HRESH
With the Thresh knob you set the threshold above which compression is activated, i.e the minimum input
value to activate the compression. Range: -30 to 11 dB and Off.
R
ATIO
With the Ratio knob you set the compression ratio above the set Threshold level. 1.0:1 means no
compression and 80:1 maximum compression. Range: 1.0:1 to 80:1.
A
TTACK
With the Attack knob you set the response time of the compressor, i.e the time between input signal
above the Threshold level and compressor activation. Range: Fast (0.5 ms) to 767 ms.
R
ELEASE
With the Release rotary knob you set the release time, i.e the time it takes for the compressor to return
to the original input level. Range: 125 ms to 10.2 s.
R
EF
L
VL
With the Ref Level knob you set the level to compress the stereo signals towards. Range: -30 to +12 dB.
G
AIN
R
EDUCTION
LED
S
This LED indicator shows the gain reduction of the sum of the left and right channels in dB. See also
"Common FX group parameters”.
