13. Module reference: Sequencer group NORD MODULAR G2 V1.4x
Page 244
of each step by clicking on the desired “key” in the window. Where in the total keyboard range the notes
are placed is determined with the Magnifier and Octave selector described below. If note values should
be outside the currently visible keyboard range, these will be indicated by triangular arrows in the window.
M
AGNIFIER
Click on the Magnifier to select the visible keyboard range in the Note Sequencer between 1, 2 and 3
octaves. Note that if you click the Rnd button to randomly distribute note values, the notes will be
distributed only within the range selected with the Magnifier control.
O
CTAVE
SELECTOR
Click the Octave selector to select the highest note in the Piano roll window. Range: C0-C7. See also
"Common Sequencer parameters”.
S
EQ
C
TR

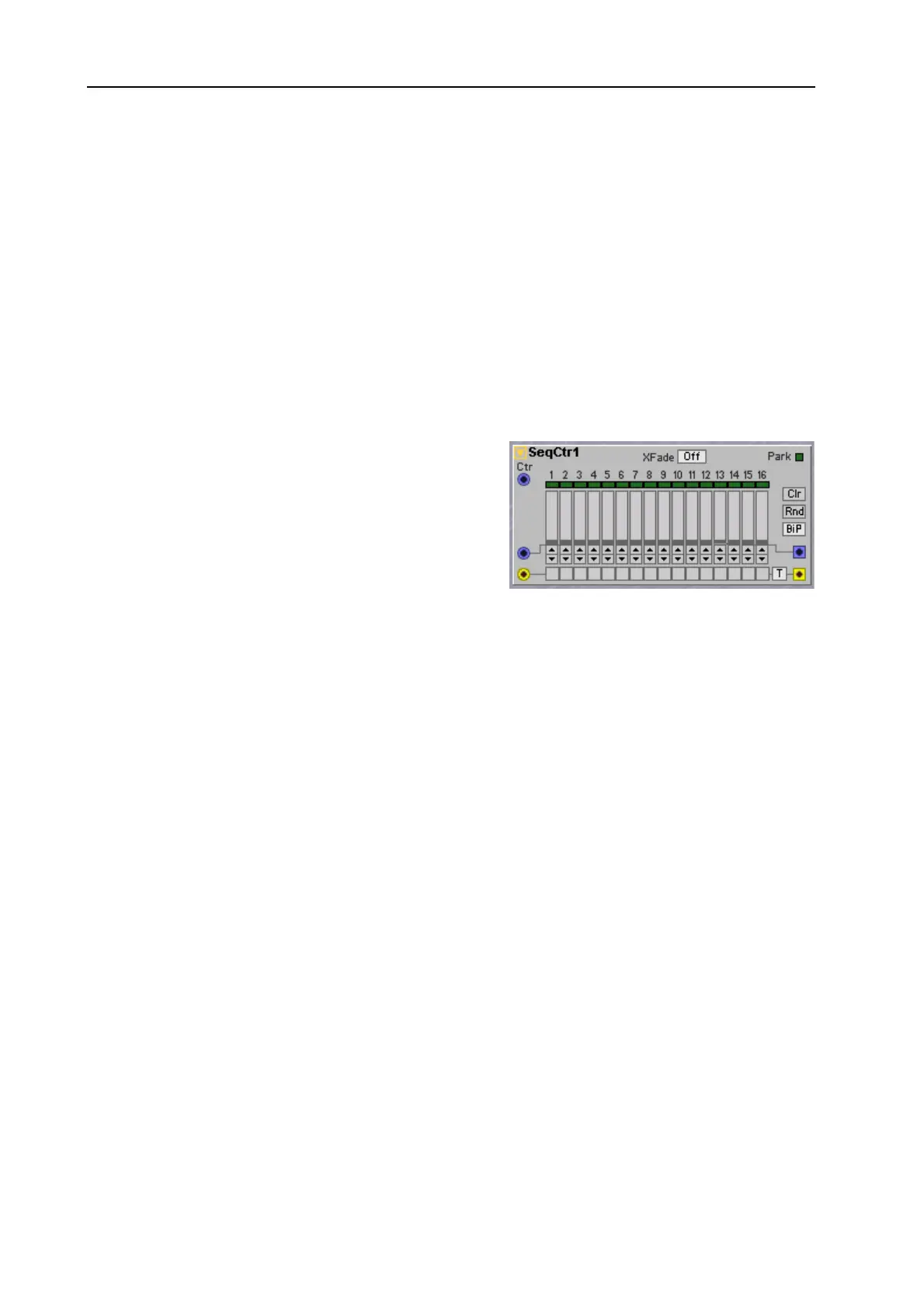

The Control Sequencer is special in the way that instead
of controlling the step advancement by incoming clock
pulses, the step position is controlled by an incoming
control signal value. This makes it possible to control the
current step, step advancement, and directions by means
of a modulation signal. The shape of this modulation
signal defines how you step through the sequence. This
gives you total freedom on how you play your patterns.
Row chain inputs work as on the other sequencer modules. There is an additional row of Step buttons
for sending out a Trig/Gate signal for every step in the sequence.
Tip! Basically this module is a lookup table with the Ctr signal serving as an index or address in the table.
When the Voice Nr. output of the Status module is patched to the Ctr input, slider1 will control a value
for voice1, slider2 for voice2 etc. This way you can have separate control values for each voice.
Note that when connecting an Lfo waveform the waveform must be set to unipolar.
C
TR
INPUT
The D
YNAMIC
C
ONTROL
/A
UDIO
signal input for controlling the step numbers. The steps respond to
the following input signal values: Step 1: 0 to <4, Step 2: 4 to <8, Step 3: 8 to <12, Step 4: 12 to <16,
Step 5: 16 to <20, Step 6: 20 to <24, Step 7: 24 to <28, Step 8: 28 to <32, Step 9: 32 to <36, Step 10: 36
to <40, Step 11: 40 to <44, Step 12: 44 to <48, Step 13: 48 to <52, Step 14: 52 to <56, Step 15: 56 to
<60 and Step 16: 60 to 64.
XF
ADE
SCROLL
BUTTON
Another special feature of the Volt Sequencer module is the ability to crossfade in a linear fashion
between values of adjacent steps. Click the XFade scroll button to select degree of crossfade. Values: Off,
25%, 50% and 100%. See also "Common Sequencer parameters”.
S
EQUENCING
EXAMPLES
G
ENERAL
INFORMATION
• Always use the Clock Generator set to Master mode to clock the sequencer modules if you sequence
note patterns andu se the Active output on the Clock generator to reset the sequencers. This will make
it much easier to have other slots and other
MIDI
gear play synchronized in the same tempo. Use the
