NORD MODULAR G2 V1.4x 13. Module reference: Level group
Page 227
module and how it interfaces with the panel controls, is a very powerful feature of the G2. Use it, as the
text you put on the button will give you the right hints in the displays when you’re on stage.
See also "Common Level module parameters”.
L
EV
A
DD

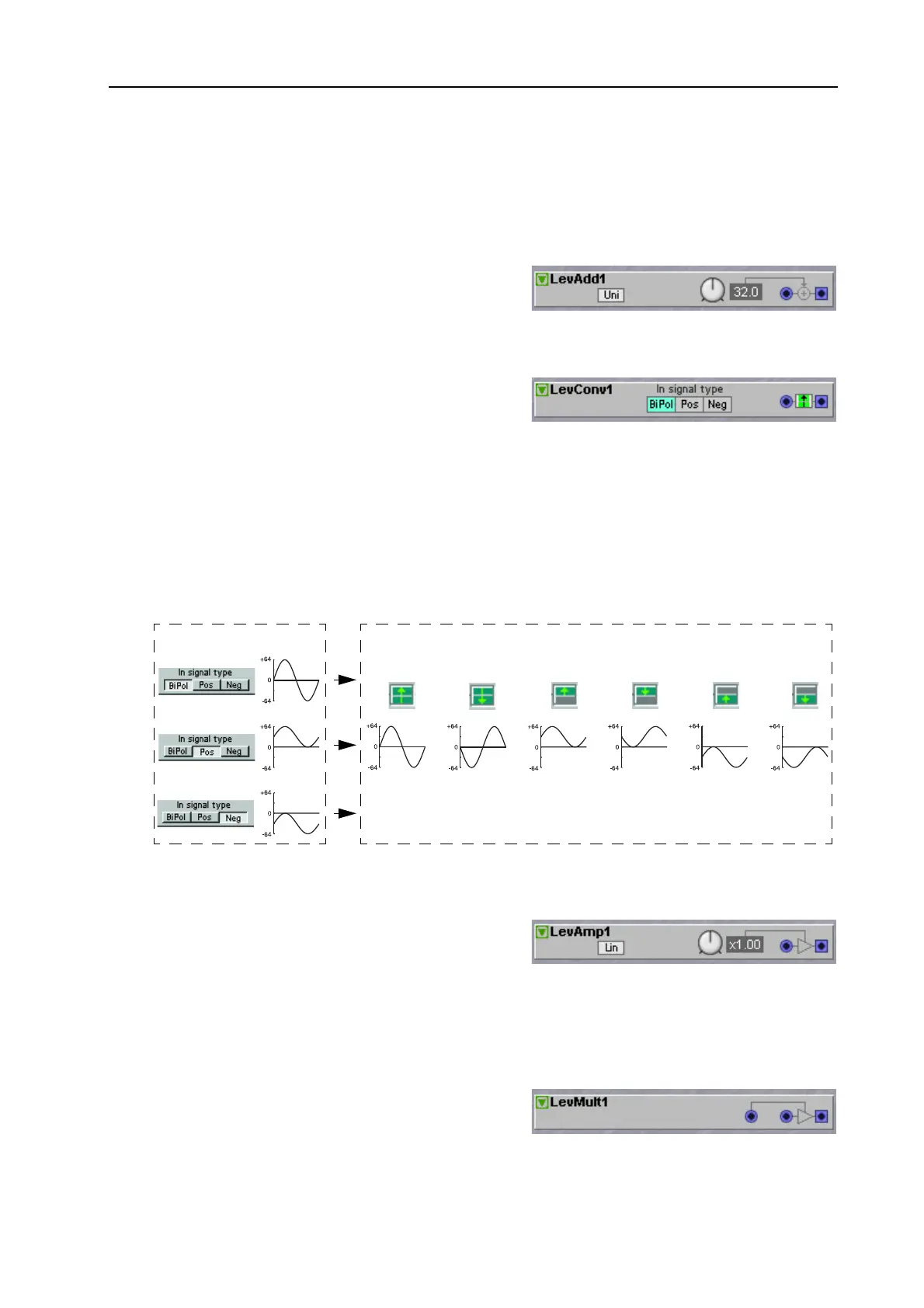

The LevAdd module can be used to add or subtract an
offset (bias) to a signal. See also "Common Level
module parameters”.
L
EV
C
ONV
The Level Converter module can be used to change
polarity of an incoming signal and then output it at
selectable polarity and/or phase-shifted 180 degrees.
B
I
P
OL
, P
OS
AND
N
EG
RADIO
BUTTONS
Use these radio buttons to “instruct” the module which type of input signal to expect. This is important
because otherwise the conversion won’t be what you’d expect. (Of course, you won’t harm the system
by selecting the “wrong” signal type).
O
UTPUT
T
YPE
SCROLL
BUTTON
Select the type of conversion by clicking the scroll button. The figure below shows the output signal
types:
See also "Common Level module parameters”.
L
EV
A
MP
This module can amplify or attenuate a signal.
A
MPLIFICATION
KNOB
Select the desired amplification/attenuation with the knob. Any value above 1.0 amplifies the signal, any
value below attenuates it. Range: 0.25 to 4.0 times the input level. See also "Common Level module
parameters”.
L
EV
M
ULT
The Level Multiplier module performs the same
functions as a traditional VCA, a voltage controlled
amplifier, in a analog system would do. It multiplies two
Input signal types
Output signal types
Bip
BipInv
Pos
PosInv
Neg
NegInv
