SHAPER GROUP
In the Shaper module group you will find modules that changes the shape of an input audio signal in
different ways. Distortion modules can be found here, for example.

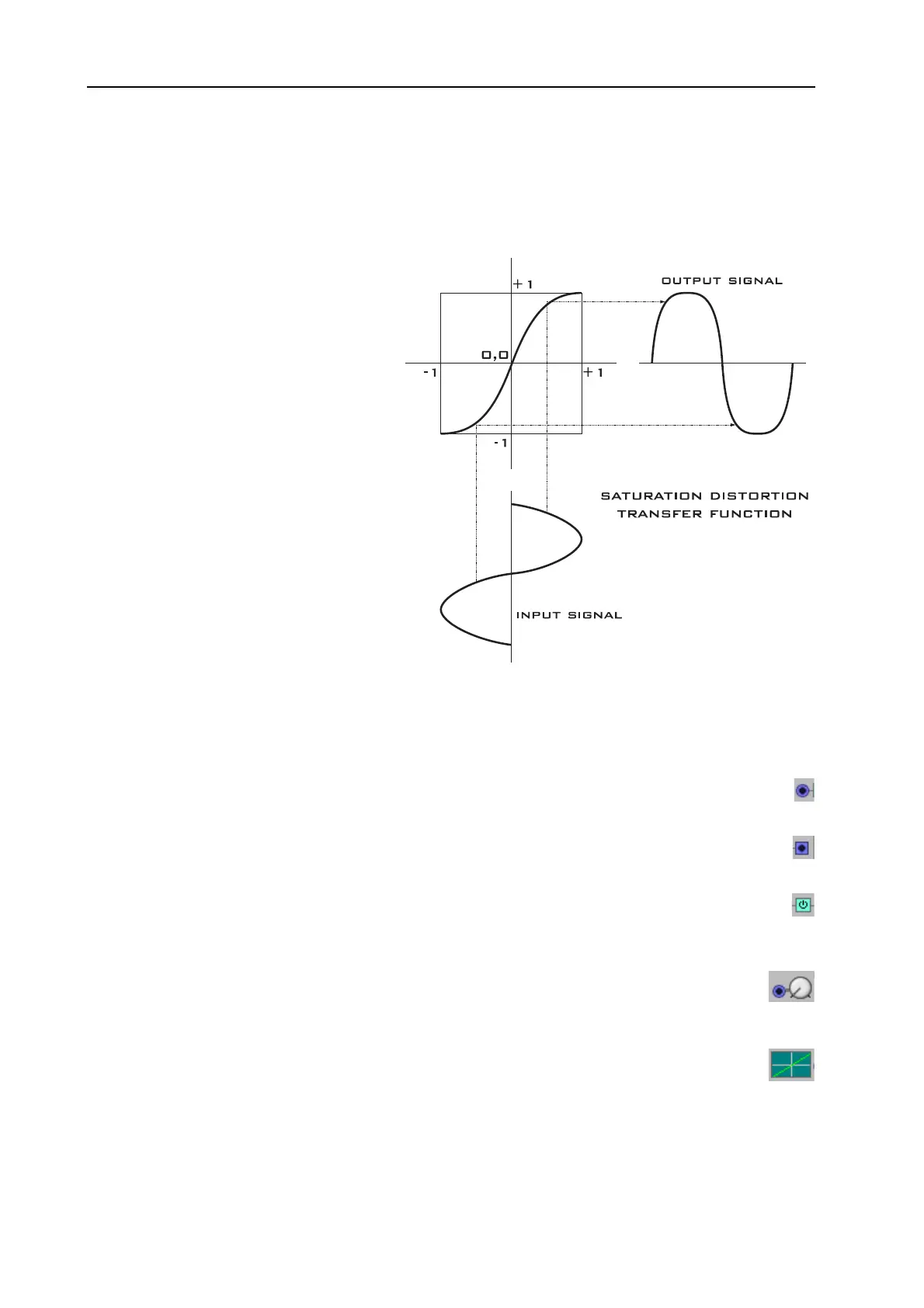

Shaper modules will change the
momentary amplitude of a signal
according to what is named a transfer
function. A transfer function is basically
a graph with a X-axis and a Y-asis. The
momentary value of the input signal is
set out on the X-axis and then a straight
vertical line is drawn towards the graph.
When the corresponding point on the
graph is found, a straight horizontal line
is drawn to the Y-axis and the value that
is found on the Y-axis is output by the
module. If the graph is a straight
diagonal line there will be no distortion,
as the transfer function is said to be
linear (=a straight line). But when the
graph is a curve, there will be distortion
applied to the signal. This distortion can
be controlled by changing the shape of
the curve. As the curve is not a straight
line the distortion is said to be non-
linear.
C
OMMON
S
HAPER
PARAMETERS
I
NPUT
The D
YNAMIC
C
ONTROL
/A
UDIO
signal input on the Shaper modules.
O
UTPUT
Signal: B
IPOLAR
OR
U
NIPOLAR
C
ONTROL
/A
UDIO
.
O
N
/B
YPASS
Click the On/Bypass button to bypass the input signal from the effect. Blue button color indicates
‘On’ and gray ‘Bypass’.
M
ODULATION
INPUT
The D
YNAMIC
C
ONTROL
/A
UDIO
signal modulation input on the Shaper modules. The
modulation amount can be attenuated with the knob of [A
TTENUATOR
T
YPE
I].
GRAPH
Displays the shape function graphically. The Y-axis represents the output signal values, and the
X-axis the input signal values.
