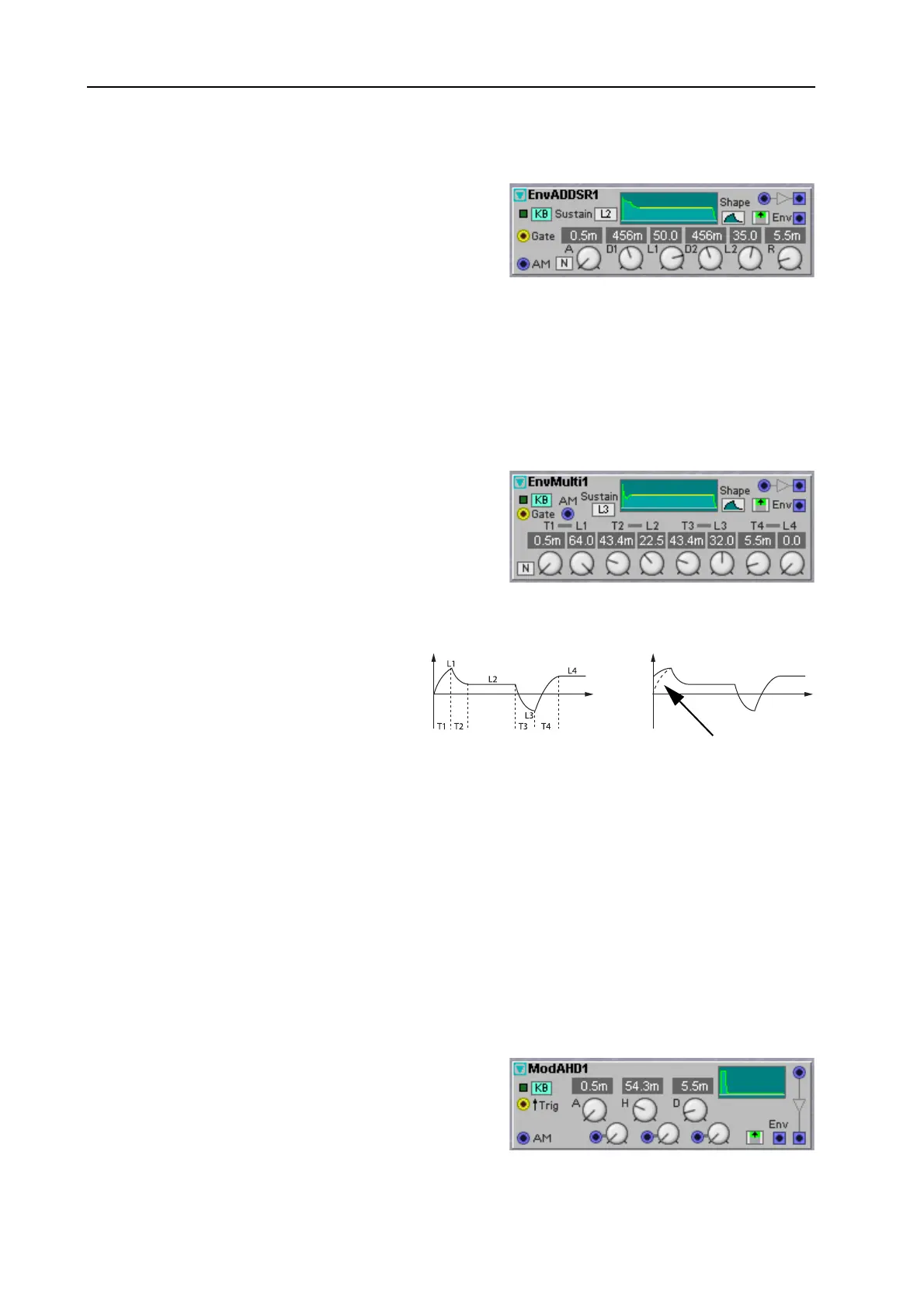

13. Module reference: Envelope group NORD MODULAR G2 V1.4x
Page 202
E
NV
ADDSR
This is what you could call an enhanced ADSR-
envelope. It features Attack, Decay, Break, Decay, Break
and Release controls. The sustain segment is selectable
between the first and second Brake stage.
S
USTAIN
SCROLL
BUTTON
Click to select stage L1 or L2 as sustain segment.
L1 & L2
These are level parameters. The L1 or L2 segment can be selected to act as sustain stage and will then
represent the level at which the envelope will be held (sustain) when the Gate signal is high. See also
"Common Envelope Generator parameters”.
E
NV
M
ULTI
The Multi stage envelope is a 5-segment time and level
envelope with selectable sustain segment.
L1-L4
By turning the rotary knobs L1 to L4 you can set the
amplitude of each of the four level segments in the
envelope. The envelope always ends at the L4 level,
which can indeed be different from the initial start level.
When you then restart the envelope at
the L4 stage, the start level will be the
same as L4. If the R button is depressed,
the envelope will always restart at zero
level. The levels can be either unipolar or
bipolar as described above. The levels are
displayed in units in the corresponding
display box. Ranges: 0 to 64 units
(unipolar) or -64 to +64 units (bipolar).
T1-T4
Here you set the times between the four level stages.
S
USTAIN
SCROLL
BUTTON
By clicking the Sustain scroll button you define the sustain segment. This segment can be any of the four
level segments, or, if you wish, none at all. The sustain segment works like in an ordinary ADSR envelope,
i.e this is the level that sustains as you hold down the key(s). After releasing the key(s) the envelope will
continue till the end of T4 and stop at the L4 level. Range: None and L1 to L4. See also "Common
Envelope Generator parameters”.
M
OD
AHD
The AHDMod envelope is an Attack-Hold-Decay
envelope with control signal inputs for modulating
The straight line at the T1 segment indicates the restarted
(bipolar) envelope without the R button depressed and the
dotted line with the R button depressed.
