NORD MODULAR G2 V1.4x 13. Module reference: Oscillator group
Page 181

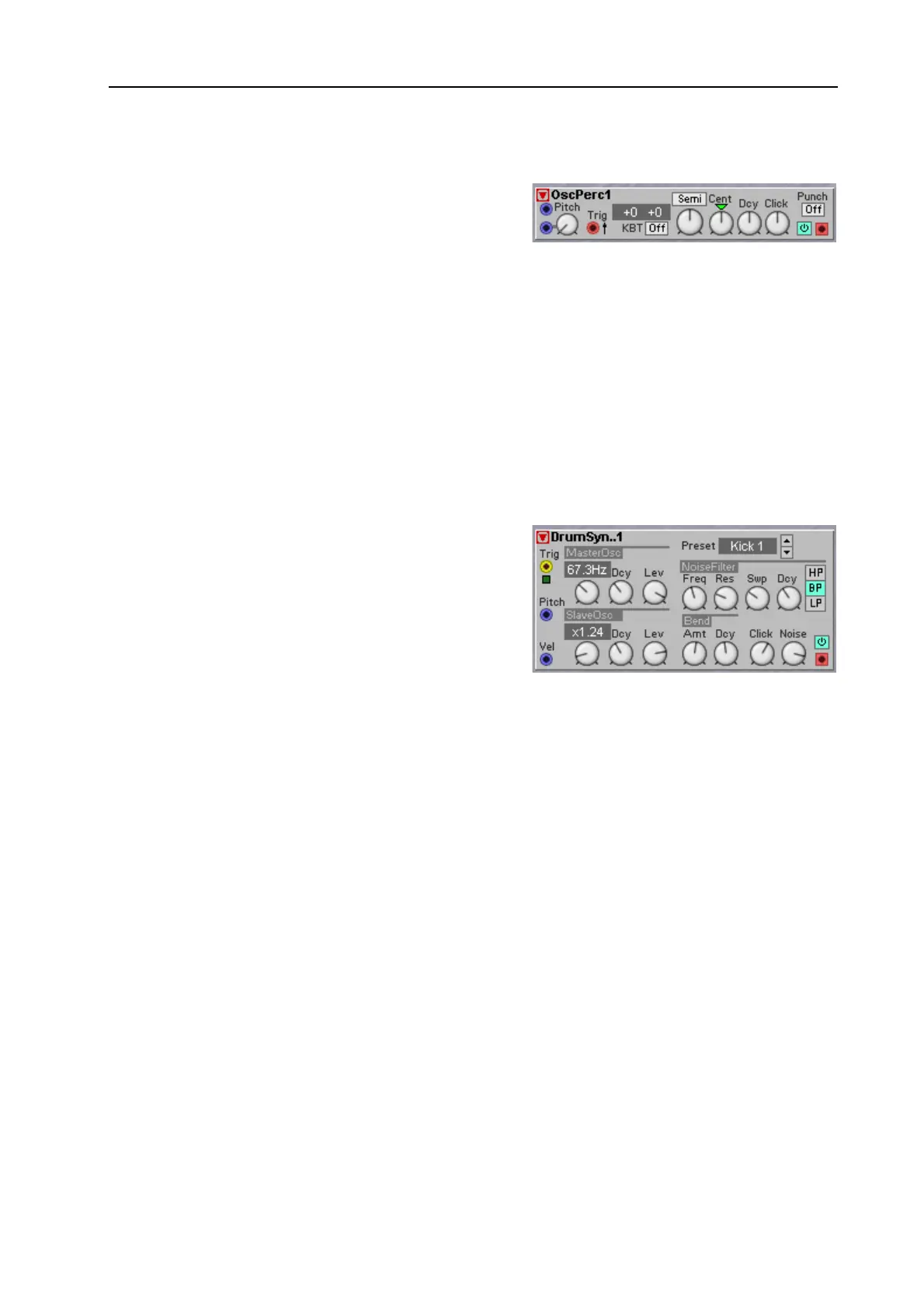

O
SC
P
ERC
This oscillator generates a damped sinewave after being
triggered on the Trig input.
T
RIG
INPUT
Use this input to trig the sound. The red color of the input indicates that it also accepts audio frequency
signals.
D
CY
Sets the decay time of the sound.
C
LICK
With the Click knob you can add a clicking sound to the attack of the sound.
P
UNCH
Adds a distinct attack to the sound by doubling the frequency of the first period of the signal.
D
RUM
S
YNTH
The Drum synth module is designed to generate classic
analog drumcomputer or rhythmbox sounds. It consists
of a master and a slave oscillator in combination with a
noise source and a multimode noise filter. The global
parameters include a bend function and a click and noise
mixer.
T
RIG
The yellow Trig input trigs the Drum synth module each time it receives a signal that changes from 0
units or below to anything above 0 units. This signal could come from a gate output of a Keyboard or
Sequencer module, for example. A green LED indicates when a trig signal is received.
V
EL
MODULATION
INPUT
This blue control input is used to receive velocity information from an external source. The input velocity
signal will affect Master and Slave Oscillator Level, Noise Filter Sweep, Bend Amount, Click Level and
Noise Level. Maximum input velocity will force the parameters to reach their current settings.
P
ITCH
MODULATION
INPUT
This blue control input is used to receive pitch data from an external module such as a Keyboard or
Sequencer module, for example.
M
ASTER
AND
S
LAVE
DISPLAY
BOXES
The Master display box shows the master pitch in Hz, and the Slave display box the pitch ratio related to
the master pitch. Range: Master: 20.0 Hz to 784 Hz. Slave: 1:1 to 6.26.
M
ASTER
AND
S
LAVE
KNOBS
These are the parameters of the two oscillators that generate the basic drum waveform.
T
UNE
: The tune of the Master can be set between 20.0 and 784 Hz. The Slave ranges from 1 to 6.26
times the Master frequency.
D
CY
: Decay determines the decay time for each oscillator. Range: 0.5 ms to 45 s.
L
EV
: With the Level knobs you set the respective volume of the two oscillators.
