13. Module reference: Oscillator group NORD MODULAR G2 V1.4x
Page 178
O
SC
S
HP
B

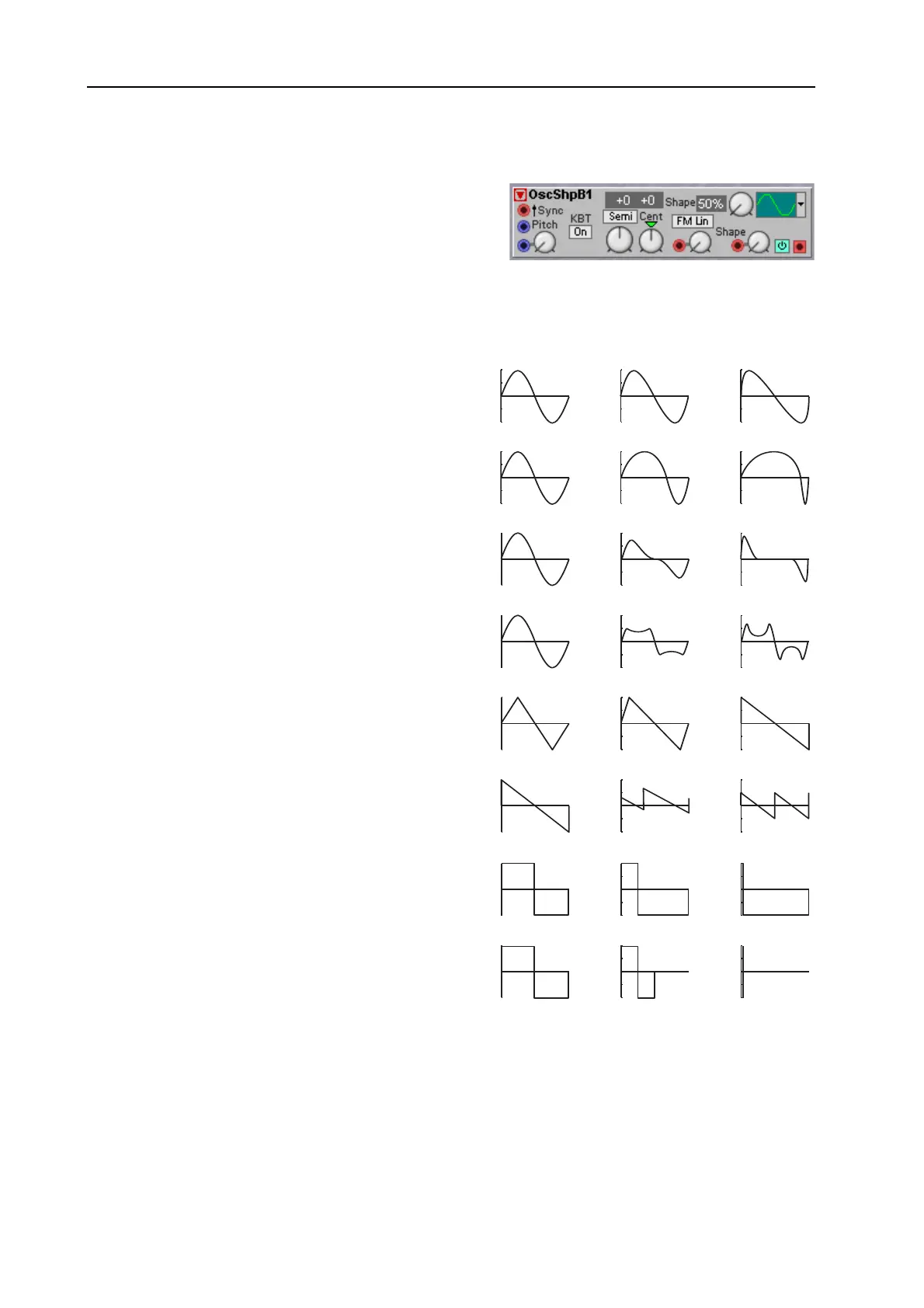

This Shape oscillator is able to generate a vast variety of
waveform shapes. There are eight basic waveforms to
choose between and since you can transform and
modulate the shape of these waveforms, it’s possible to
generate very interesting and varying signals.
W
AVEFORMS
AND
SHAPES
Sine1 is a phase modulated sine wave. At
50% Shape setting, the signal is a perfect
sine wave and at 99% similar to a
sawtooth wave. When the Shape is
modulated with negative values, the
signal is “mirrored”.
Sine2 is a Sine -> Double Sine signal. At
50% Shape setting, the signal is a pure
sine wave and at 99% Shape setting, the
first half of the period almost covers the
entire period length and the second half
is a very narrow “spike”. When the
Shape is modulated with negative
values, the signal is “mirrored”.
Sine3 is a Sine -> Even harmonics
signal. At 50% Shape setting, the signal
is a perfect sine wave and at 99% a lot of
even harmonics have been added. When
the Shape is modulated with negative
values, the signal is limited at pure sine
wave shape.
Sine4 is a Sine -> Odd harmonics signal.
At 50% Shape setting, the signal is a
perfect sine wave and at 99% a lot of
odd harmonics have been added. When
the Shape is modulated with negative
values, the signal is limited at pure sine
wave shape.
TriSaw is a Triangle -> Sawtooth signal.
At 50% Shape setting, the signal is a
perfect Triangle and at 99% a perfect
Sawtooth. When the Shape is modulated
with negative values, the signal is
“mirrored”.
Shape: 50% Shape: 75% Shape: 99%
Sine1:
Sine2:
Sine3:
Sine4:
TriSaw:
Pulse:
SymPulse:
DoubleSaw:
