13. Module reference: In/Out group NORD MODULAR G2 V1.4x
Page 160
G
ATE
This yellow output sends a
HIGH
logic level (+64 units) every time a key is pressed on the keyboard or a
MIDI
note-on is received at the M
IDI
I
N
port. The logic signal switches back to a
LOW
logic level (0 units)
when the last key is released. You can use this signal to start envelopes in the single-trigger fashion. If a
sustain pedal is activated, the logic signal will be
HIGH
for as long as the pedal is pressed. Signal: Logic.
V
EL
This blue output provides you with a control signal from the last/lowest/highest (depending on the
alternative above) note-on velocity. The velocity response of the Nord Modular G2 keyboard is linear
from this output. Signal: Unipolar Positive.
D
EVICE

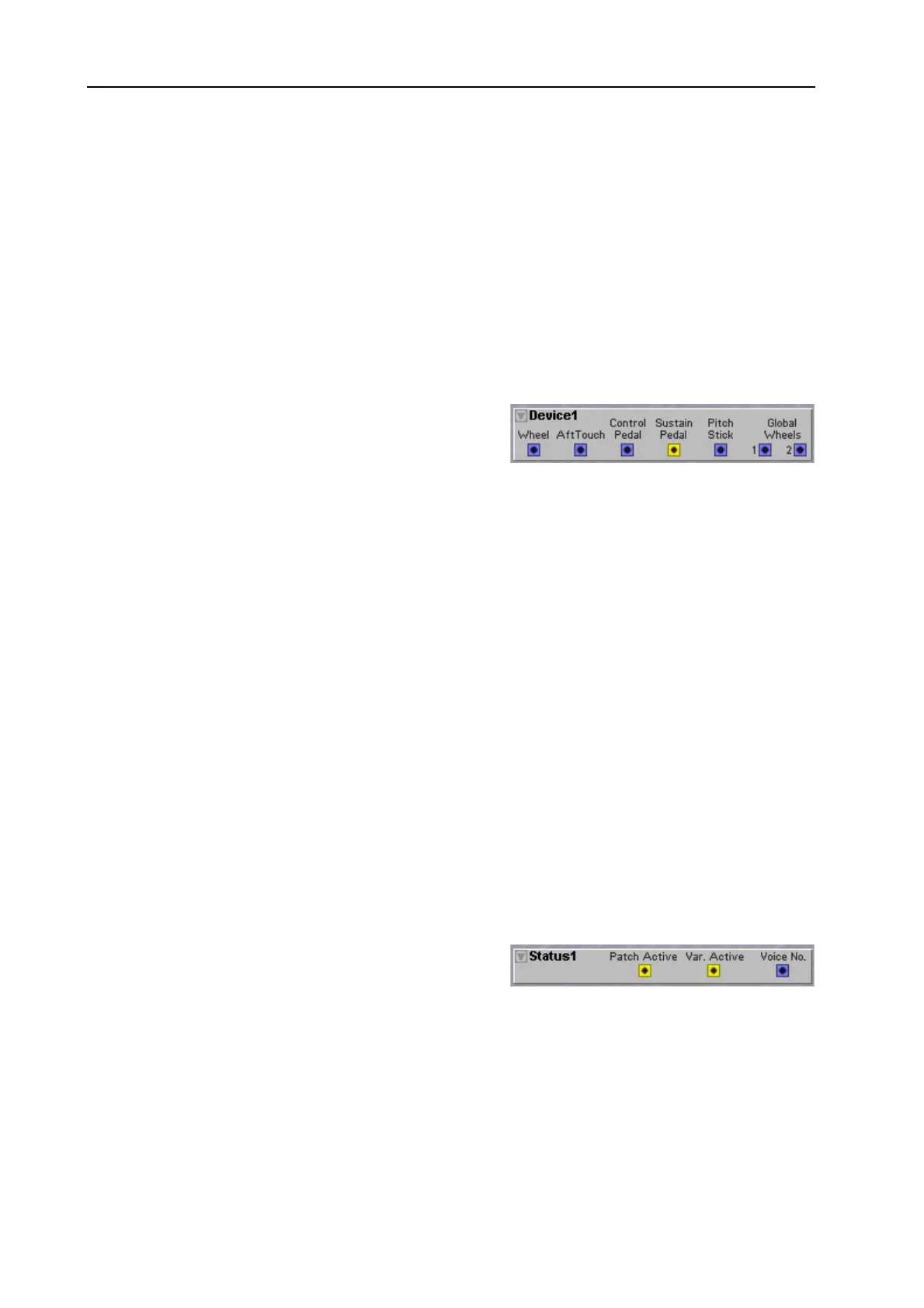

The Device module represents a number of physical
controls on the synth and routes their respective control
signals for use in the Patch.
W
HEEL
The blue Wheel output provides a positive control signal according to the position of the M
OD
W
HEEL
.
Signal: U
NIPOLAR
P
OSITIVE
.
A
FTERTOUCH
The blue Aftertouch output provides a positive control signal according to the current Keyboard
Aftertouch value. Signal: U
NIPOLAR
P
OSITIVE
.
C
ONTROL
P
EDAL
The blue Control Pedal output provides a positive control signal according to the position of a connected
Control/Expression pedal. Signal: U
NIPOLAR
P
OSITIVE
.
S
USTAIN
P
EDAL
The yellow Sustain Pedal output provides a logic
HIGH
signal (+64 units) as soon as a connected sustain
pedal is depressed. In the system menu you can set if the Sustain pedal is of a ‘make-contact or ‘break-
contact’ type. Signal: L
OGIC
. See also Sustain Pedal Polarity at “Sust Ped Pol |Sy” on page 32
P
ITCH
S
TICK
The blue Pitch Stick output provides both the negative and positive control signal range of the P
ITCH
S
TICK
. It will output a signal as soon as the P
ITCH
S
TICK
is moved.
Signal: B
IPOLAR
.
S
TATUS
The Status module is an extremely useful module for
controlling things in a Patch. It gives you the possibility
to control or define events on the moment when you
load a Patch (e.g. to send specific
MIDI
commands) and also when you switch between Variations in the
Patch. It also gives you the possibility to control your Patch depending on which individual voice is used.
P
ATCH
A
CTIVE
Provides you with a logic
HIGH
signal (+64 units) as soon as a Patch is loaded into a Slot or activated.
This signal can be used to reset or sync events in the Patch that you want to reset automatically after Patch
load. Signal: L
OGIC
.
