NORD MODULAR G2 V1.4x 12. midi implementation: MIDI Automation
Page 145
MIDI-L
EARN
FUNCTION
(L
KEY
)

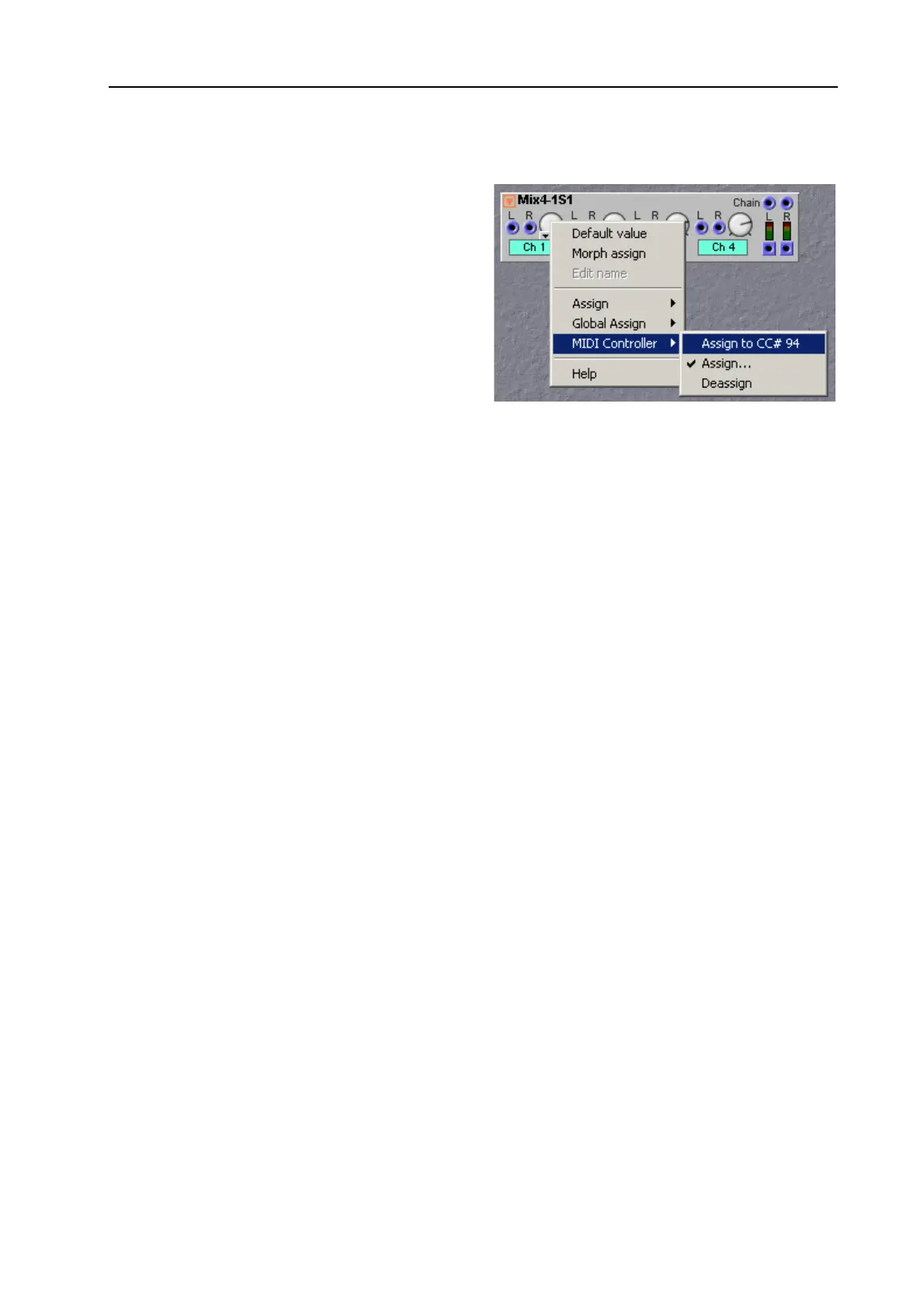

When in the Editor program and right clicking on
a knob control in a module, a popup menu appears
where settings about the knob control can be
made.
Under the menu entry
MIDI
Controller there is a
submenu and at the top of this submenu there is
the menu item 'Assign to CC# xx'. The number
that is shown is the last
MIDI
CC
# that the G2
received on its
MIDI
IN
connector or from another
Slot. Note that there must at least have been one
MIDI
CC
# value received since the power-up of
your G2 to show this menu item. If this menu item
is chosen, the knob will from now on follow the values that are send through this
MIDI
CC
# from another
instrument or Slot.
U
SING
THE
POPUP
-
MENU
In practice do the following:
1) Make sure the other instrument is in the same
MIDI
channel as the G2 slot and the physical knob on
the other instrument is indeed sending
MIDI
CC
# values.
2) Turn the knob on the other machine that should control the knob in the G2.
3) Right click on the knob control in the G2 editor and first check if the Assign to CC# xx menu item
indeed shows the
MIDI
CC
# that the other instrument is sending. If so, just click on the menu item and
the assignment is made. Turn the knob on the other machine again and the G2 should immediately
update the knob control on the G2 module. If this works all right, the assignment is properly made and
will be saved in the patch when the patch is stored in the G2 or on the computer.
U
SING
L
Alternatively the keyboard short-cut L can be used. All you have to do here is click on a knob on a module
and press L. The last received
MIDI
CC
# will now automatically be assigned to this knob. L is a much
faster way of assigning than using the popup-menu. But the popup-menu offers the possibility to check
which
MIDI
CC
# will actually be used and so is a more safe way. Note that a
MIDI
CC
# can only be
assigned to one single knob in the patch and if L assigns a
MIDI
CC
# to a knob that was already assigned
to another knob the other knob will loose its assignment. Which means that you should use L only if you
are really sure which
MIDI
CC
# was received last and that it can be safely assigned.
Note that
MIDI
CC
# assignments and panel rotary dial assignments can be made independently. But when
a knob on a module is assigned to both a
MIDI
CC
# and a panel rotary dial, turning the rotary dial will
also send the
MIDI
CC
# values. And when the G2 is receiving
MIDI
CC
# values over the
MIDI
IN
connector, it will update the
LED
collar around the dial and update the value in the panel display to the
received
MIDI
CC
# value. So, both
MIDI
CC
# and panel assignments need to be made separately and both
can work without the other. But when both assignments have been made they will work together fine.
T
ROUBLESHOOTING
MIDI CC#'
S
When the G2 did not immediately start to follow the knob control after the
MIDI
-
LEARN
function is used,
you first need to check if the other machine is indeed still sending the
MIDI
CC
# and if the Slot in the G2
is indeed in the proper
MIDI
channel. Then check if in the Synth Settings menu in the G2 editor the Send
