General ventilation connections
• Ventilation installation must be carried out in accordance
with current norms and directives.
• Provision must be made for inspection and cleaning of
the duct.
• The air duct system must be a minimum of air tightness
class B.
• To prevent fan noise being transferred to the ventilation
devices, install silencers in suitable locations in the duct
system.
• The extract air and outdoor air ducts are insulated using
diffusion-proof material along their entire lengths.
• Ensure that the condensation insulation is fully sealed at
any joints and/or at lead-in nipples, silencers, roof cowls
or similar.
• The air must be routed to the outdoor air duct through an
outer wall grille in the facade. The outer wall grille must
be installed so that it is protected from the weather and
must be designed so that no rainwater and/or snow can
penetrate the facade or follow the air into the duct.
• When positioning the outdoor air and extract air
hood/grille, bear in mind that the two air flows must not
short circuit to prevent the extract air from being drawn
into ERS S40 again.
• A duct in a masonry chimney stack must not be used for
extract air or outdoor air.
NOTE
To ensure a sealed connection to ERS S40, the
supplied hose clips must be used for connecting
the air ducts.
EXHAUST AIR DUCT /KITCHEN FAN
Exhaust air duct (kitchen fan) must not be connected to
ERS S40.
To prevent cooking odours from being led to the ERS S40,
the distance between the kitchen fan and the exhaust air
valve must be taken into consideration. The distance must
not be less than 1.5 m, but may vary between different in-
stallations.
Always use a kitchen fan when cooking.
Ventilation flow
Connect ERS S40 so that all the exhaust air, except kitchen
duct air (kitchen fan), passes through the heat exchanger
(EP29) in the product.
The ventilation flow must comply with the applicable national
standards.
The supply air flow must be lower than the exhaust air flow
to prevent over pressure in the house.
Set the ventilation capacity in the main product’s menu
system (menu 7.1.4 - "Ventilation").
Adjusting ventilation
To obtain the necessary air exchange in every room of the
building, the exhaust air valve and the supply air inlet as well
as the fans in the HRV unit must be correctly positioned and
adjusted.
Immediately after installation adjust the ventilation so that
it is set according to the projected value of the house.
Incorrect adjustment of the ventilation may lead to reduced
installation efficiency and thus poorer operating economy,
a poorer indoor climate and moisture damage in the building.

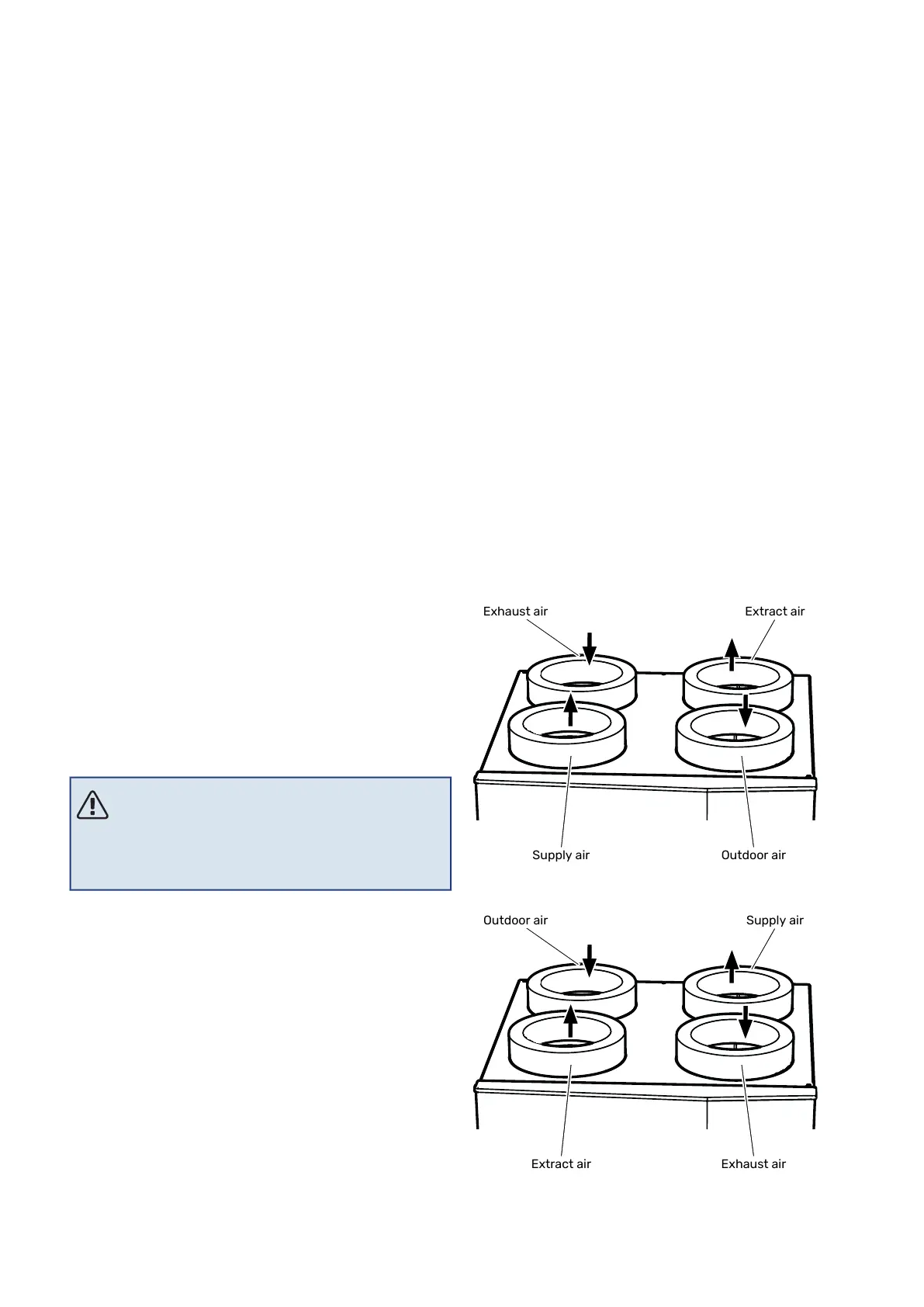

Ventilation connections
LEFT-HANDED VERSION
Exhaust air Extract air
Supply air Outdoor air
RIGHT-HAND VERSION
Outdoor air Supply air
Extract air Exhaust air
NIBE ERS S40-400Chapter 4 | Ventilation connections14
Ventilation connections
