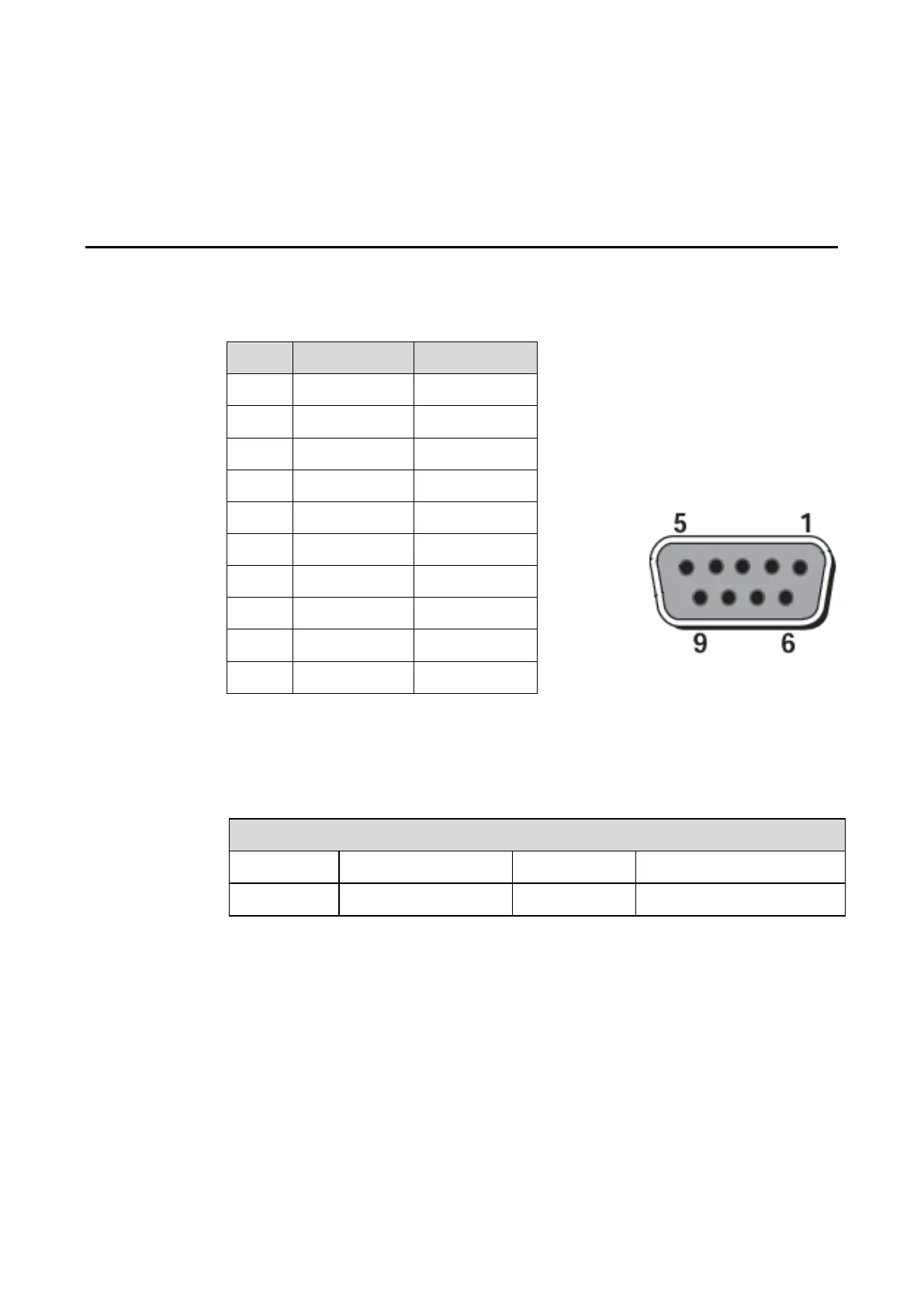

5 Serial Port Control
RS232 communication cable (please use cross data cables)
PIN This Device Computer
1 NC NC
2 RXD0 TXD0
3 TXD0 RXD0
4 NC NC
5 GND GND
6 NC NC
7 NC NC
8 NC NC
9 NC NC
Cover GND GND
Connect RS-232 port to the PC or controlling product. Enable RS-232 serial port connection
and complete the following configuration.
Port: COM1 (Set according to PC or controlling product’s port number)
Baud rate 19200 Odd/even check None
Data bits 8 Stop bit 1
The following tables list controlling codes, querying codes and return codes.
RS232 port of panel
