7
ENGLISH (EN)
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
Halogen infrared illuminator: 90-114
The product is only suitable for well-insulated rooms or for
occasional use.
NOTE: BEFORE USING THE EQUIPMENT, PLEASE READ THIS
MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.
PERSONS WHO HAVE NOT READ THE INSTRUCTIONS SHOULD
NOT CARRY OUT ASSEMBLY, ADJUSTMENT OR OPERATION OF
THE EQUIPMENT.
READ THE USER MANUAL CAREFULLY TO FAMILIARISE
YOURSELF WITH THE APPLIANCE KEEP THIS MANUAL FOR
FUTURE REFERENCE.
SPECIFIC SAFETY PROVISIONS
NOTE!
Read the operating instructions carefully, follow the warnings and safety
conditions contained therein. The appliance has been designed for safe
operation. Nevertheless: installation, maintenance and operation of the
appliance can be dangerous. Following the following procedures will
reduce the risk of fire, electric shock, injury and will reduce the installation
time of the appliance.
This equipment may be used by children of at least 8 years of age and by
people with reduced physical or mental capabilities or lack of familiarity
with the equipment if supervision or instruction is provided on how to use
the equipment safely so that the associated risks are understood. Children
should not play with the equipment. Unsupervised children should not
carry out cleaning or maintenance of the equipment
The unit is used for occasional operation.
SAFETY RULES
• The unit must not be used outdoors in damp weather, in bathrooms
or other wet or humid environments.
• Please note that the appliance can become very hot. Therefore, the
appliance should be placed at a safe distance of at least 1 metre (3
feet) from flammable objects such as: furniture, curtains etc.
• Do not cover the unit with, for example, a towel.
• The appliance must not be located directly under a wall socket.
• The appliance must not be connected to the mains via a timer or
programmable switch.
• The appliance must not be placed in rooms where flammable dusts,
liquids or gases are used or present.
• If the appliance is connected by means of an extension cord, ensure
that the extension cord is as short as possible and fully extended
and of the correct cross-section.
• The unit should not be used in the immediate vicinity of a bath,
shower or swimming pool.
• If the power supply cable is damaged, it must be replaced by the
manufacturer, its representative, service or a qualified person in
order to avoid danger.
• Do not connect other devices to the same mains socket to which the
device is connected.
• The appliance should not be left unattended. Keep children and pets
away from the appliance.
• Do not place the unit on unstable, moving surfaces or where the unit
can be knocked over.
• If the appliance is not used for a long time, unplug it from the power
supply. Do not leave the appliance switched on unattended. When
disconnecting the appliance from the mains, pull out the plug, never
pull on the power cord.
• Keep the unit away from curtains, curtains or places where the air
inlet is easily blocked.
• To prevent possible electric shock, never operate the appliance with
wet hands or when there is water on the power cord.
• Do not dispose of electrical appliances with unsorted municipal
waste, use separate collection points. Contact your local authorities
for information on available collection systems. If electrical
appliances are disposed of in landfill sites, hazardous substances
can seep into the groundwater and enter the food chain, damaging
your health.
• This equipment is not intended for use by persons (including
children) with reduced physical or mental capabilities or without
experience unless supervision or instruction is provided regarding
the safe use of the equipment so that the associated risks are
understood.
• Children should be supervised to ensure that they do not play with
the appliance.
• Do not modify or repair the appliance yourself. To do so, send it to
a service centre or qualified electrician (during the post-warranty
period).

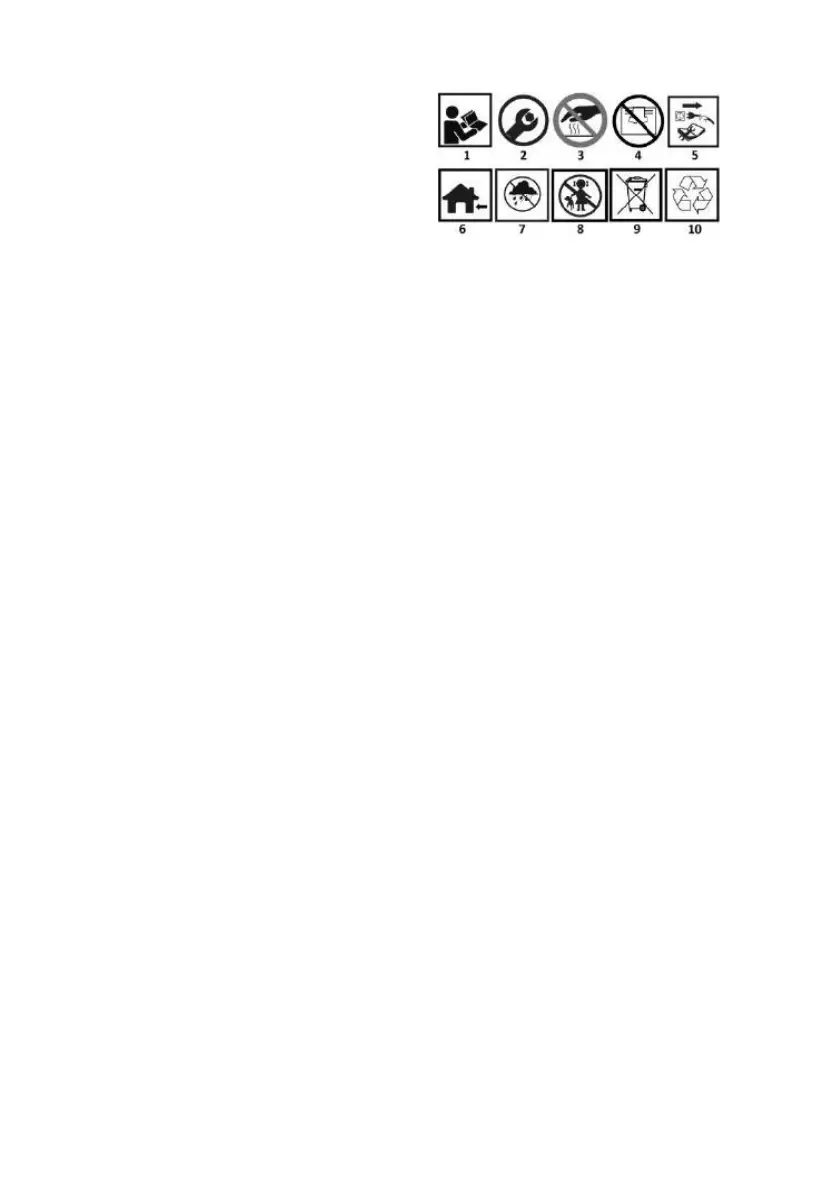

PICTOGRAMS AND WARNINGS
1.Read the operating instructions, observe the warnings and safety
conditions contained therein!
2.The device may require installation
3.Do not touch the hot surface
4.Do not cover
5.Disconnect from power supply before repair or maintenance
6.For indoor use
7.Protect from moisture
8.Keep out of the reach of children
9.Do not dispose of with household waste
10.Recyclable
DESCRIPTION OF THE GRAPHIC ELEMENTS
The following numbering refers to the components of the device
shown on the graphic pages of this manual.
FIG. A
Description
1
Switch, control panel
2
Heating elements
3
Base/base of radiator
4
Ventilation openings
5
Transport handle
6
Ventilation openings
7
Ventilation openings
8
Feed-through opening
FIG. A
Description
1
Rotary switch
2
Lower heater switch (1/3 power)
3
Top heater switch (1/3 power)
4
Main switch (middle heater 1/3 power)
5
Safety mechanism button
6
Screws for fixing the heater to the base
* There may be differences between the graphic and the actual product
PURPOSE
This product is intended for home and office use only and not for industrial
or other commercial use. Use only with a power cord that is undamaged
and in good condition, which meets the applicable standards and
regulations. The heater must be from the mains whose parameters are
specified in the rating table. Do not connect other additional appliances on
the same circuit as the heater in operation.
OPERATION OF THE DEVICE
MONTAGE
Before using the heater, it must be assembled; check the unit and the
power cable for damage beforehand.
• To facilitate installation, place the unit on a horizontal, flat and stable
surface.
• Unscrew the nuts located in the lower oval part of the radiator.
• Pass the power cable through the hole in the centre of the base and
assemble the circular bottom of the unit by placing it in the body of
the base.
• Insert the nuts through the base and screw the unit to the base with
them, as shown in Fig. B6.
ACTIVATION OF THE HEATER
To start the heater, press the button Fig. B4 to the 1/ON position. This
starts the heating at 1/3 power, the middle heater is activated. The button
fig. B2 starts the bottom heater adding another 1/3 of the heater power,
the button fig. B3 starts the top heater adding the remaining 1/3 power.
Buttons fig. B2 and B3 function independently of each other, but the
prerequisite is that button fig. B4 is activated. Pressing the button fig. B1
starts the slow rotation of the heater in the range of 60°.
SWITCHING OFF THE HEATER
