848 Airport Road, Walla Walla, Washington 99362 U.S.A.
Tel: +1 509.525.7660 / Fax: +1 509.525.7907
nelsonirrigation.com
62 63

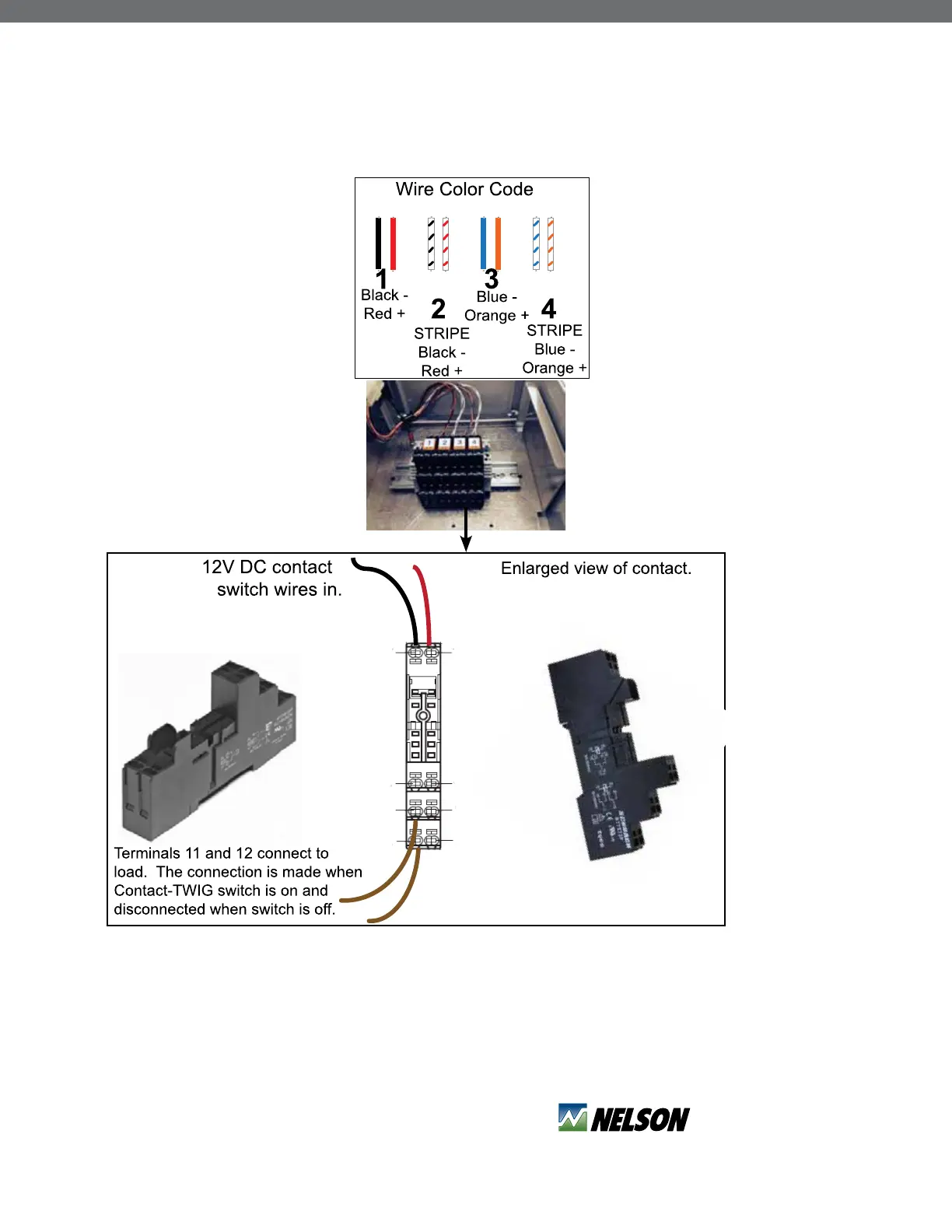

Contact terminals inside the box
come pre-wired from the factory.
This color chart is simply for
reference if a repair is required
and to show that the wire polarity
is essential.
A1 A2
14 24
11 21
12 22
Contact-TWIG wiring: The four switches in the box are pre-wired from the factory. These
switches latch on and off using a momentary 12V DC pulse. The information below is to show the
wires into the four switches are color coded because polarity is important to open and close the
switches.
