Appendix D: Contact TWIG
Purpose: To provide wireless remote control switches in the TWIG network.
The Contact-TWIG can be utilized for wireless remote control to activate up to four switches. The
switches signal control relays to operate master valves, lighting, start and stop the pump and alarms.
General Description: The Contact-TWIG is capable of switching four dry contact switches. The
TD200 controller will activate each of the four contacts and keep the relay(s) latched ON so long as
the controller commands the associated switches to be on. When the switches are commanded to
go off the contacts will disconnect wires causing the relays to open. When congured as a “Master
valve” in a program, the connection will be made if any valves within the program are on.

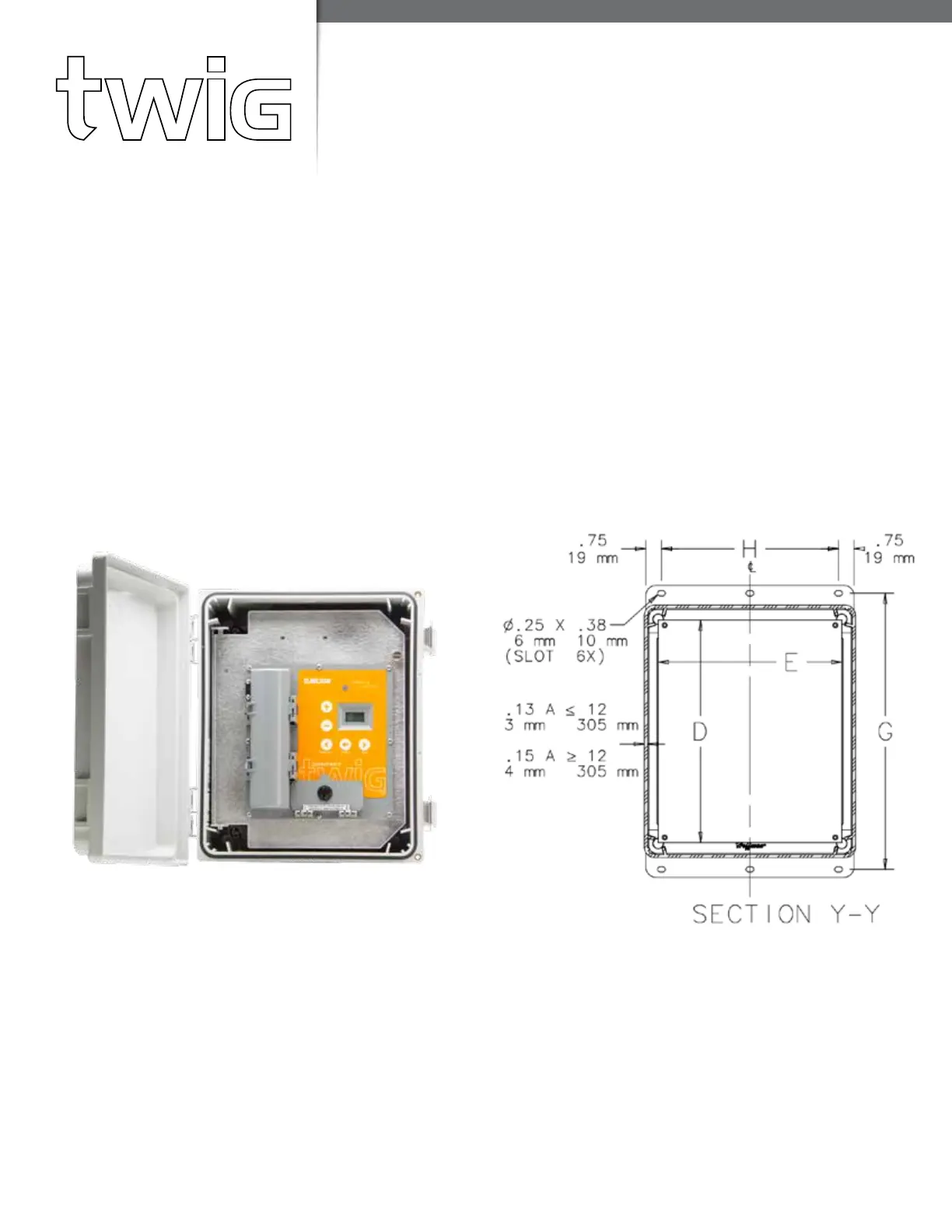

Enclosure details:
TD200 and Contact-TWIG
box dimensions:
Mounting hole spacing
H=6.56”
G=11.38”
