5.2 Using the wireless Contact-TWIG to signal switches to run pumps:
In the event that it is required to run a pump, the CONTACT-TWIG contains 4 latch switches that can
do it. The Contact-TWIG can be set as a master valve. These contacts can work independently to
operate a portion of the time or only when the a pump is running. Note that as a safety protection it
is a good plan to have a manual switch to disconnect the pump. This gives some protection to avoid
accidental operation when not wanted. See Appendix D for details about the Contact-TWIG unit.
Multi-valve clusters

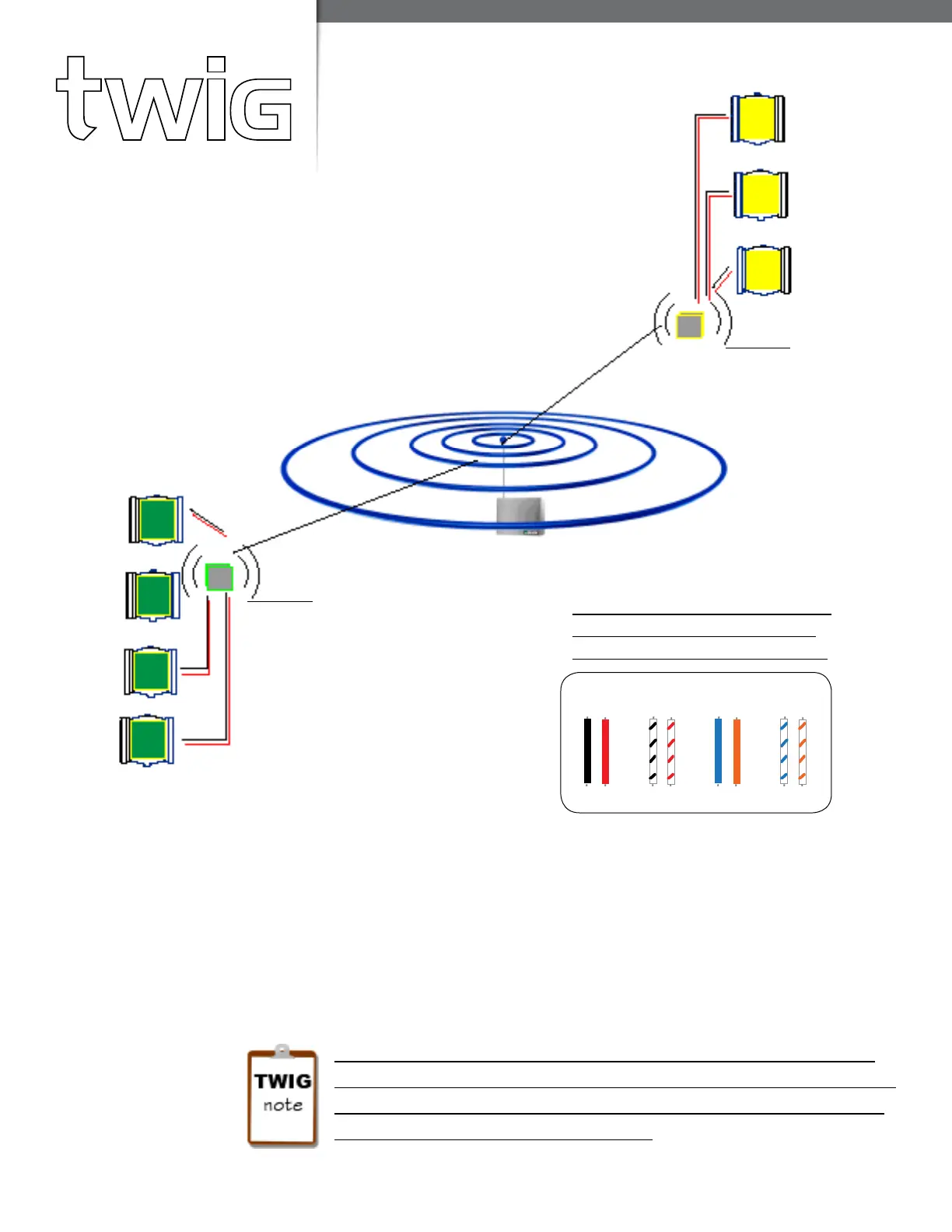

Figure 5.9 Groups of up to four
valves that are clustered can
be controlled by one TWIG-4.
signal path
TWIG-4
signal path
TD200 controller
TWIG-4
The Contact-TWIG and the TWIG-4 provide multi-valve
wireless control that can handle as many as four switches
or valves. Wire length connecting these must be limited
to less than the distance of 50 ft.
Wire color code key
1 2 3 4
- + - + - + - +
