848 Airport Road, Walla Walla, Washington 99362 U.S.A.
Tel: +1 509.525.7660 / Fax: +1 509.525.7907
nelsonirrigation.com
36 37
5.1.9 Ways to use the TWIG-4 multi-valve model:
The use of the multi-valve TWIGs is a good way to have only one radio serve many valves. Many
drip and ltration valves are located in grouped clusters right next to each other and are remote from
the TD200 controller. The TWIG-4 are for several valves that are in clusters. Then one radio can
serve as many as four valves. Note that wire is used to connect each valve to the TWIG-4.
The multi-valve TWIG-4 will work well here as long as the distance between the controller and the
farthermost valve is less than 50 ft. (the limit of wire length from TWIG to valve). Each valve has a
unique id and can work independent of any other valves.
1 2 3 4
5
Forward
message
Return
message
Key
STAR & CHAIN
Combo
Chain as many as 9 Repeaters
TWIG
TWIG
TWIG
TD200
A######(1)
B######(1 or 2)
D######(1,2,3 or 4)
First letter indicates
‘A’ for one valve, B for two
valves and D for four valves
Last digit of TWIG
label.

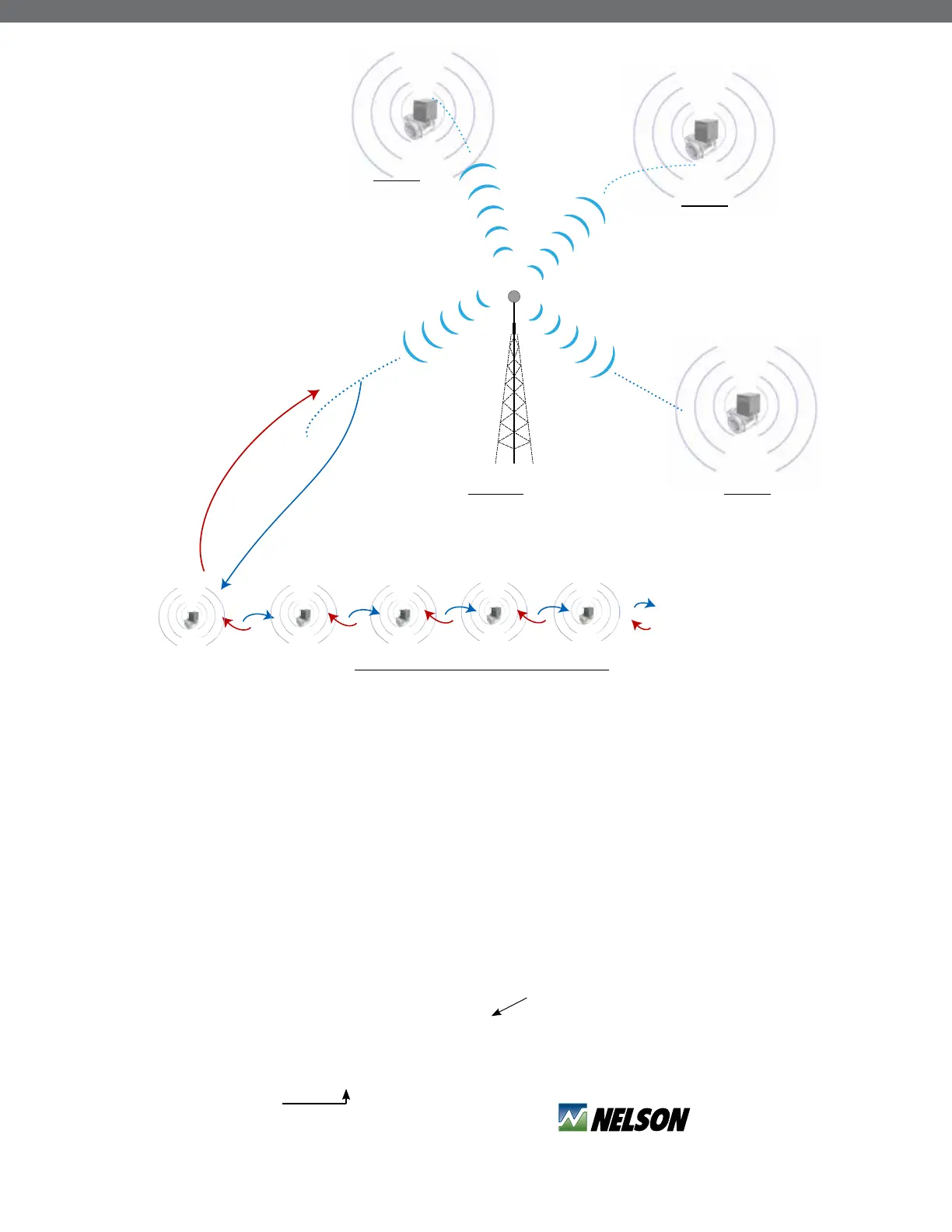

Figure 5.8 Sketch of communication in a Star/Chain combination. The TD200 controller communi-
cates to each TWIG and to the repeaters that are in a chain. Each repeater relays to the next one.
This works well to go around problems of signal blockage.
