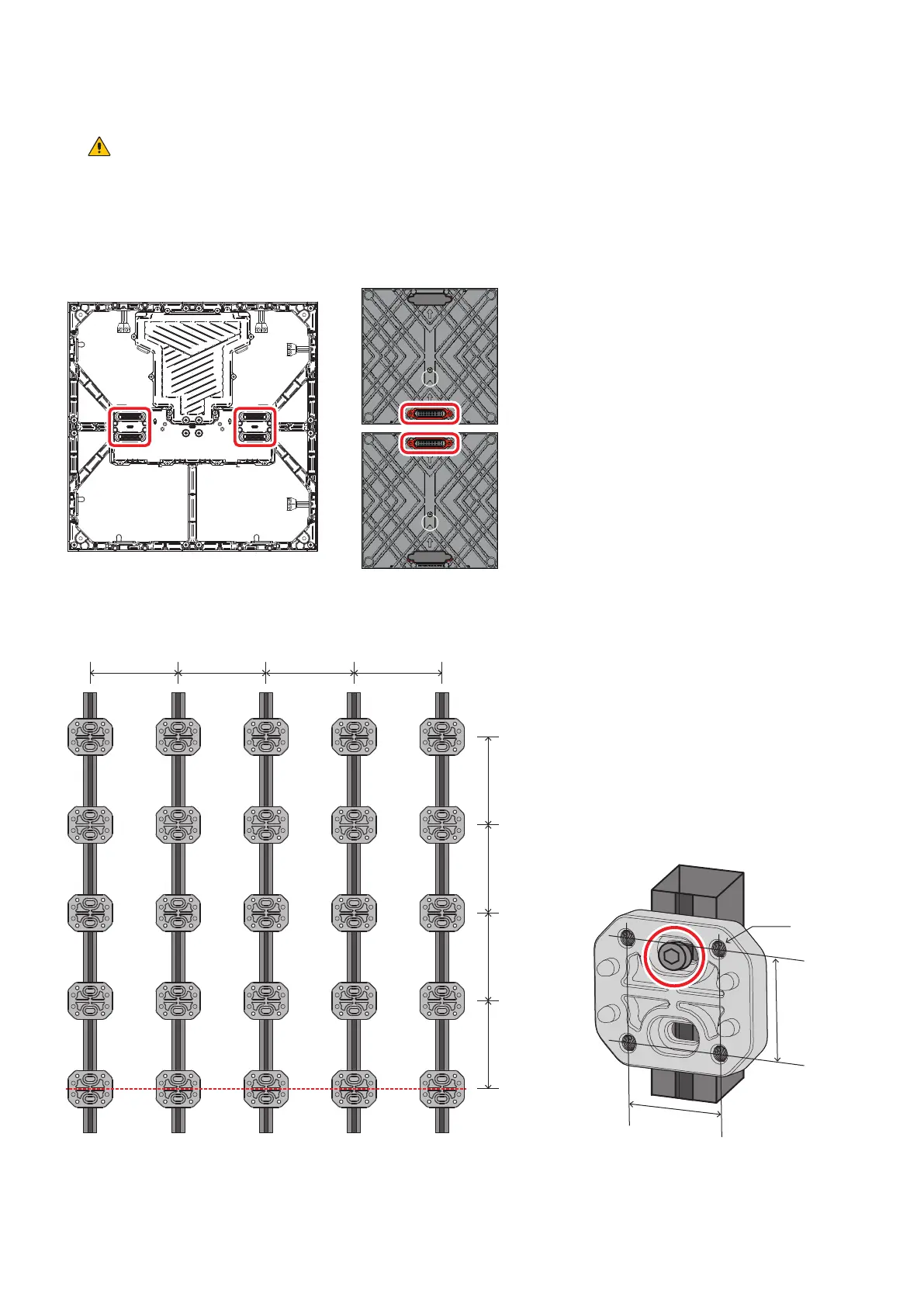

A recommended example of installation when using the brackets is shown below. Ask a technician or
your retailer for the installation procedure when not using the brackets.
CAUTION
• The pixel cards are installed to the cabinets in this product at the time of purchase. For front installation,
remove the pixel cards from the cabinets before installing the product.
For details on how to remove the pixel card, see “Maintenance”, p.33.
• Waterproof performance of the product is not guaranteed when the pixel cards have been removed. During
installation, do not splash water on the pixel card connectors of the cabinets or the pixel cards. (Models for
outdoor use)
Install the front brackets to the frame as shown in the gure below.
500 mm 500 mm 500 mm 500 mm
500 mm
500 mm
500 mm
500 mm
Adjust the horizontality of the lowest row.
Secure the brackets using a
screw in the upper hole.
52 mm
52 mm
4-M6
