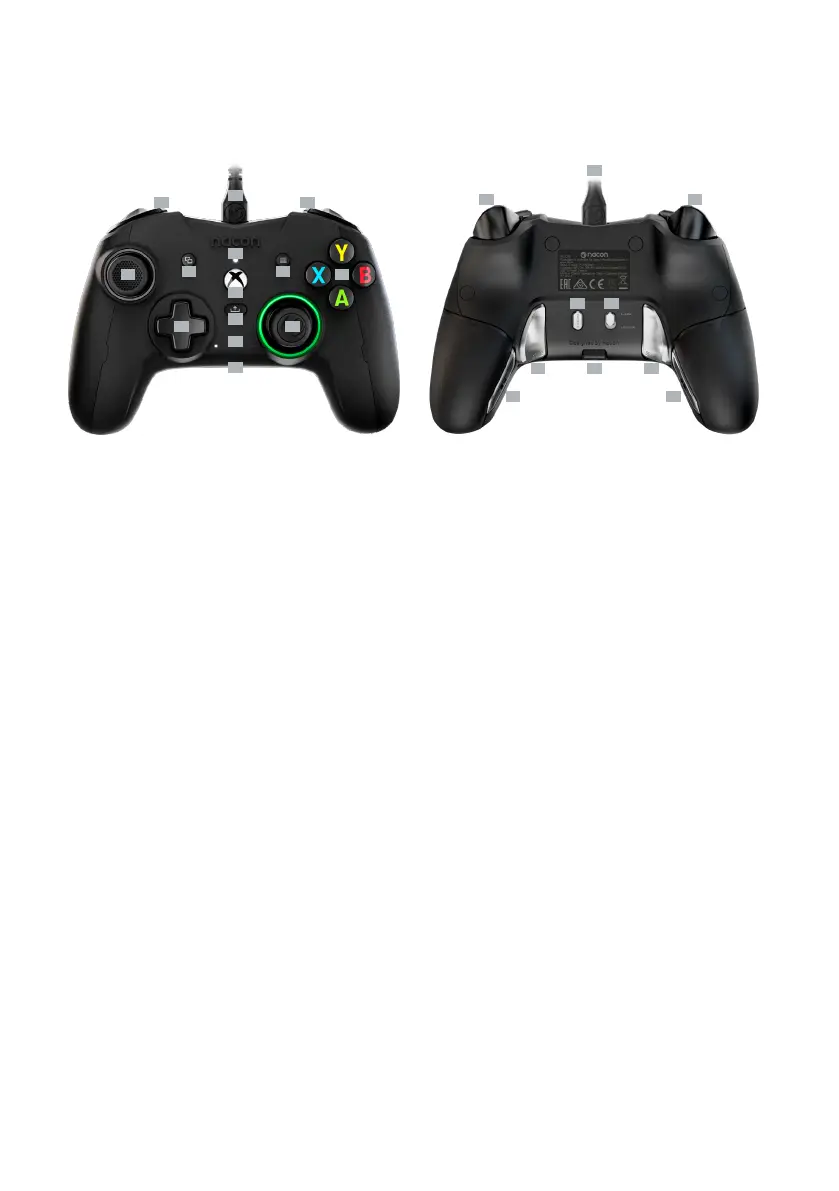

I Control elements
01 38° Left analogue stick with digital
button
02 38° Right analogue stick with digital
button
03 D-pad
04 A/B/X/Y action buttons
05 Left bumper LB
06 Right bumper RB
07 Rear Left trigger LT
08 Rear Right trigger RT
09 VIEW button
10 MENU button
11 XBOX button
12 Status LED
13 SHARE button
14 3.5mm audio jack port
15 Detachable 3m USB cable
16 Prole LED indicators the current prole
17 Standard prole/custom prole switch
18 Prole selection button
19 S1 programmable shortcut key
20 S2 programmable shortcut key
21 S3 programmable shortcut key
22 S4 programmable shortcut key
01
03 02
04
14
13
11
12
15
09
05 06
10
I How to use this controller on Xbox Series XIS and Xbox One
Connect the USB cable to an unused port on your Xbox console. Take care not to touch
the sticks or triggers when switching on the controller.
Once the White LED is xed, your controller is ready to use.
If your console is off, press the Xbox button on your controller to turn on the console or
press the X button on your Xbox.
You’re ready to play!
The controller will switch off as soon as the USB cable is unplugged or your console is
witched off.
