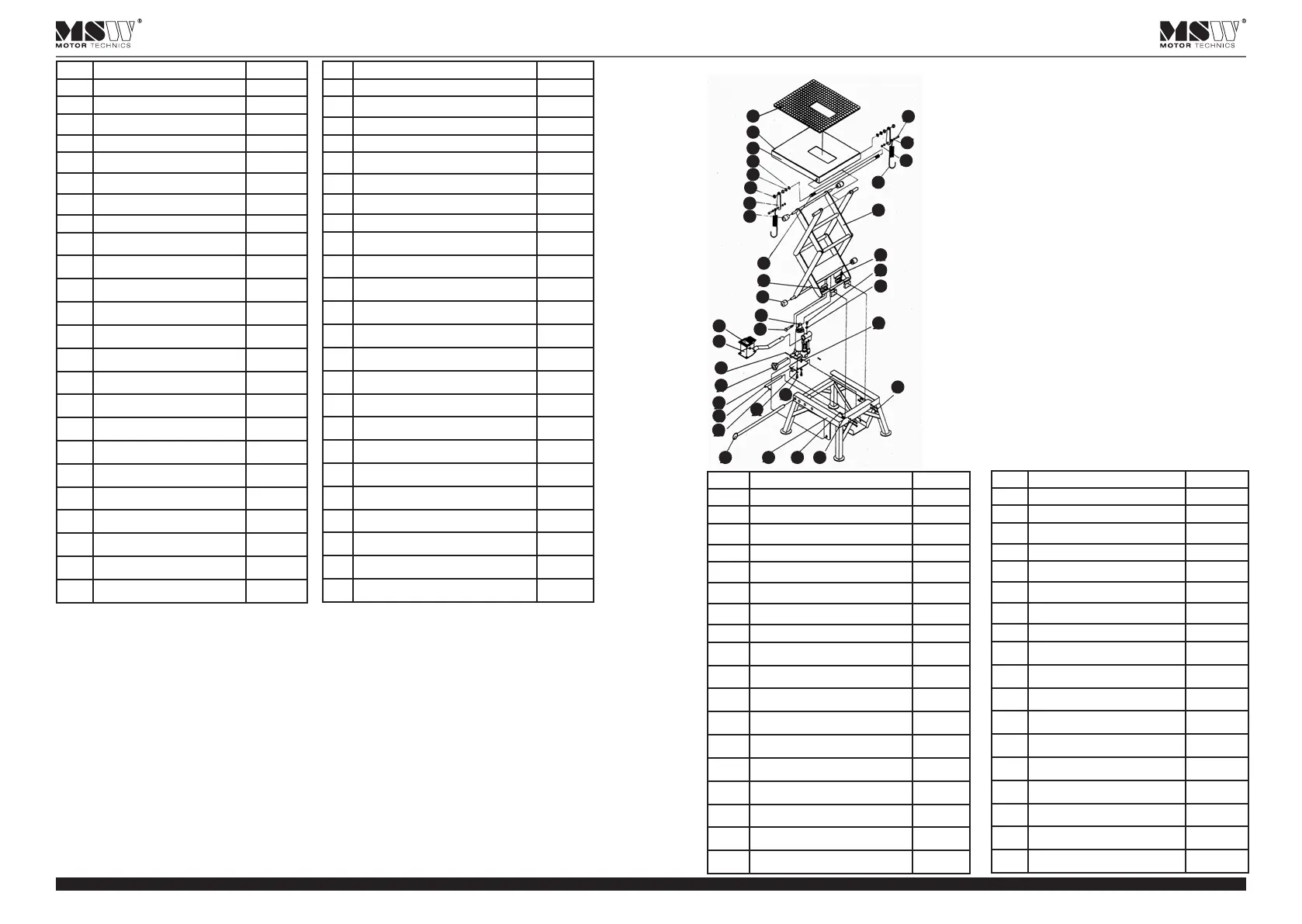

No. Description Quantity
1 M12×20 bolt 2
2 12 washer 40
3 M12×30 bolt 8
4 10 washer 2
5 10 spring washer 2
6 M10 nut 2
7 Bracket 2
8 Adjustment bolt 3
9 M6 washer 3
10 M6 nut 3
11 Wheel 2
12 8 washer 4
13 M8×18 bolt 1
14 Lock release valve 1
15 Release foot pedal 1
16 Pump piston spindle 1
17 Shaft 1
18 Lift foot pedal 1
19 Spring 1
20 Connector 1
21 Mandrel 8
22 12 exible adjustment ring 16
23 M20 nut 2
24 Wheel 2
No. Description Quantity
25 14 washer 4
26 14 stabilising spring washer 2
27 Bracket 2
28 Support frame 2
29 M12 nut 16
30 M8×35 bolt 4
31 Oil discharge 1
32 M8 nut 4
33 Rear support bracket 1
34 Shaft 1
35 20 washer 4
36 20 stabilising spring washer 2
37 M10×10 bolt 2
38 Connecting elements 1
39 Pump 1
40 Ramp 1
41 Access Panel 1
42 Table 1
43 Vice adjustment elements 1
44 Stop bracket 1
45 Vice axis 1
46 Lower vice plate 1
47 Front support bracket 1
48 10 spring washer 2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23 24 25 26
27
28
29
30
31
32
33
34
35
36
No. Description Quantity
1 Rubber overlay 1
2 Steel plate 1
3 Upper support frame 1
4 M12 washer 2
5 12 spring washer 2
6 M12 nut 4
7 Bracket 2
8 Upper roller 2
9 Mandrel 1
10 Retention block 8
11 Bottom roller 2
12 Pump 1
13 M12 bolt 1
14 Pedal rubber overlay 1
15 Lift foot pedal 1
16 Spring pin 1
17 Release valve 1
18 Plate 1
No. Description Quantity
19 Connecting pin 1
20 Safety pin 2
21 M8 washer 2
22 M8x25 bolt 2
23 Locking lever 1
24 Bottom frame 1
25 M5 nut 4
26 M5 washer 4
27 M5x40 bolt 4
28 M8 nut 2
29 M8 washer 1
30 M8x12 bolt 1
31 M12 nut 1
32 Scissor system 1
33 Spring and hook 2
34 Nut 2
35 Washer 2
36 Bolt 2
MSW-MHB-135 / MSW-MHB-150
