2. The supplied network cable M73 EN54: Scope of Delivery, p. 14 has an integrated rubber sealing. Push the
network cable through the top hole of the mounting plate, so that the funnel of the rubber plug
①
points toward the camera.
Installing the Mounting Plate

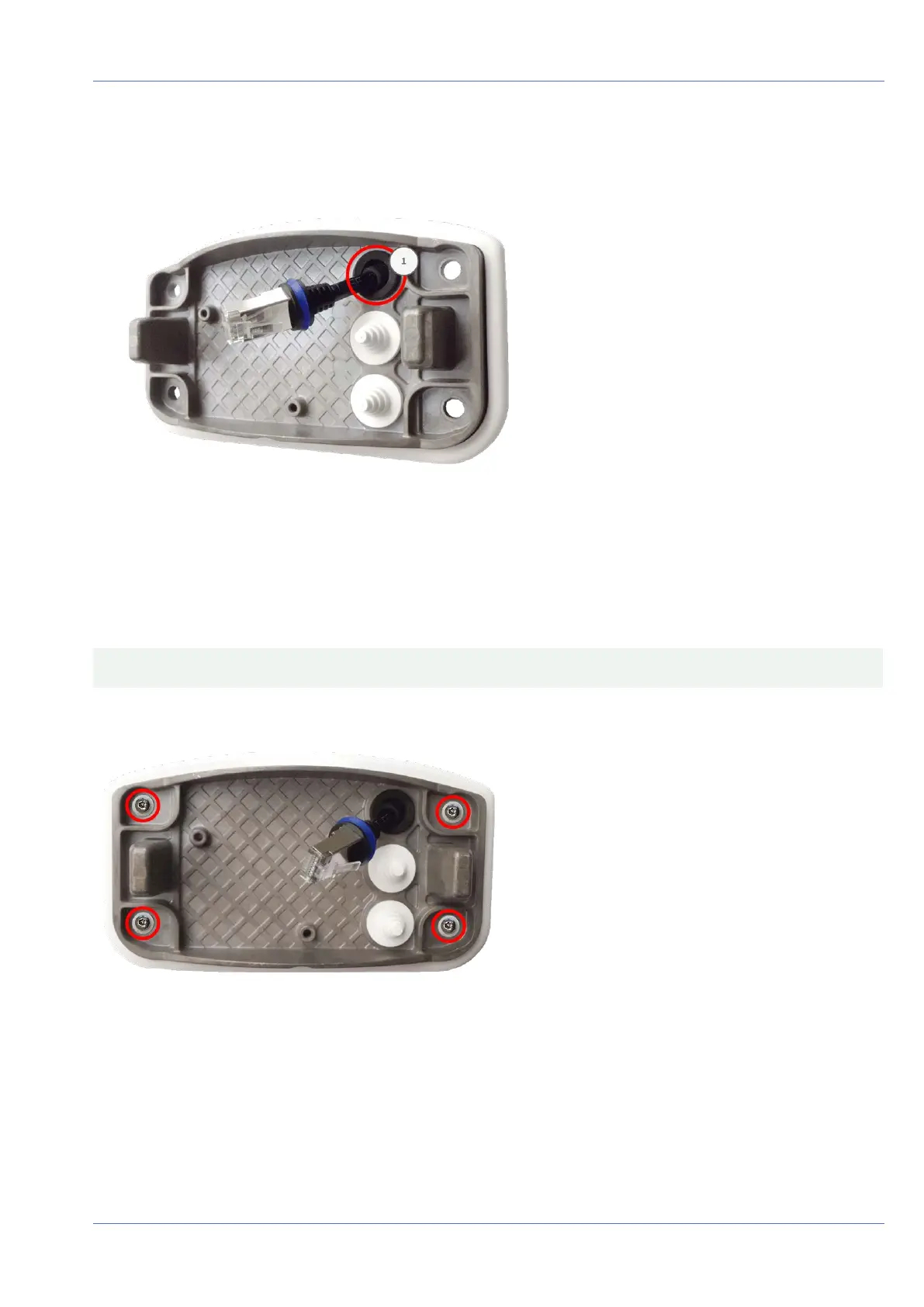

Place the mounting plate over the drilled holes (red circles in figures below) and use the four screws Mount-
ing Supplies: Scope of Delivery, p. 16 with one washer Mounting Supplies: Scope of Delivery, p. 16 each and
the TORX wrench TX20 Mounting Supplies: Scope of Delivery, p. 16 to mount the plate to the wall.
CAUTION! Install on flat surface only. Unevenness must not exceed 0.5mm/0.02in.
Connector Box RJ45
Fig. 6: Installed and ready for Connector Box RJ45
Mounting
Mounting Options
