Prepare the Mounting Plate when using the Connector Box RJ45
1. Connect the supplied patch cable M73 EN54: Scope of Delivery, p. 14 of the camera with the network con-
nection of the building (see Connecting the Camera to the Network, p. 52).
CAUTION! To prevent damage from condensation, using supplied patch cable M73 EN54: Scope of Deliv-
ery, p. 14 with sealing is mandatory.

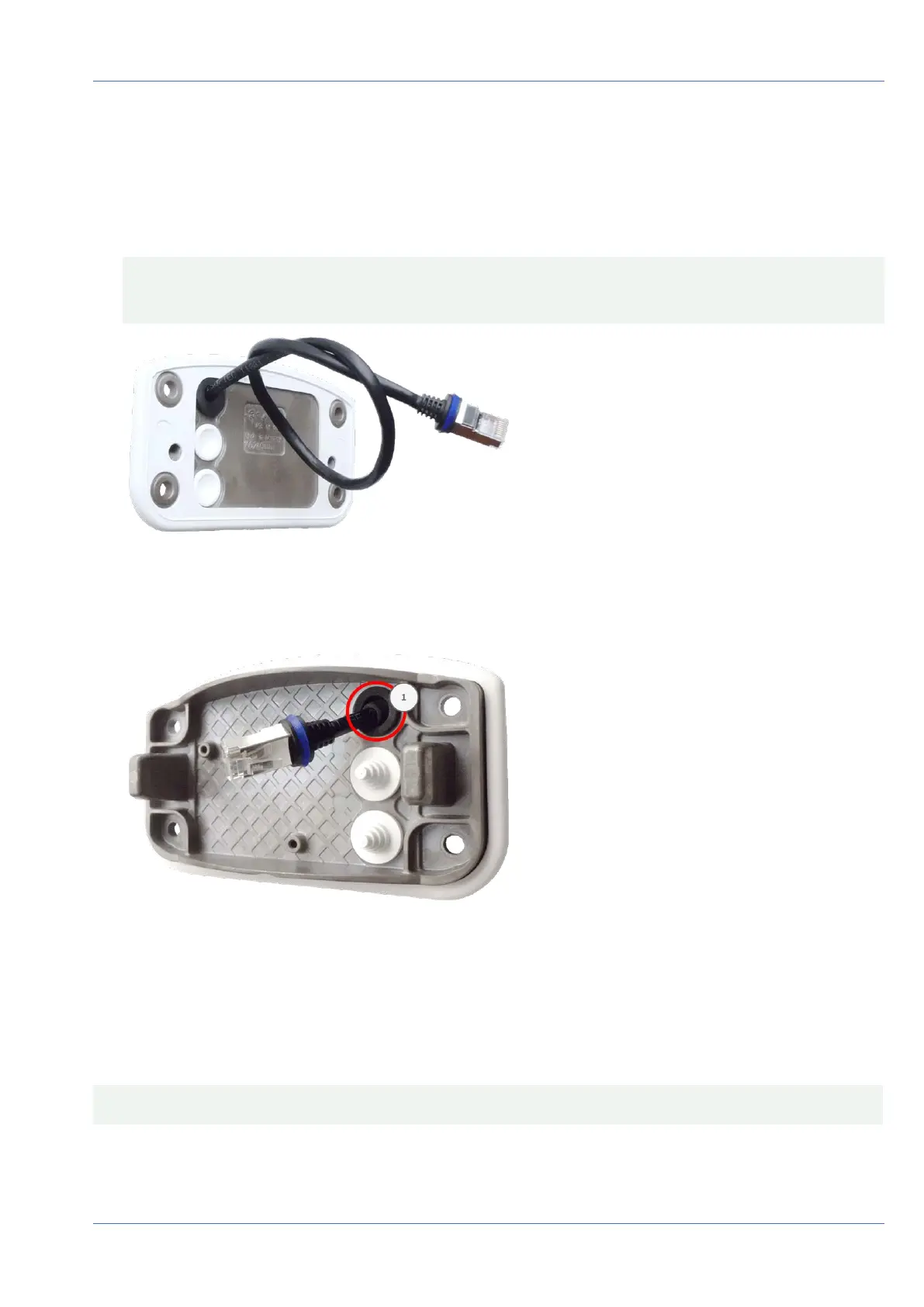

2. The supplied network cable M73 EN54: Scope of Delivery, p. 14 has an integrated rubber sealing. Push the
network cable through the top hole of the mounting plate, so that the funnel of the rubber plug
①
points toward the camera.
Installing the Mounting Plate
Place the mounting plate over the drilled holes (red circles in figures below) and use the four screws Mount-
ing Supplies: Scope of Delivery, p. 16 with one washer Mounting Supplies: Scope of Delivery, p. 16 each and
the TORX wrench TX20 Mounting Supplies: Scope of Delivery, p. 16 to mount the plate to the wall.
CAUTION! Install on flat surface only. Unevenness must not exceed 0.5mm/0.02in.
