Mounting
Installing an additional Sensor Module

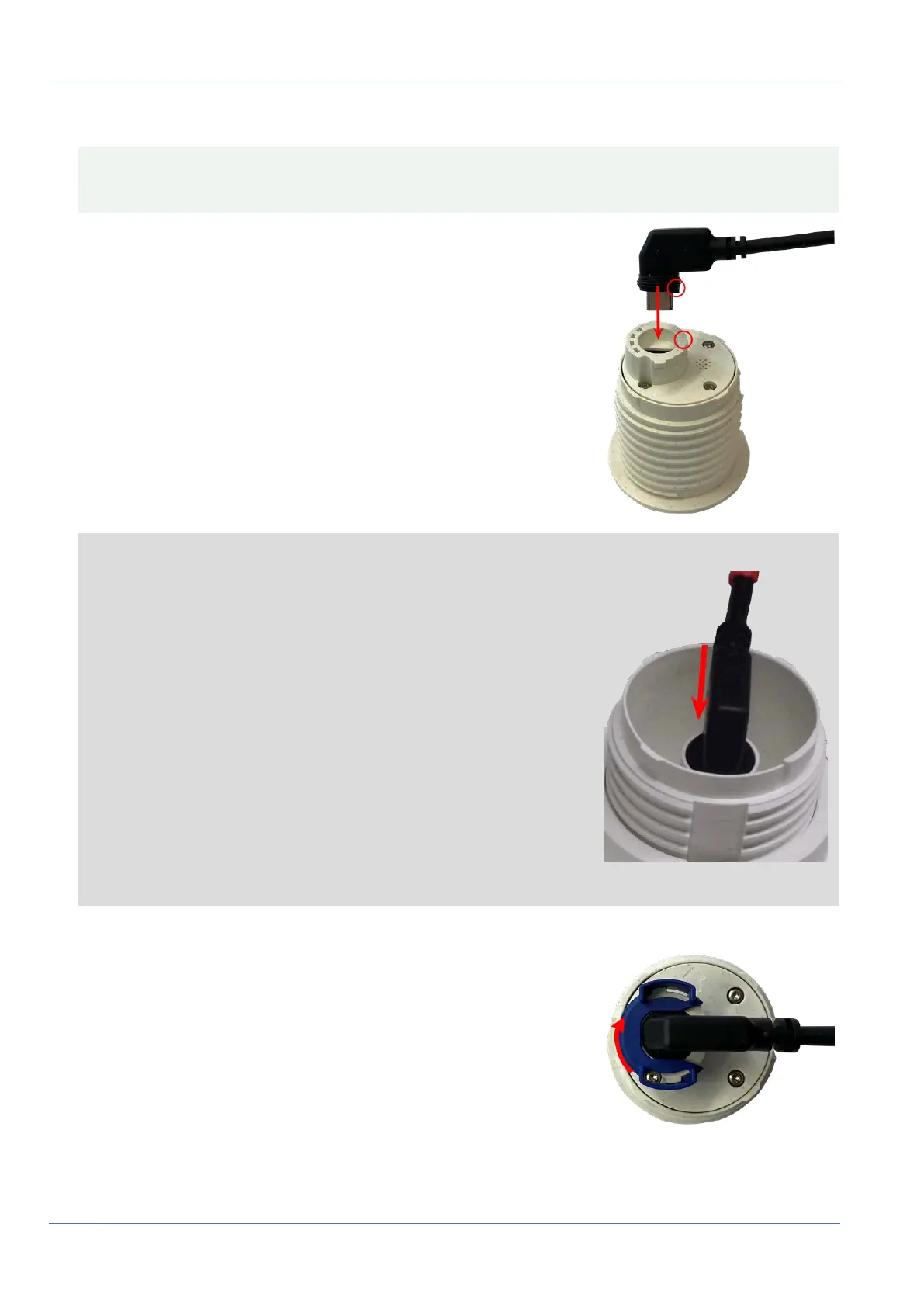

4. Properly connect the sensor module cables:
CAUTION! The lug of the plug must point to the inside of the sensor module when plugged in. If the
module cable is not plugged in correctly, the sensor will not be recognized by the camera.
Push the plug of each sensor module cable firmly into the connector at
the back of the module until the connector is fully inserted into its seat
until it doesn’t go in any further.
NOTE!
When using blind modules, also insert the connector into the recept-
acle as shown below.
5. Lock sensor module cable: Apply the blue bayonet catch onto the con-
nector of the sensor module as shown and turn it clockwise until it
gently snaps shut.
