En-4

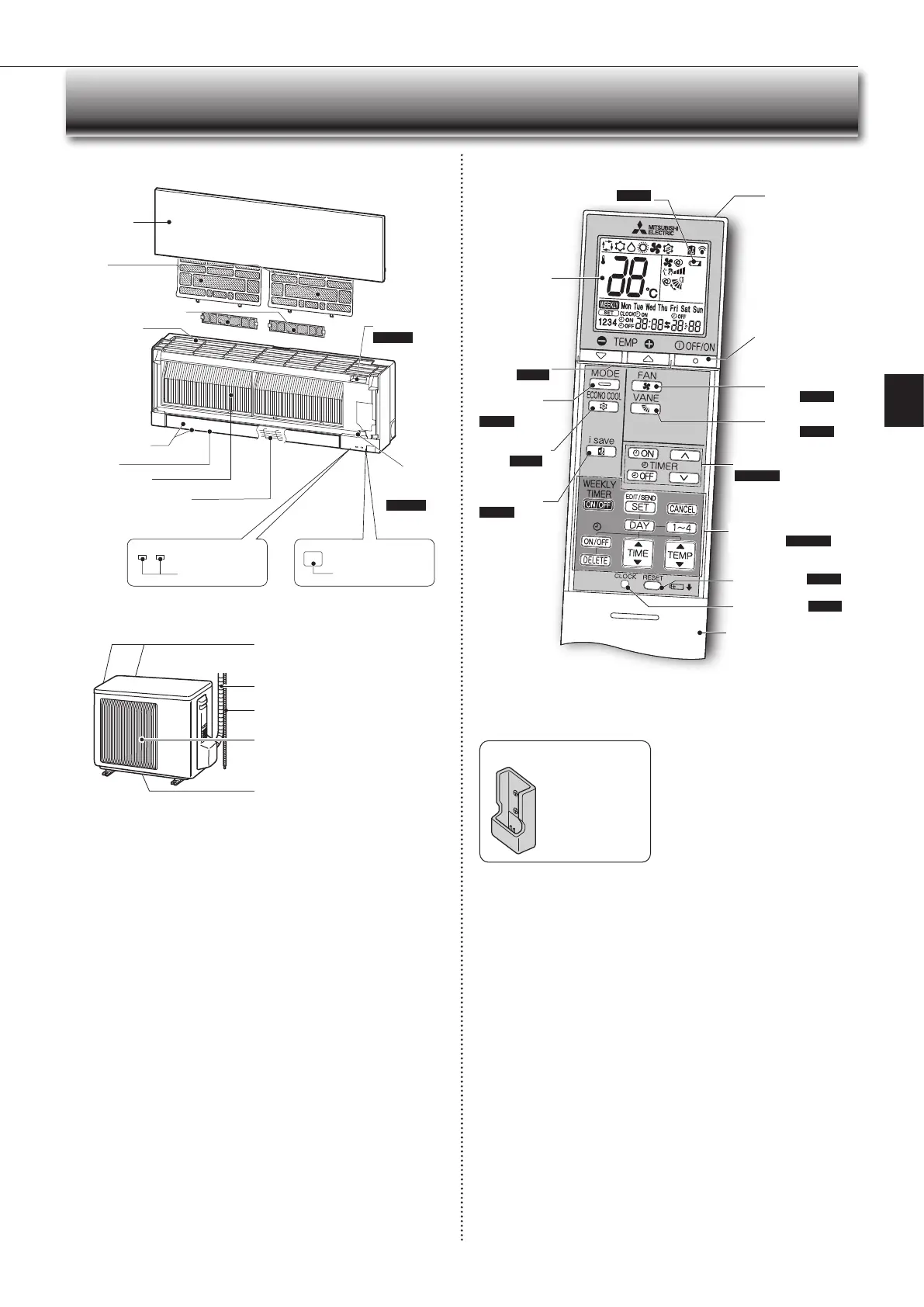

NAME OF EACH PART
Remote controller holder
• Install the remote
controller holder in a
placewherethesignal
can be received by the
indoor unit.
• When the remote
controller is not used,
place it in this holder.
Operation
indicator lamp
Remote control
receiving section
Emergency
operation
switch
Page10
Horizontalvane
Air inlet
Airlter
(Nanoplatinumlter)
Aircleaninglter
(
Electrostaticanti-allergy
enzymelter,option
)
Heatexchanger
Front panel
Outdoor unit
Indoor unit Remote controller
Airinlet(backandside)
Refrigerant piping
Drainage hose
Air outlet
Drain outlet
Outdoorunitsmaybedifferentinappearance.
Signal transmitting
section
Distance of signal :
About6m
Beep(s)is(are)heard
from the indoor unit
whenthesignalis
received.
Operation
display section
OFF/ON
(stop/operate)button
Temperature
buttons
Page6
Operation
select button
Page6
ECONOCOOL
button Page 8
FAN speed control
button Page7
VANEcontrol
button Page7
TIME,TIMERsetbuttons
Page5,8
forwardbutton
backwardbutton
CLOCKbuttonPage5
RESETbuttonPage5
Lid
Slidetheliddowntoopen
the remote controller. Slide
itdownfurthertogettothe
weeklytimerbuttons.
i-save button
Page 8
TIMER,WEEKLYTIMER
set buttons
Page5,9
Air outlet
Battery replacement indicator
Page5
Onlyusetheremotecontrollerprovided
withtheunit.
Do not use other remote controllers.
If2ormoreindoorunitsareinstalledin
proximity to one another, an indoor unit
that is not intended to be operated may
respond to the remote controller.
Wi-Fi interface
Page12
Fan guard
