8. AC/DC In Jack: powered by 12V/3A AC/DC input

9. IR Receiver & LED Indicator

IR Receiver: support remote control

LED Indicator:

Power supply ON

Red then turn Green after kernel boot up.

Power supply OFF

LED light off.

10. USB Port x 2: support USB 2.0 Host type A

11. RS232 Port x 2: in RJ45 connector form

12. S/PDIF Port: support S/PDIF audio output

13. Headset + Microphone Jack

14. 10/100Mbps RJ45 Ethernet Port: support Ethernet connection

15. Power Switch: switch power ON/OFF

Power on the Product

Step 1 Plug the power source into the AC/DC in jack (#8 in Product

Instruction).

Step 2 Switch the power switch (#15) on the bottom of this product to ON.

Insert SD Card

This product supports external SD card. Please insert your SD card into the

SD Card Slot (#2 in Product Instruction) on the top of this product.

Insert USB Devices

This product supports USB and Micro-USB to deal with your files.

USB

Plug your USB memory into the USB port (#10 in Product Instruction) on

the bottom of this product, and then you can do the file operations via the File

Browser. (See in Browse Files).

Micro-USB

Connect the Micro-USB port (#4 in Product Instruction) on the bottom of

this product and the USB port on your computer with a Micro-USB-to-USB

cable.

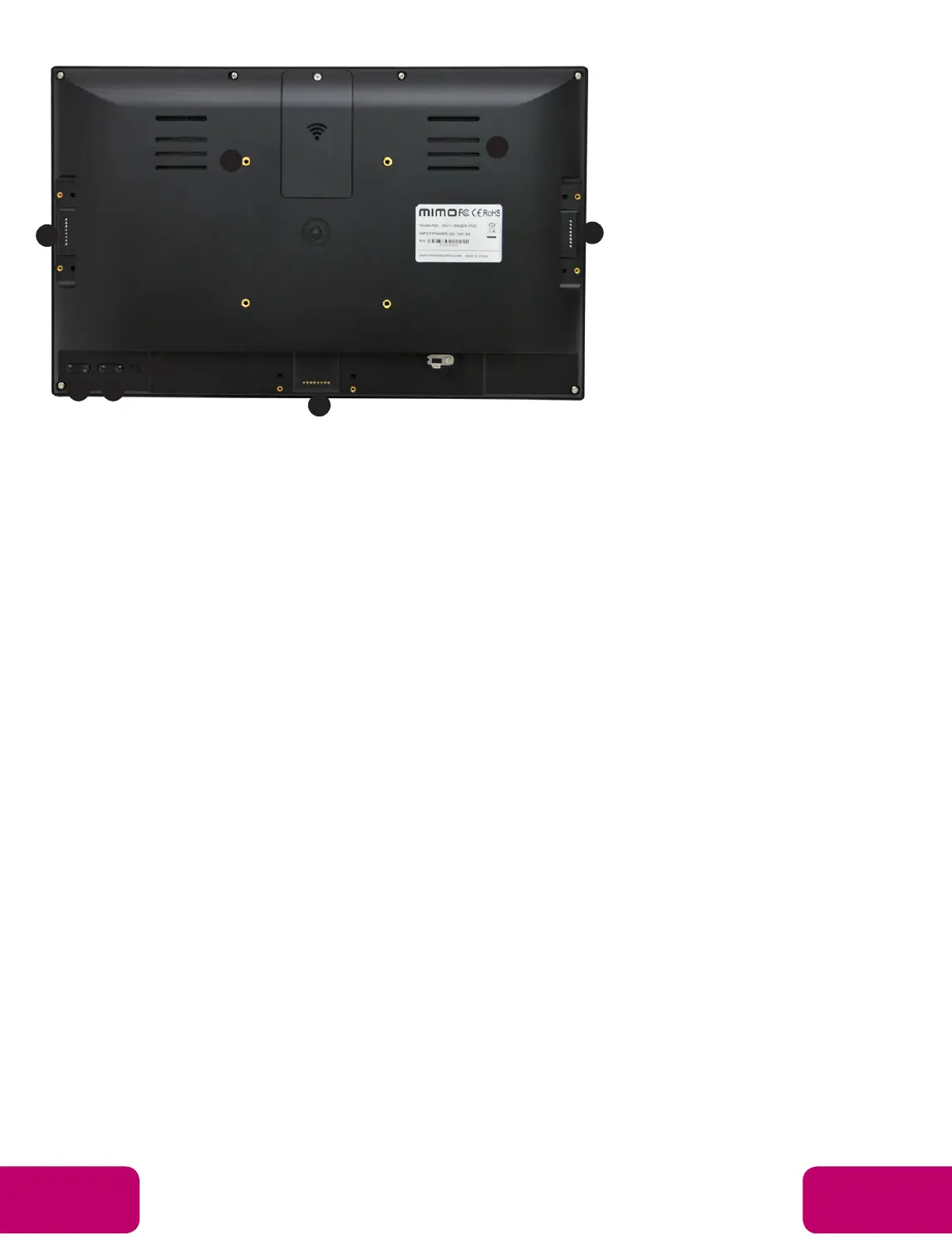

Back

4. Add on Module Slot

9. Volume Up/Down

10. Menu Navigation

11. Menu

12. Vesa 75 Mount

13. Speakers

14. GPIO
