62 63ENGLISH

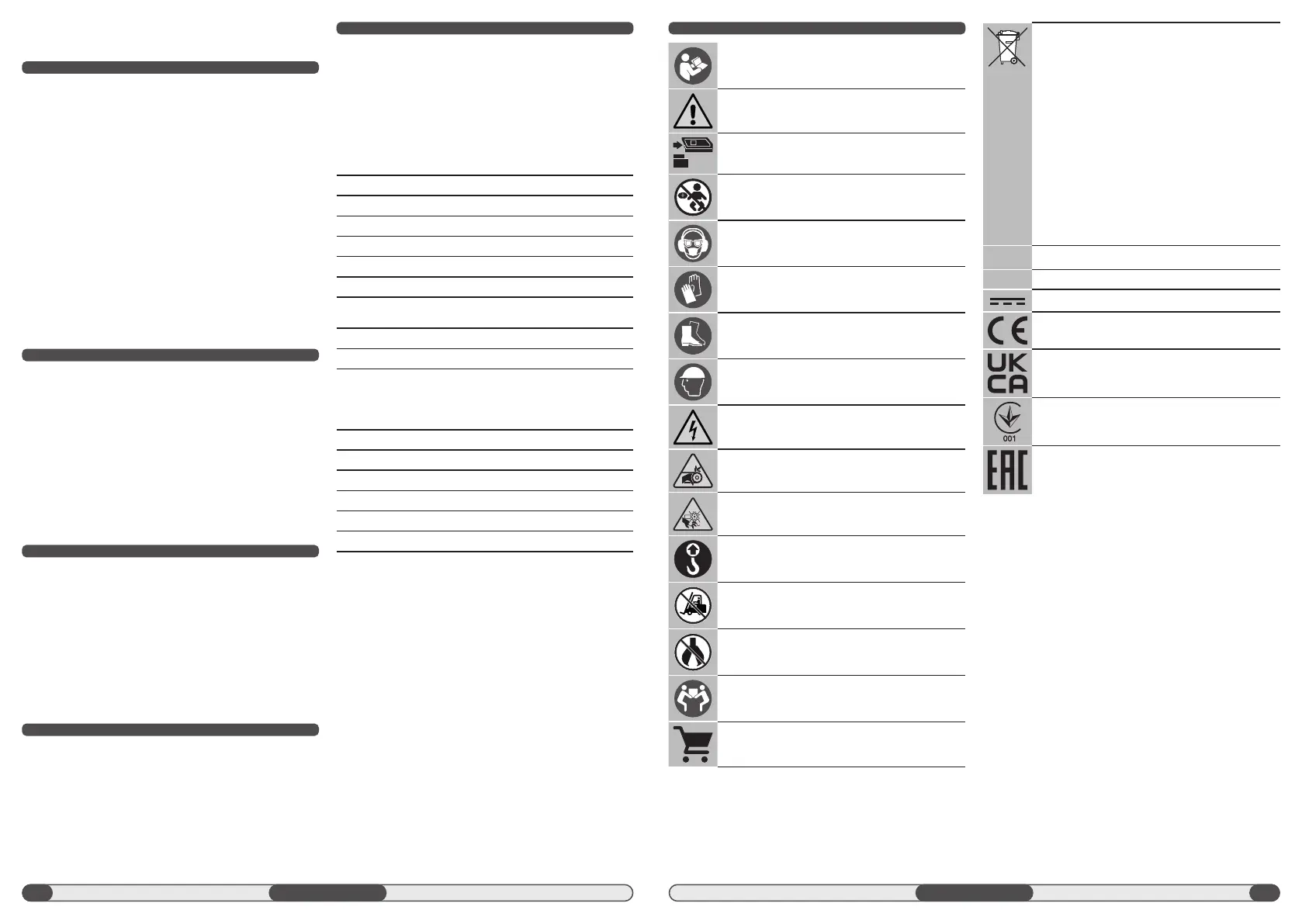

SYMBOLS
Please read the instructions carefully before starting
the machine.
CAUTION! WARNING! DANGER!
Remove the battery pack before starting any work on
the machine.
Do not swallow the coin cell battery!
Always wear ear protectors!
Wear a suitable dust protection mask.
Always wear goggles when using the machine.
Wear gloves!
Always wear protective clothing and footwear.
Wear head protection.
Warning. Danger of electric shock.
Keep body parts away from moving parts.
WARNING – Keep hands and feet away from the
blades. Disconnect battery before maintenance.
Use lifting point.
Do not lift with forks.
Do not lift with excavator bucket.
This machine requires allways two person for
transportation!
Accessory - Not included in standard equipment,
available as an accessory.
Do not dispose of waste batteries, waste electrical and
electronic equipment as unsorted municipal waste.
Waste batteries and waste electrical and electronic
equipment must be collected separately.
Waste batteries, waste accumulators and light sources
have to be removed from equipment.
Check with your local authority or retailer for recycling
advice and collection point.
According to local regulations retailers may have an
obligation to take back waste batteries and Waste
electrical and electronic equipment free of charge.
Your contribution to re-use and recycling of waste
batteries and waste electrical and electronic equipment
helps to reduce the demand of raw materials.
Waste batteries, in particular containing lithium and
waste Electrical and electronic equipment contain
valuable, recyclable materials, which can adversely
impact the environment and the human health, if not
disposed of in an environmentally compatible manner.
Delete personal data from waste equipment, if any.
n
0
No-load speed
V
Voltage
Direct Current
European Conformity Mark
British Confomity Mark
Ukraine Conformity Mark
EurAsian Conformity Mark
ENGLISH
• Do not transport batteries that are cracked or leak.
Check with forwarding company for further advice.
FUNCTIONAL DESCRIPTION
1 Throttle
2 Pitch adjustment knob
3 Grip adjustment lever
4 Hoist hook
5 ONE-KEY battery compartment
6 Battery lock
7 Tie down / lifting point
8 Belt guard
9 Oil plug
10 Blade
11 Pan
12 Quick stop handle
13 On/Off switch
14 Battery pack
15 Tie down / lifting point
16 Guard ring
17 Thermal indicator
18 Arm button
19 ONE-KEY indicator
20 Fuel gauge
LIFITNG THE MACHINE
Use two people whenever it is necessary to lift or carry the machine.
Machine is heavy. Lift with legs, not back.
Always clear the area of obstructions before transporting.
Lift the machine with two hands. Lift from the tie down/lifting points.
Always maintain a fi rm footing.
Remove the battery pack before transportation.
Transporting with lifting device
Do not lift the trowel overhead with a fl oat pan attached, as the pan
could fall off and strike persons working in the vicinity.
Lift the machine a small distance. Check for stability and balance, if
necessary adjust the lifting device.
Do not lift the machine until it is stable.
CLEANING
Do not allow concrete to harden on the machine. Wipe all concrete
off the frame and any other parts of the machine.
Remove the battery before cleaning the tool.
Allow the engine to cool before cleaning. When the engine has
cooled, remove all concrete and foreign debris using a soft brush,
wiping cloth and a mild cleaning detergent. Do not use a high
pressure water jet.
Avoid getting water inside the motor, batterie compartment,
electronics housing or into the on/off switch on the handle.
If you are not going to use the machine for a long period of time,
allow it to dry thoroughly and store it in a clean, dry and dust-free
place.
TRANSPORT
Remove the battery from the machine before transport.
Secure the machine with suitable lashing material when transporting
on a vehicle.
MAINTENANCE
Keep the machine in a proper condition.
• Do not operate the machine if any safety devices or guards are
missing or inoperative.
• Do not operate a machine not functioning correctly.
• Do not operate a machine in need of repair.
daily
before
after
operation
All safety devices and guards are in place
and in working order.
x
All controls function correctly. x
Visual inspection of all parts for damage. x
Check that all connections are tight. x
Dead-man switch operation x
Pitch control assembly x
Battery - visual check for damage. x
Battery charger - visual check for
damage.
x
Clean the machine and blade x
Clean the battery. x
Frequency
Lubricate pitch control Every 1 month or 50 hours
Check drive belt Every 3 months or 100 hours
Check blade arms Every 3 months or 100 hours
Check gearbox oil level Every 3 months or 100 hours
Replace drive belt Every 12 months or 300 hours
Lubricate blade arms Every 12 months or 400 hours
Change gearbox oil Every 12 months or 400 hours
See the machine’s Service Parts List Bulletin at www.milwaukeetool.
eu for the recommended MILWAUKEE oil or grease part number.
Use only Milwaukee accessories and Milwaukee spare parts. Should
components need to be replaced which have not been described,
please contact one of our Milwaukee service agents (see our list of
guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please
state the machine type printed as well as the six-digit No. on
the label and order the drawing at your local service agents or
directly at: Techtronic Industries GmbH, Max-Eyth-Straße 10,
71364 Winnenden, Germany.
