Attaching the HAMMERVAC™ to the

Rotary Hammer

These HAMMERVAC™ Dust Extractors are for use

with dedicated rotary hammers. Refer to the Speci-

cations chart for compatible tools.

1. WARNING! Remove battery to avoid starting the tool.

2. Slide the body of the rotary hammer onto the dust

extractor rails. The dust extractor will click into

place when properly attached.

Installing/Removing the Bit

Slide the bit through the nozzle and then install into

the tool according to the tool manufacturer's instruc-

tions. For best results, use a bit 6" in length or shorter.

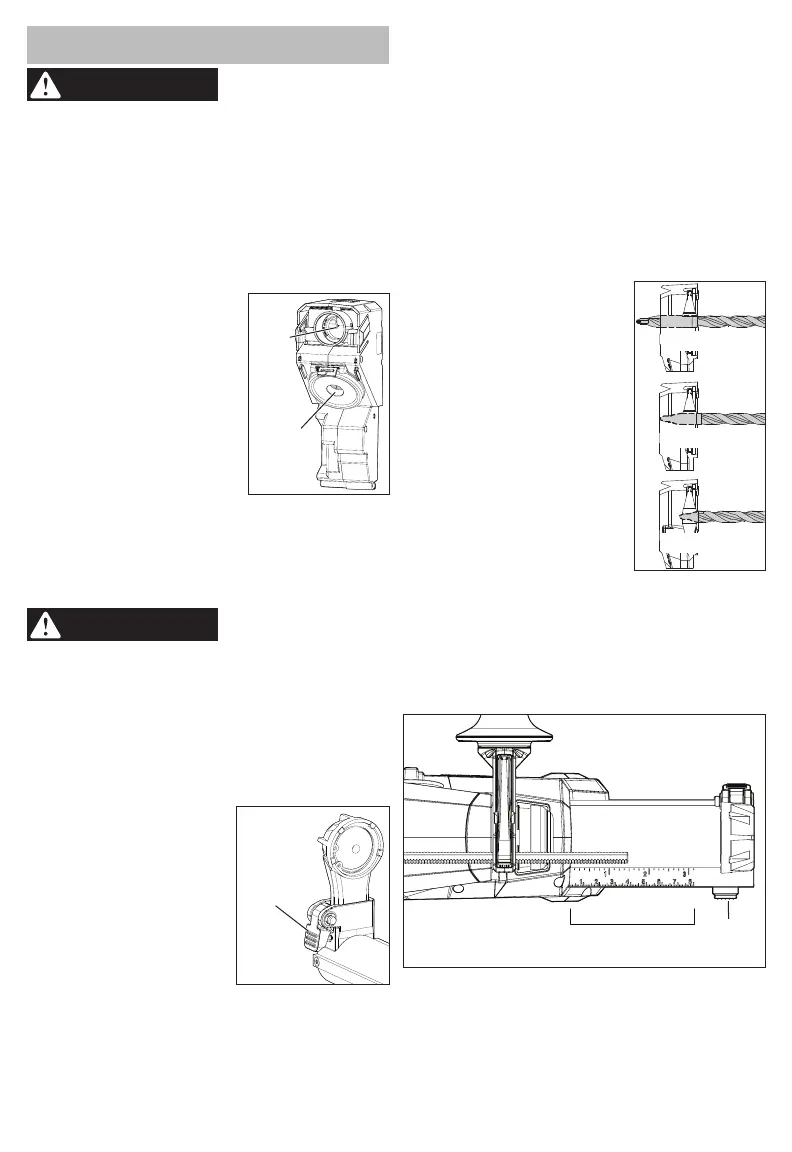

Fitting the HAMMERVAC™

to the Tool and Bit

For proper suction and depth

Correct

Incorrect

control, position the nozzle as-

sembly so the bit is ush with the

forward face of the nozzle:

1. Press and hold the tool and bit

depth gauge button.

2. Push in the nozzle assembly

until the bit is ush with the

front face of the nozzle.

3. Release the tool and bit depth

gauge button.

NOTE: Fully extend the

HAMMERVAC™ before storing

to preserve spring life.

Setting the Drilling Depth

1. Fit the HAMMERVAC™ to the tool and bit.

2. Press and hold the depth gauge button and slide

the depth gauge to the desired depth. The drill-

ing depth is the last visible measurement shown

when viewed from the top of the tool. To ensure

the HAMMERVAC™ is properly set to the tool,

bit, and desired depth, always drill a test hole.

Drill depth

Depth

gauge

button

ASSEMBLY

WARNING

Always remove battery

pack before changing

or removing accessories. Only use accessories

specically recommended for this tool. Others

may be hazardous.

Do not use tool without dust box and HEPA lter

in place.

Removing/Installing the Dust Box

and HEPA Filter

To remove the dust box:

1. WARNING! Remove battery to avoid starting the tool.

2. Squeeze the dust box latches.

3. Pull the dust box away from the HAMMERVAC™.

4. Empty debris by holding away

Dust

box

port

HEPA

lter

from the user’s face and tap-

ping dust box into a trash

can, pail, or other reasonable

container.

5. If necessary, pull the HEPA

lter away from the dust box

and tap clean. Do not clean

with water or compressed

air. After about 1500 holes or

loss of suction, discard and

replace HEPA lter (Cat. No.

49-90-0910).

To install the dust box:

1. Slide the dust box into the body of the

HAMMERVAC™.

2. The dust box latches should snap into place.

NOTE: Do not operate the HAMMERVAC™ without

the dust box and HEPA lter in place. Dust box cannot

be installed without HEPA lter.

WARNING

To reduce the risk of

injury, when working

in dusty situations, wear appropriate respiratory

protection or use an OSHA compliant dust extrac-

tion solution.

Keep lter clean. E󰀩ciency of the HAMMERVAC™

is largely dependent on the lter. A dirty lter will

reduce the air ow and overall e󰀩ciency of the

system. Do not clean with water or compressed

air. Remove from dust box and tap clean.

Installing/Removing Nozzle

Replace the nozzle:

Nozzle

adjustment

lever

• After drilling about 1500

holes,

• When the nozzle bit brush

shows signs of wear,

• When suction is reduced,

• When dust escapes through

the nozzle bit brush during

use

To replace the Standard (Cat.

No. 14-52-0105 and Large

Cat. No. 14-52-0110) nozzles,

pull the nozzle adjustment lever up to the open

position and pull out nozzle from the lower nozzle

assembly. Slide the new nozzle into the lower nozzle

assembly and push the nozzle adjustment lever down

to the closed position.
