PRODUCT INSTALLATION
Use Of Oil Filled Radiator
Figure 1
Figure 2 Figure 3

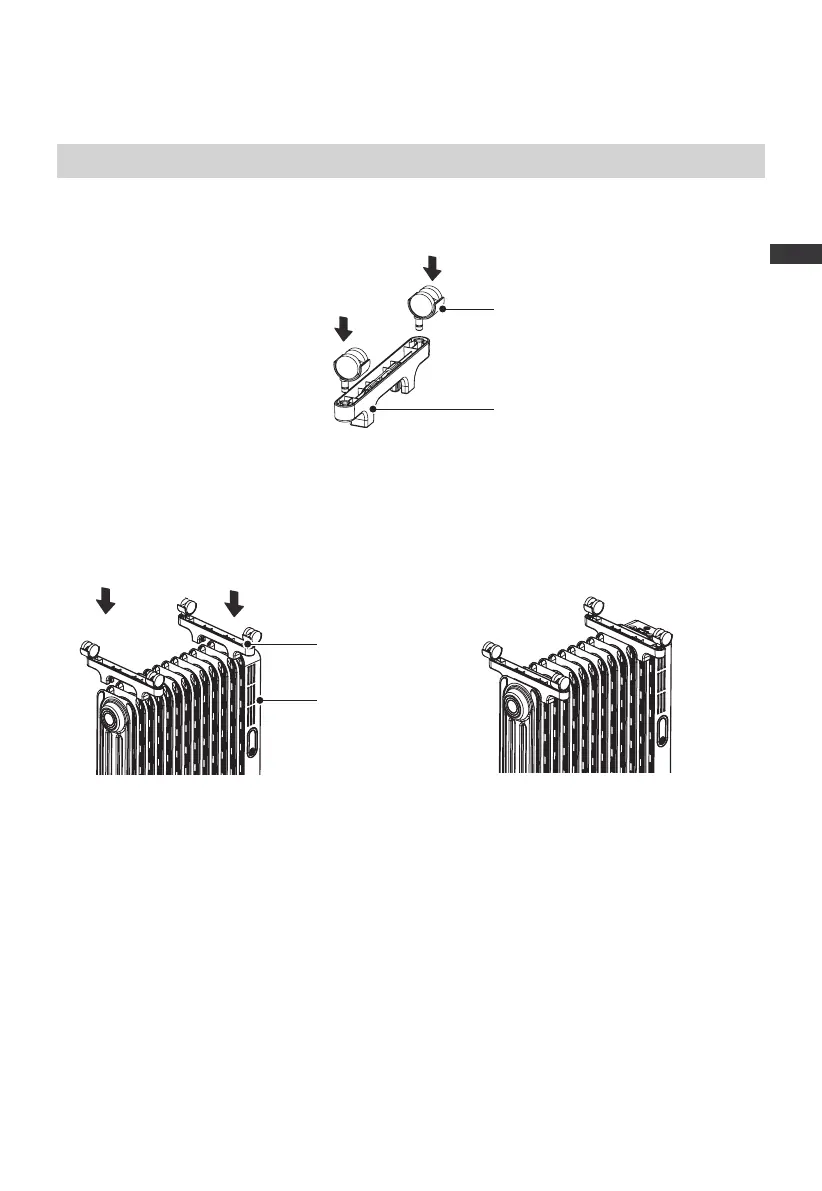

1 Remove the feet from intermediate heat sink and remove the wheels from the foam.
As shown in Figure 1, the wheels are pressed into the holes of feet.
2 As shown in Figure 2 and figure 3, first turn the heater body upside down with the
bottom facing up, align the mounting groove of the feet assembly after installing the
wheel and clamp it on the second heat sink; Another set of feet assembly mounting
groove is aligned and clamped on the penultimate heat sink.
3 After the heater is firmly installed, put it right and the wheel can land on the ground.
Wheel
Feet
Feet assembly
Control box
